Astro-Med Dash 10 Ten Channel Thermal Chart Recorder

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Astro-Med Dash 10 Ten Channel Thermal Chart Recorder
Enlarge Image

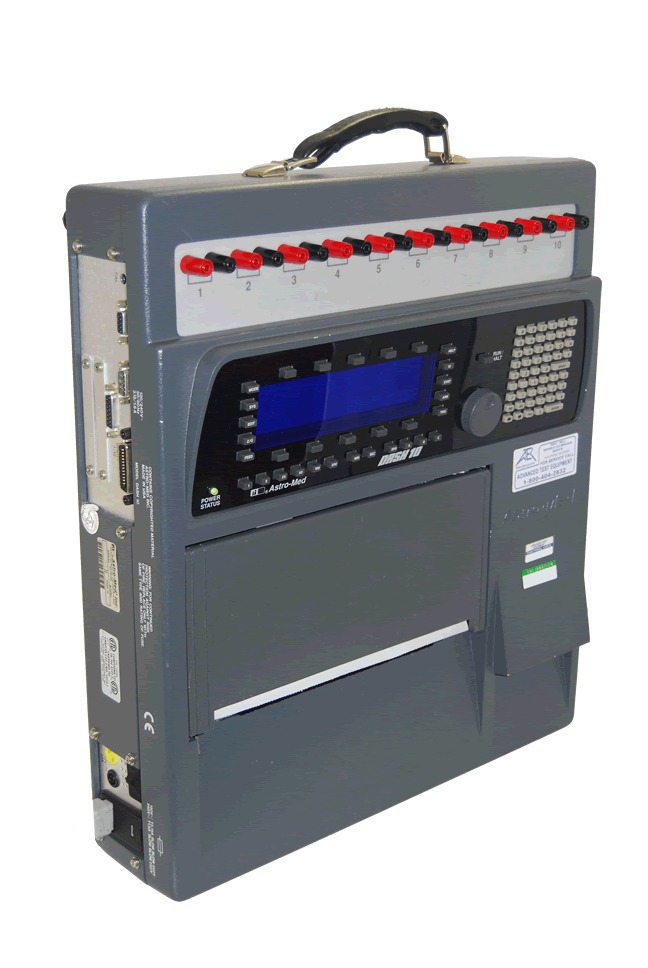

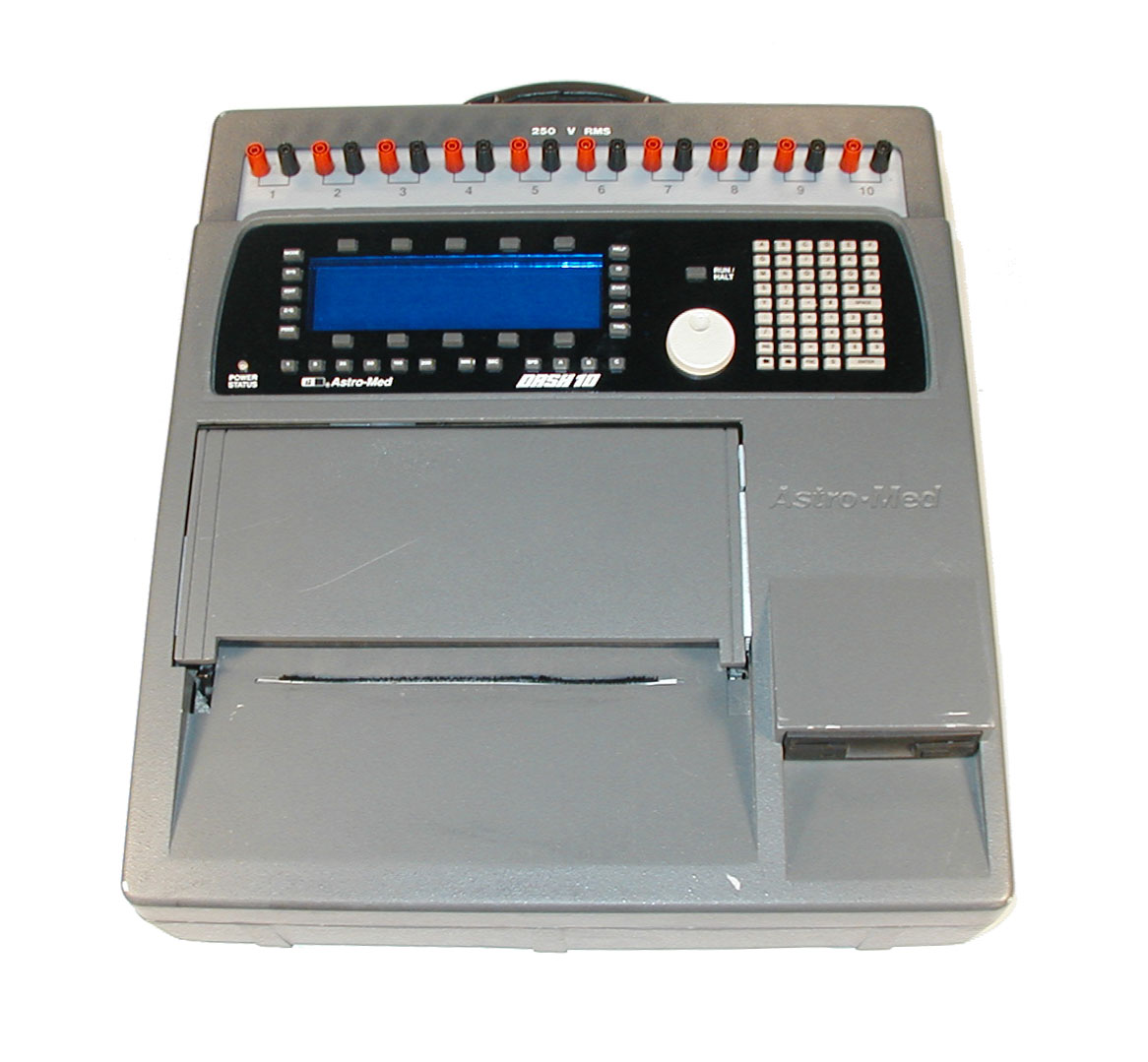

Astro-Med Dash 10 Ten Channel Thermal Chart Recorder Astro-Med Dash 10 Ten Channel Thermal Chart Recorder
Astro-Med Dash 10
Request Quote Print Page
Manual Specifications Brochure Supplemental Document

The Astro-Med Dash 10 thermal Chart Recorder is used for recording 10 to 30 waveform channels. Its internal battery power gives you true portability, allowing you to pick it up and carry it anywhere. You get 11-inch wide, 300 dot per inch "laser quality" charts. You can view waveforms in real time on a bright, high response vacuum fluorescent (VF) monitor while recording or during setups.

The Astro-Med Dash 10 allows you to input full scale signals from 50 mV to 500 V peak (250 V RMMS) at frequencies to 25 kHz without the need for external signal conditioners. You can capture up to 512 kSamples of data per channel to the huge internal RAM memory for up to 30 channels simultaneously. Also, the 1.44 MB DOS compatible floppy drive makes recorder setups, data storage and software upgrades quick and easy.

Astro-Med Dash 10 Specs
Input Type Single-ended isolated
User Input Connector Guarded Binding Posts
Input Range 50 mVfs to 500 Vfs
Input Coupling DC
Input Impedance 1 MW
Input Isolation 1500 VACrms for 60 seconds, channel to channel, channel to chassis
Maximum Input 250 Vrms, 500 VDC, 500 Vpeak
CMR (IMR) Greater than 95 dB @ 60 Hz
Common Mode Voltage 250 Vrms
Frequency Response -1 dB at 12 kHz
-2 dB at 18 kHz
-3 dB at 22 kHz
A/D Sample Rate 200 kHz filer disabled
Filter Type 2 pole 12 dB/octave
Chart Speed Accuracy ±2%
Zero Suppression Range ±500 V or ±5 V on mV setting
Zero Suppression Accuracy ±2% of zero suppression setting
Zero Position Accuracy ±0.2%
Timer Speeds 0.01 to 0.09 (0.01 second increments)
0.1 to 0.9 (0.1 second increments)
1.0 to 9.0 (1.0 second increments)
10.0 to 60.0 (5.0 second increments)
Internal Event Markers 10 interchannel plus 1 system
Internal Annotation Buffers 30 128-character buffers
1 28-character system log buffer
1 128-character on-demand buffer
Host Interface RS-232, Xon/Xoff or hardware; GPIB standard
Some Dash 10 models may include Data Capture Memory: 6 Megasamples (opt. 10 chnls)
Stacked Captures: 2 - 8 captures
Sample Rates 250 kHz, 125 kHz, 50 kHz, 25 kHz, 10 kHz, 5 kHz, 2.5 kHz, 1 kHz, 500 Hz, 250 Hz, 100 Hz, 50 Hz, 25 Hz, 10 Hz, 5 Hz
Weight 32 lbs., 36 lbs. with battery pack
