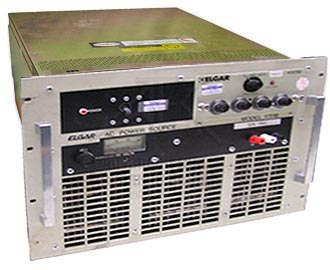

Elgar 1751B AC Power Supply

Elgar 1751B Power Supply
Enlarge Image
Elgar Power Supplies 1751B
Request Quote Print Page
Manual

Features:

  • Output Power: 0-1750VA, Single Phase
  • Power Factor: Unity to ±.7
  • Output Voltage: 0-32 VAC, 0-130 VAC, 0-260 VAC
  • Frequency Range: 45 Hz to 5 kHz
  • Output Distortion:
    • Less than .9% 45 Hz to 5 kHz
    • Less than .5% 100 Hz to 1 kHz
  • Output Noise: 70 dB below full output
  • Output Protection: Overload and short circuit protected, output recovers immediately when overload or short is removed.
  • Triple-Phase Input Power:
    • 230 L-L
    • L-N
    • 208 L-L
