Hipotronics HD106 Hipot Insulation Tester
Enlarge Image

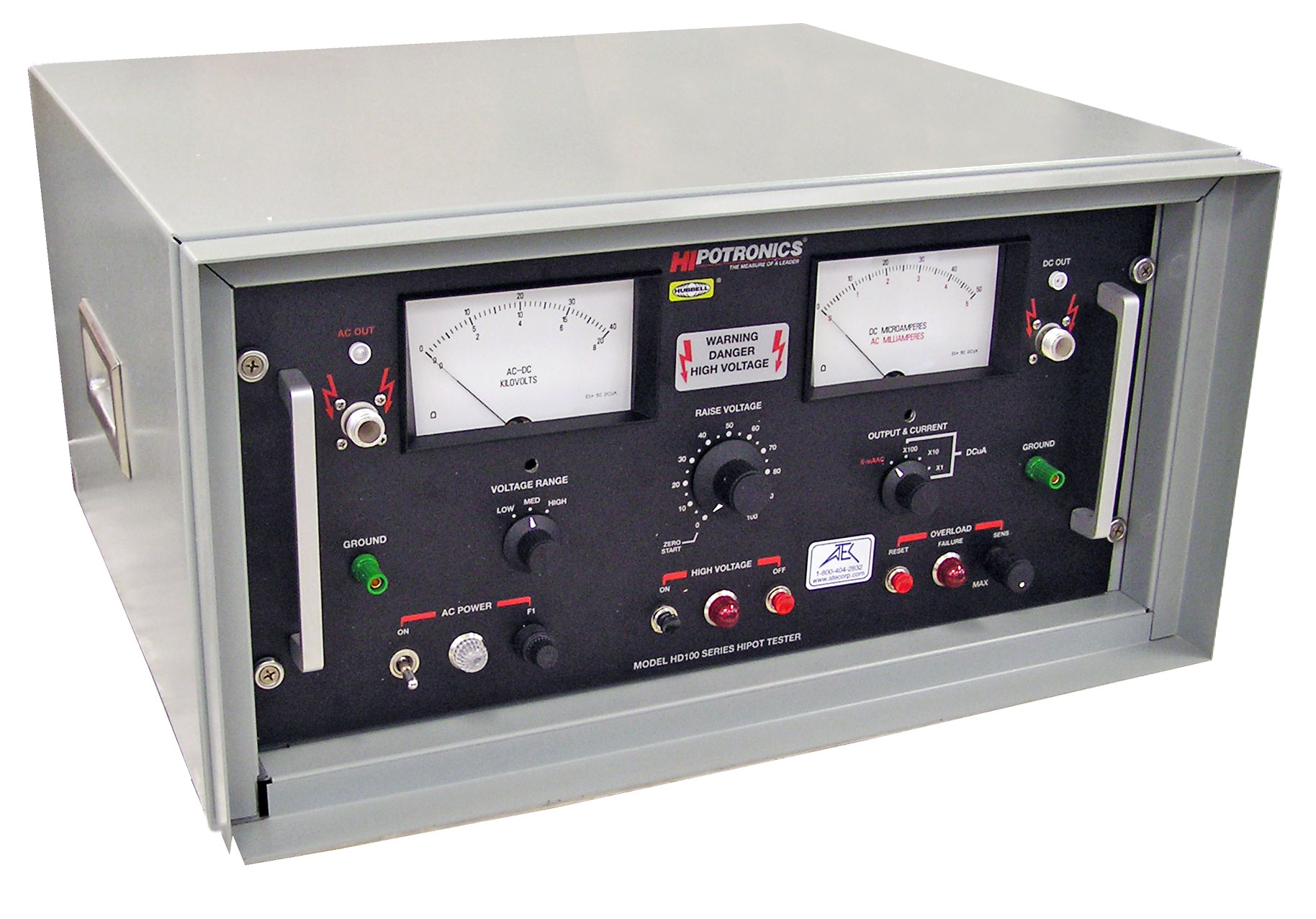

Hipotronics HD106
Request Quote Print Page
HD106 Datasheet Specifications

The Hipotronics 106 AC/ DC Hipot Insulation Testers are accurate, durable instruments designed to perform hipot tests on all types of electrical products, systems, and components. They are designed to perform AC and DC dielectric tests.

  • Two Tests in One Unit - Eliminates need for purchasing separate AC and DC Hipot
  • Meets Industry Specifications - Tests to most UL, CSA, VDE, IEC, MIL, BSI, BABT and other industry standards for Dielectric Withstand Testing
  • Rack Mountable - Easy installation into a 19" rack
  • NIST Traceability - All meters are traceable to the National Institute of Standards and Technology
Hipotronics HD106 Specs
Output Voltage 0 - 5.0 kV AC; 0-3.0 kV DC
Voltmeter Ranges 0-0.3/1.2/3.0 kV
Overload Sensitivity Adjustable from 0.5 mA to 5.5 mA
Output Current Meter Range 0 - 5 mA AC, 0-50/500/5000 µA DC
Terminations High voltage lead - 5 ft. long shielded high voltage test lead of RG58/U with alligator clip. Ground lead - 5 ft. long insulated test lead with alligator clip
Net Weight 75 lb (34 kg)
Hipotronics HD106 Applications
  • High voltage tubes
  • Capacitors
  • Transformers
  • Wire and cable
  • Coils and chokes
  • Motors and generators
  • Connectors
  • Medical devices
  • Appliances
  • Switches and relays
