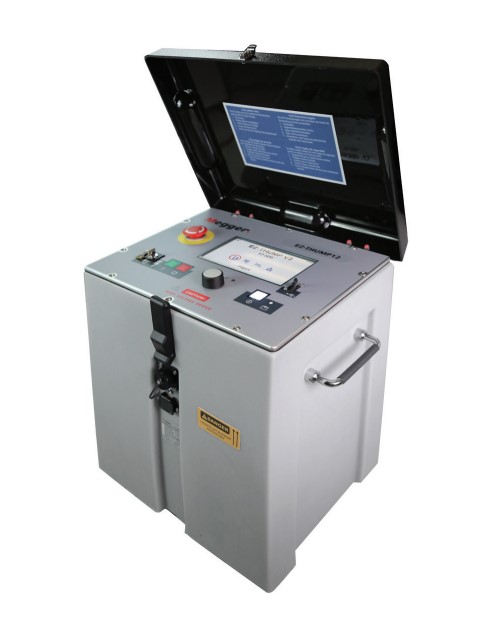

Megger EZ-THUMP Portable Cable Fault Locator

Formerly known as the HDW EZ-THUMP, the EZ-THUMP4 is a compact, battery and AC line operated cable fault location system. This lightweight, rugged system has a maximum output of 12 kV and a 7-inch TFT color LCD display. With a IP53 protection rating, a memory capacity of 100 traces, and more, this model is ideal for automatic and effective fault locating.

Product Info Related Products

Model	Formerly HDW EZ-THUMP EZ-THUMP12
Testing Output	0 – 12 kV
Operating Temperature	-4°F – 122°F (-20°C – +50°C)
Storage Temperature	-12°F to 160°F (-25°C – +70°C)
Memory	100 traces
IP Rating	IP53 (with top open)
Battery	Internal 24 V NiMH Battery 5 AH Approx. 30 – 60 mins of surge/thumping Approx. 3 hours recharge time
Display	7 in (17.78 cm) HiBrite TFT Color LCD 1280 x 800 pixel
Dimensions	14 x 11 x 25 in (35.5 x 28 x 64 cm)
Weight	71 lb. (32 kg)

Compact, lightweight, all-in-one, rugged portable cable fault locating system
Battery and AC line operation with a field-replaceable battery
Automatic cable end, fault location, and sectionalizing (optional in certain markets)
Single-stage capacitor surge discharge: 500 J @ 12 kV
0 to 12 kV HV DC test
F-OHM safety feature to ensure safe grounding
7” HiBrite color display for outdoor visibility
