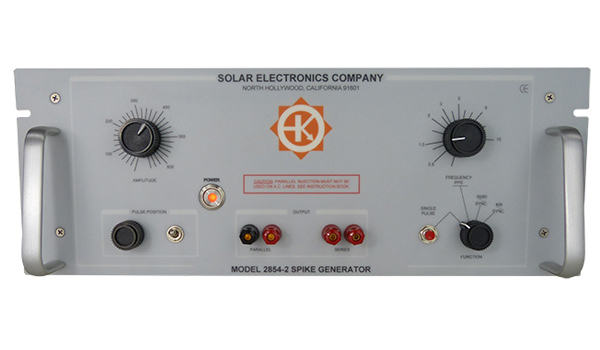

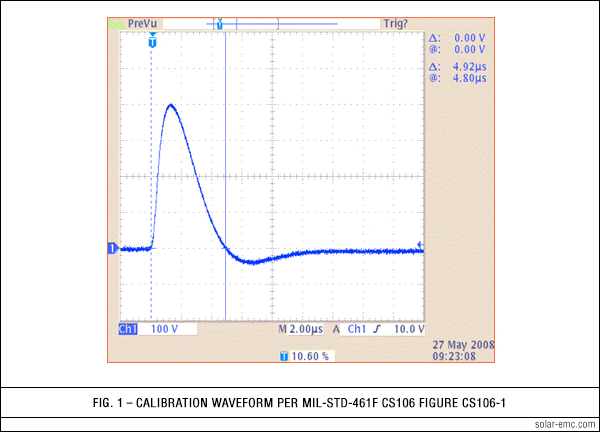

The Solar 2854-2 Spike Generator is an ideal transient generator to conduct EMC testing on equipment that needs to meet military test standards. The 2854-2 transient generator is designed to meet the MIL-STD-461F CS106 military test standard, testing for conducted susceptibility and immunity to RF interference. The spike generator can provide output levels ranging from 10 V to 400 V and a flexible repetition rate from 0.8 to 10 pulses per second. The Solar 2854-2 Spike Generator also features an impressive 1.5 μS ± 0.5 μS rise time into 5 Ω, with the output dropping to 0 in 5 µS ± 22%. Thanks to two sets of output terminals, the generator is capable of a parallel or series injection into AC power lines, with parallel injections safe for use on DC lines.
