EMC Partner MIL3000 Military Test System

Discontinued

Click below to see the newest model!

View The EMC Partner MIL-MG3

The EMC Partner MIL3000 Military Test System is a military and avionic modular test system offering technicians their choice of couplers, which allow easy expansions to fulfill an array of requirements. These test systems are stable, precise and quick, with pulse reproducibility during the test cycle, repeatable tests over long periods and minimum setup and calibration time.

EMC Partner MIL3000 models are designed to fulfill the MIL-STD-461 testing standard, specifically the CS106, CS115 and CS116 requirements, and possess modular capabilities for a variety of coupler parts. Perform CS115 or CS116 tests either simultaneously or separately via the CN-BT6 universal coupler, one of the plug-in modules. Modular technology allows for the implementation of impulse tests as well, which can fulfill DO-160 sections 17 and 19 requirements. Another specialist coupler, one of many the EMC Partner MIL3000 offers, is the CN-MIG-BT5, which fulfills standards CS106 and DO-160 section 17.

Rent your EMC Partner MIL3000 today for a fraction of the list price, and choose your modules and accessories from the accessories tab.

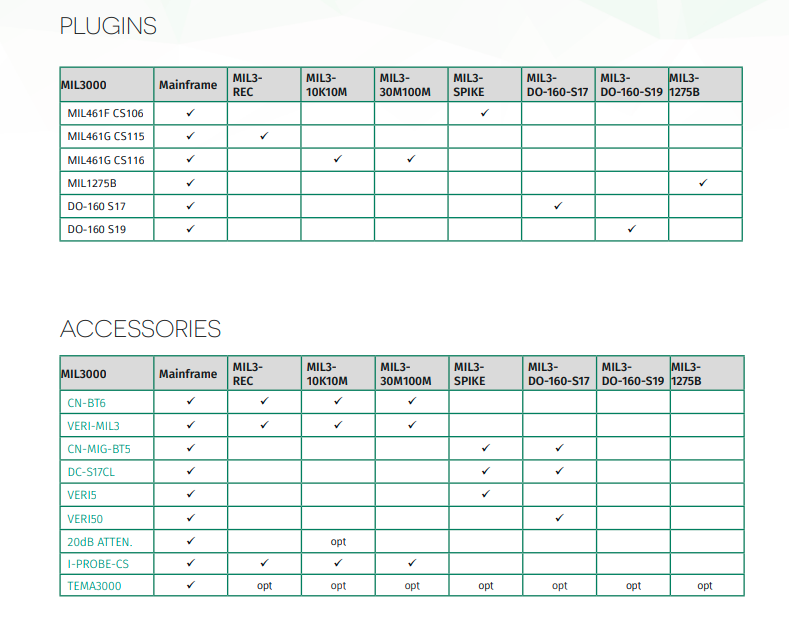

Product Info Available Add-Ons Related Compliance Standards Related Products

Plugin Module	Spec	Description
MIL3-REC	Standard	MIL-STD-461, CS115
	Test level into 100 Ω	1 – 10 A ± 10 % , adjustable
	Waveform	rectangular pulse
	Pulse rise and fall time	< 2 ns
	Pulse duration	≥ 30 ns
	Repetition rate	max. 33 Hz
	Requires	CN-BT6, VERI-MIL3
	Optional	I-PROBE-CS
MIL3-10K10M	Standard	MIL-STD-461, CS116 (10 kHz – 10 MHz)
	Test level into 100 Ω	@ 10 kHz: 0.02 – 0.22 A ± 10 %, adjustable
	Test level into 100 Ω	@ 100 kHz: 0.2 – 2.0 A ± 10 %, adjustable
	Test level into 100 Ω	@ 1 MHz: 1 – 12 A ± 10 %, adjustable
	Test level into 100 Ω	@ 10 MHz: 2 – 12 A ± 10 %, adjustable
	Waveform	damped oscillation@10k,100k,1MHz,10MHz ±10%
	Damping factor (Q)	15 ± 5 for all frequencies
	Repetition rate	max. 2 Hz for all frequencies
	Coupler for all frequencies	CN-BT6
	Calibration fixture all freq	VERI-MIL3
	Optional	I-PROBE-CS, 20dB ATTENUATOR
MIL3-30M100M	Standard	MIL-STD-461, CS116 (30 MHz – 100 MHz)
	Test level into 100 Ω	@ 30 MHz: 2 – 12 A ± 10 %, adjustable
	Test level into 100 Ω	@ 100 MHz: 1 – 6 A ± 10 %, adjustable
	Waveform	damped oscillation@30MHz,100MHz ±10%
	Damping factor (Q)	15 ± 5 for all frequencies
	Repetition rate	max. 2 Hz for all frequencies
	Coupler for all frequencies	CN-BT6
	Calibration fixture all freq.	VERI-MIL3
	Optional	I-PROBE-CS
MIL3-SPIKE	Standard	MIL-STD-461F, CS106
	Output impedance	< 2 Ω
	Test level into 5 Ω	100 – 500 V ± 10 % , adjustable
	Waveform	voltage spike
	Pulse rise time	1.5 µs ± 0.5 µs
	Pulse front time	3.5 µs ± 0.5 µs
	Pulse duration	5 µs ± 22 %
	Voltage sag amplitude	≤ 120 V @ 400 V test level
	Voltage sag duration	≤ 20 µs @ 400 V test level
	Repetition rate	max. 10 Hz
	Synchronization	0 – 359° ± 5°, 1° step
	Requires	CN-MIG-BT5, VERI5, DC-S17CL
MIL3-DO-160-S17	Standard	DO-160 Section 17
	Output impedance	50 Ω ± 10 %
	Test level into 50 Ω	50 – 1200 V ± 10 % , adjustable
	Waveform	voltage spike
	Pulse rise time	1 – 2 µs ± 30 %
	Pulse duration	> 10 µs
	Repetition rate	max. 2 Hz
	Synchronization	0 – 359° ± 5°, 1° step
	Requires	CN-MIG-BT5, VERI50, DC-S17CL
MIL3-DO-160-S19	Standard	DO-160 Section 19 – spikes/burst
	Resistance	175 Ω ± 10 %
	Inductance	1.5 H ± 10 %
	Test level	≥ 600 V
	Waveform	voltage spikes/burst
	Spike repetition period	in the range 0.2 – 10 µs
	Burst total duration	in the range 50 - 1000 µs
	Event repetition	0.1 – 60 s, adjustable
	Test duration	1 – 65535 s
	Included	cables for coupling 0.5 m, 1.0 m, 2.0 m
MIL3-1275B	Standard	MIL-STD-1275B, figure 10
	Test level	100 – 1000 V ±10 %, in open circuit
	Waveform	ring wave
	Rise time 10 – 90 %	< 50 ns
	Oscillation frequency	100 – 500 kHz
	Pulse repetition	max. 2 Hz
	DC	28 V / 30 A
	AC	230 V / 10 A or 115 V / 25 A @ 50/60 Hz

Operating system	EPOS proprietary firmware
Connectivity	ethernet, USB, RS485
Synchronization on signals	40 – 800 Hz
Synchronization source	external, 50 - 280 V
Synchronization angle	0 – 359° ± 5°, 1° step
Trigger out	BNC, max. 15 V
Trigger in mode	auto, manual, external (BNC input)
Polarity	positive and negative, electronic switching
Automatic ramp	test level
