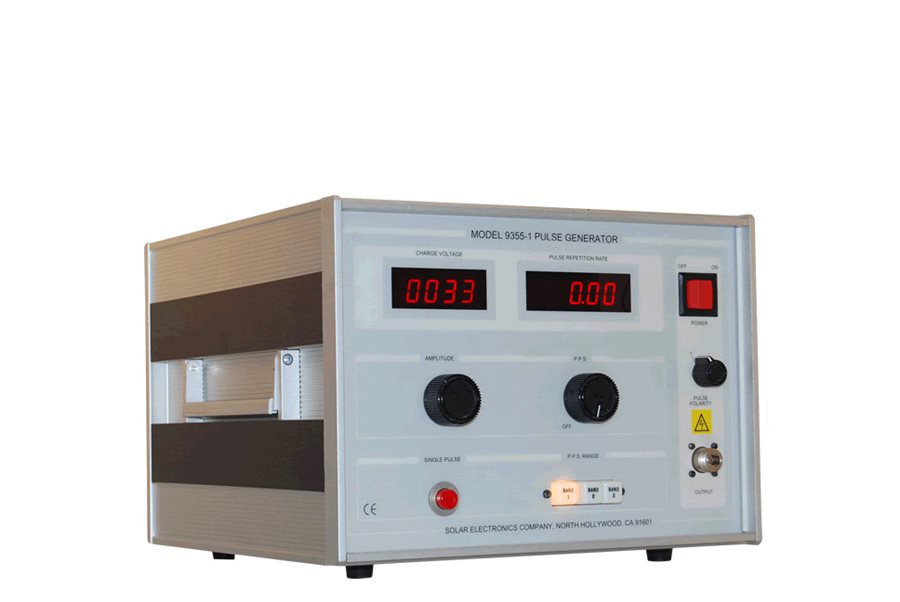

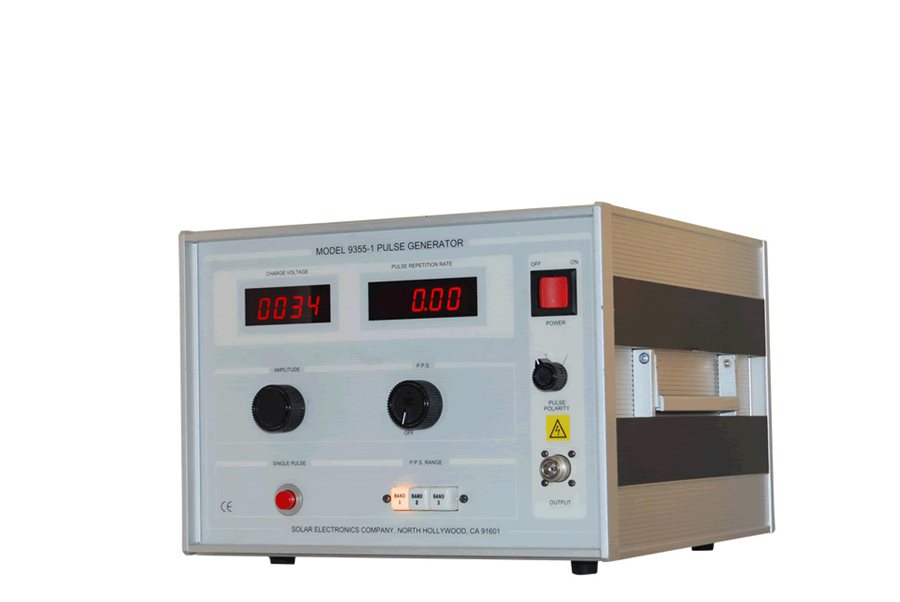

The Solar 9355-1 Pulse Generator is designed to provide impulse excitation by means of an injection probe placed around interconnecting cables or power wires. The unit uses a charged transmission line (50 ohms) to generate a pulse with less than 2 nanoseconds rise and fall time, and duration of approximately 30 nS, calibrated in a 50 ohms fixture to deliver up to 5 amperes at a rate of 30 p.p.s. for one minute as required by MIL-STD-461D/E, test method CS115.


The charged line potential of the Solar 9355-1 is adjustable from less than 2 volts to greater than 2000 volts. The repetition rate is variable from less than 0.6 p.p.s. to greater than 150 p.p.s., or single pulses manually triggered by a panel mounted push button. Digital displays monitor the charging voltage and pulse repetition rate. This unit can also be used as an impulse calibrator to provide an adjustable spectral output up to 150 dB V/MHz over the frequency range of 1 KHz to 10 MHz constant within +1 dB.


Solar Electronics 9355-1 Features
  • Panel-mounted digital meters monitor the adjustable charged line voltage and pulse repetition rate.
  • Adjustable pulse rate from 0.6 p.p.s. to 150 p.p.s., and manual triggering via front panel push button.
  • Charged line output voltage adjustable from 1.0 V to >2000 V
  • Pulse generator with spectral output calibrated in terms of dB V/MHz into a 50 ohms load
Solar Electronics 9355-1 Specs
Charging Voltage Adj. from 0 to 2000 volts
Rise/Fall Time <2 nanoseconds
Duration Time 35 nanoseconds
Pulse Repetition Rate 0.6 p.p.s. to 150 p.p.s.
Polarity ±selectable
Output Load 50 ± j 0 ohms

Spectral Output Specifications:
Frequency Range 1 KHz to 10 MHz
Output Level into 50O Up to 150 dB V/MHz
Output Flatness ±1 dB
