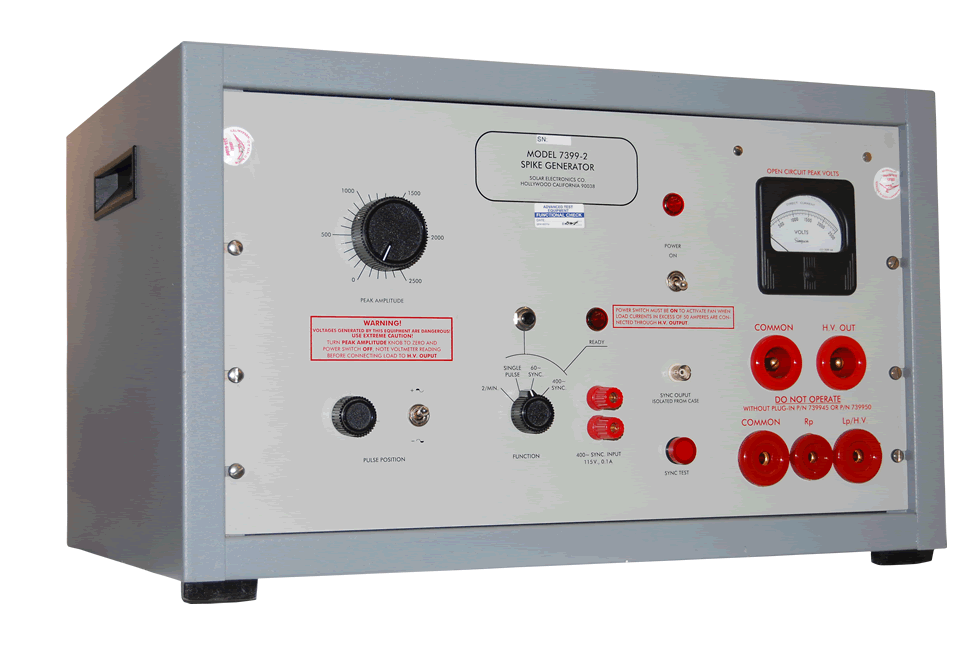

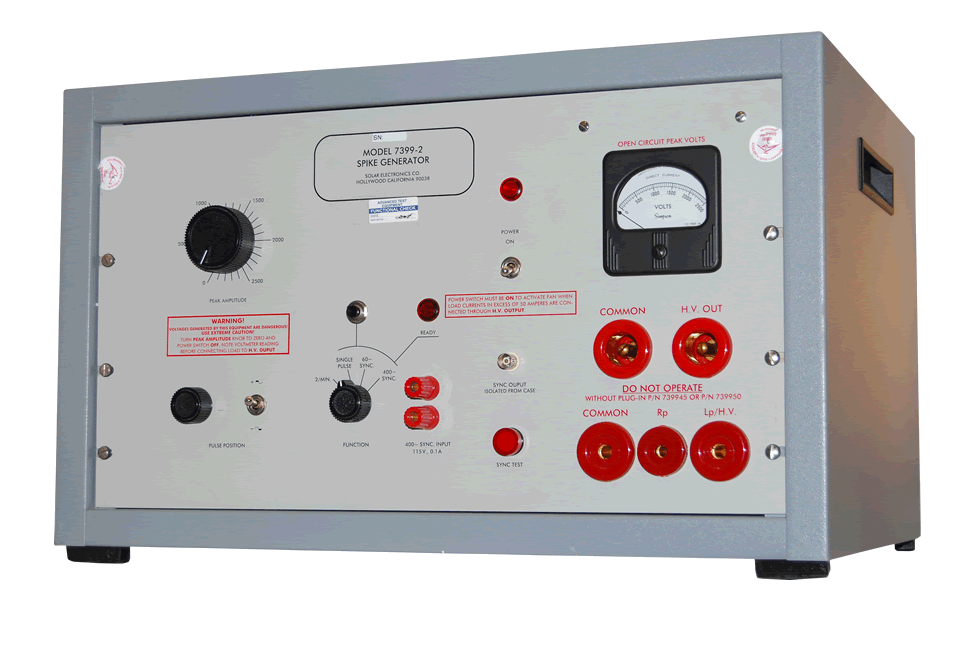

Solar 7399-2 2,500 Volt Spike Generator for MIL-STD-1399

The Solar 7399-2 Spike Generator is a Big Bang unit capable of providing high energy spikes with amplitudes adjustable up to 2500 volts, peak, into low impedance loads, as required by paragraph 4.8.5.4 of MIL-E-16400G and described in MIL-STD-1399 Appendices A, B, C, and D. The shape of the spike approximates Figure 1 of MIL-STD-1399, Section 103.

Product Info Related Compliance Standards Related Products

Specifications	MIL-E-16400G MIL-STD-1399
Peak Amplitude	No Load:100-2500 V 0.5 ohm Load: 100-2000 V
Rise Time	No Load: ≈1 μS 0.5 ohm Load: ≈2 μS
Duration to 50% of Peak	No Load: ≈50 μS 0.5 ohm Load: ≈31 μS
Duration to Zero Crossover	No Load: ≈100 μS 0.5 ohm Load: ≈77 μS
Repetition Rate	2 pulses per minute
Phase Adjustment	Spike position adjustable from 0 degrees to 360 degrees on 50, 60 or 400 Hz sine wave.
Internal Impedance	Less than 0.1 ohm
Peak Output Power	8 Megawatts into 0.5 ohm load
Power Current in Series Injection Mode	Handles up to 100 amperes of current at power frequencies
Power Requirements	115 volts 60 Hz, 2.0 amperes (230 volts 50 Hz, 1.0 ampere available)
Size	21.06" wide, 12.56" high, 15.50" deep
Weight	70 lbs

Modes of operation

Meets MIL-E-16400G
Meets MIL-STD-1399
Repetitive spikes up to 2500 volts peak at two pulses per minute.
Single non-synchronous spike actuated by a push button on the panel.
Sync functions provide for placing the spike on the power frequency waveform of 50, 60 or 400 Hz power lines. The spike can be moved to any point of the sine wave from 0 to 360°

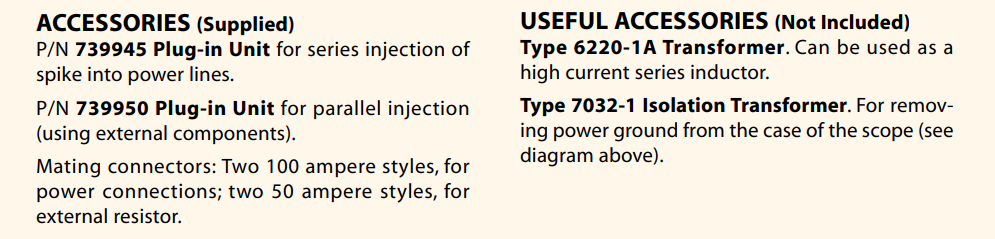

Supplied
P/N 739945 Plug-in Unit	For series injection of spike into power lines.
P/N 739950 Plug-in Unit	for parallel injection(using external components)
Not Included
Type 6220-1A Transformer	Can be used as a high current series inductor
Type 7032-1 Isolation Transformer	For removing power ground from the case of the scope (see diagram above)
