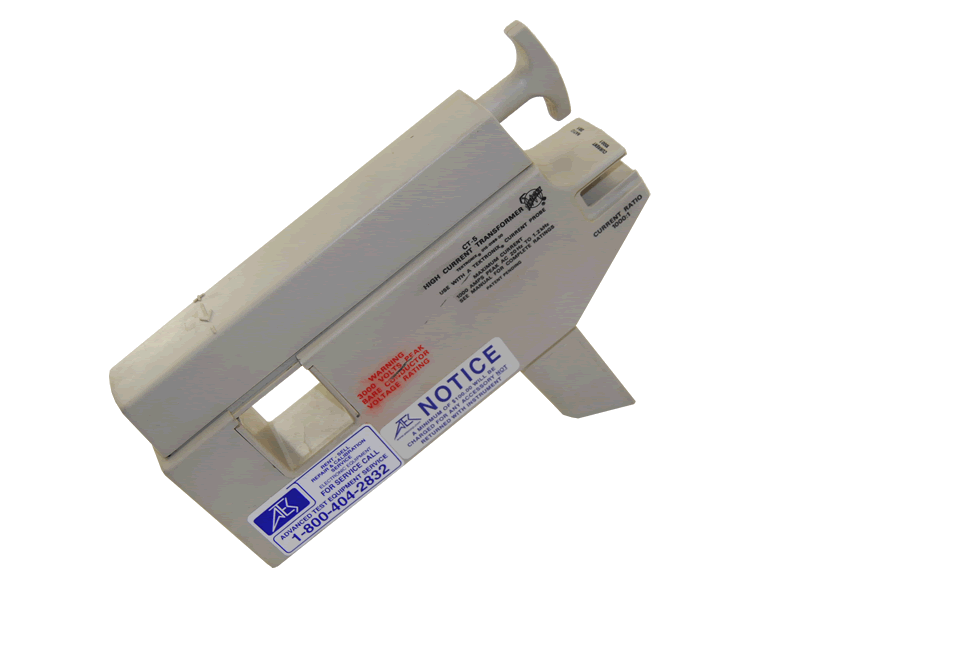

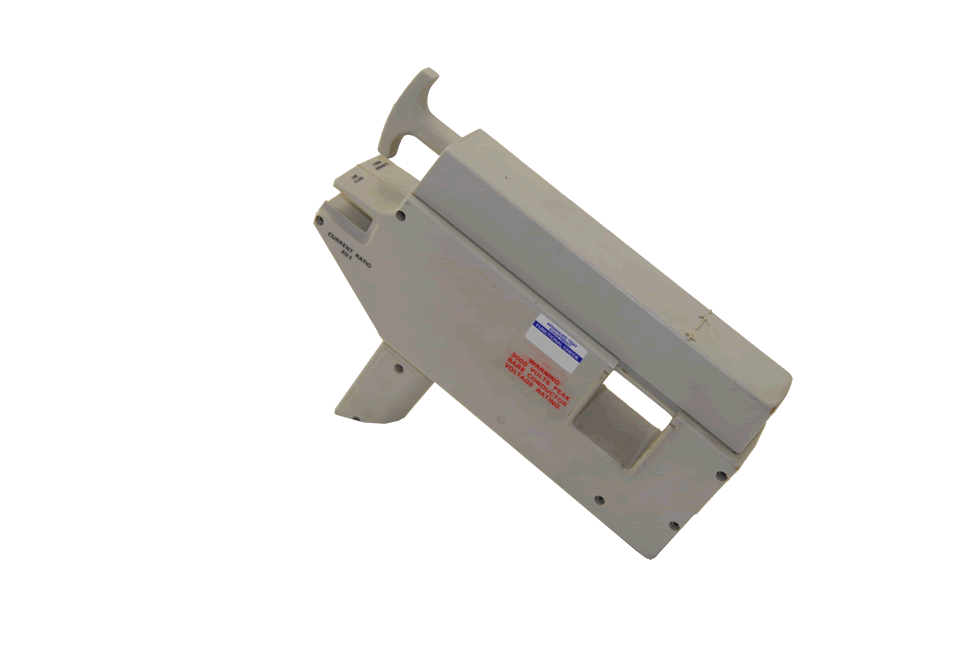

Tektronix CT5 Current Probe

Tektronix CT5 Current Probe
Enlarge Image
Tektronix CT5 Current Probe Tektronix CT5 Current Probe Tektronix CT5 Current Probe
Tektronix Test Equipment CT5
Request Quote Print Page
Datasheet
20 Hz - 1.2 kHz, 1000A, <1.5" Conductor Diam. Current Probe

Tektronix Test Equipment CT5 Specs
Physical Characteristics
Dimensions mm in
Width 57 23
Height 241 9.5
Depth 266 10.5
  • 1.5 inch diameter conductors
  • Measurements on bare conductors to 3000 V
  • Nullifies Dc effects to 300 A with Dc Bucking Coil
  • Pulsed Currents to 50 kA
  • Clip-on high current transformer that extends the measurement capability of the Tektronix P6021 and A6302 clip-on probes.



Characteristics of the CT-5 using either the A6302/AM503 or P6021/134 combinations:


Rise Time - 17.5 ns or less


Insertion Impedance - <= 20 µ ohms at 60 Hz; 20 m ohms at 1 MHz.


Current Range - 20 mA/div to 100 A/div with A6302/AM503, and 20 mA/div to 20 A/div with P6021/134 (20:1 step down ratio); 1 A/div to 5 kA/div with 6302/AM503, 1 A/div to 1 kA/div with P6921/134, (1000:1 step down ratio).


Maximum Voltage of Circuit Test - 3000 V (barewire)


Maximum Dc Bucking Current - 300 mA to buck out 300 A dc (using dc bucking coil)


Current Measurement Combinations





Maximum Current

Product Bandwidth A-s product RMS Peak Pulse
CT-5/A6302/AM 503 0.5 Hz to 20 MHz 0.1 700A 50 kA
CT-5/P6021/134 12 Hz to 20 MHz 0.5 700 A 15 kA
CT-5/P6021/Term 120 Hz to 20 MHz 0.5 700 A 50 kA
