Tektronix TV90 Time Domain Reflectometer (TDR)

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Tektronix TV90 Time Domain Reflectometer (TDR)
Enlarge Image
Tektronix TV90 Time Domain Reflectometer (TDR) Tektronix TV90 Time Domain Reflectometer (TDR)
Tektronix Test Equipment TV90
Request Quote Print Page
TV90 Datasheet

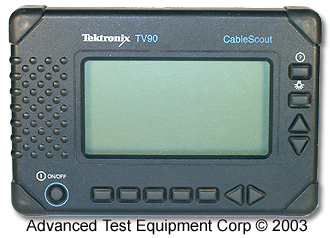

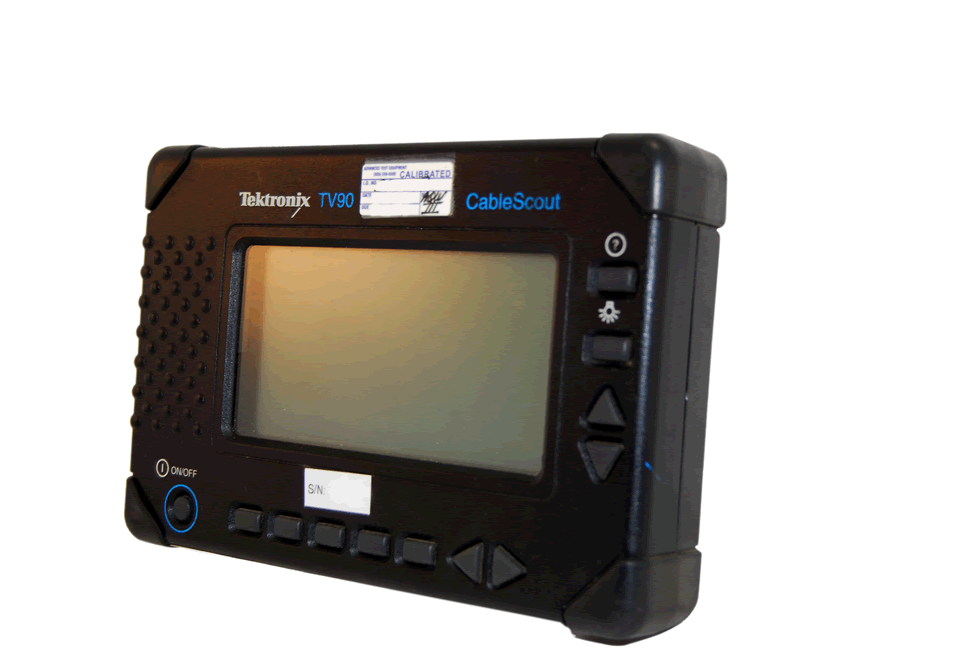

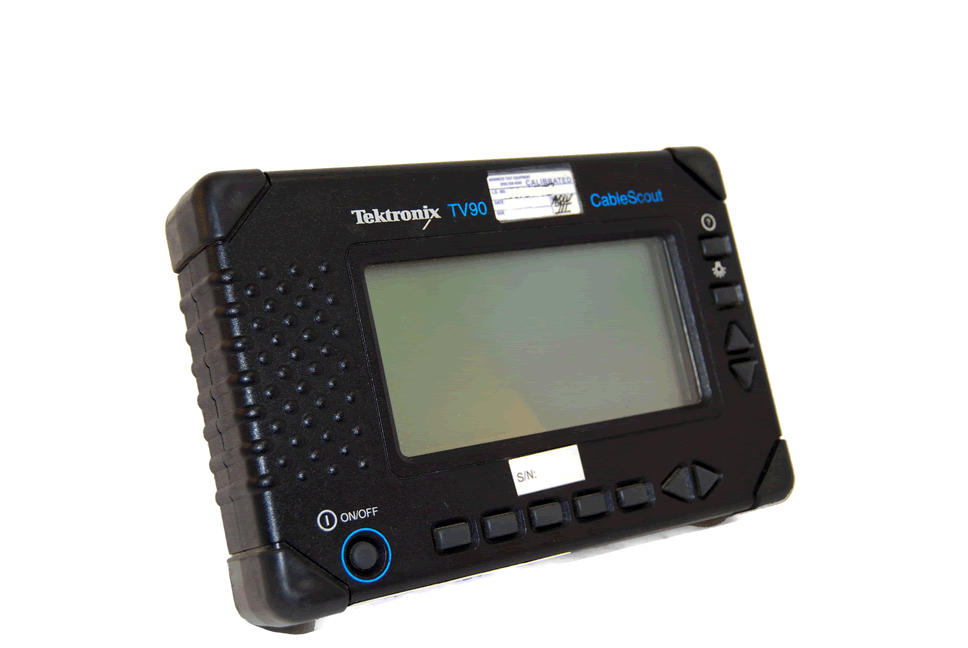

The Tektronix CableScout TV90 is designed specifically for Cable TV and other coaxial cable applications. The TV90 provides both ease of use and coaxial cable testing performance. Simply select the cable type to be tested and the TV90 does the rest. Pulse width, VP, gain and vertical position are automatically selected and adjusted as you scan the cable. Finding the fault could not be faster, just move the cursor to the fault and use the one-button zoom function to pinpoint its location. The TV90 employs optimized pulsing and sampling, coupled with advanced filtering and signal-processing techniques. You always have a clean waveform for easiest event identification.
Tektronix Test Equipment TV90 Features
  • Large, High-resolution, Backlit Display
  • Splash, Dust and Shock Resistant Packaging
  • Easy to Use - Anyone Can Use It
  • One Button Expand/Full-view Function
  • 75 ohms F Connector
  • Intermittent Fault Location
  • Context-sensitive Help (Help Screens Available for All Functions)
  • Small, Portable, Lightweight Package (2.2 lbs.)
  • Accurate (±2 ft. up to 200 feet, 1% beyond)
  • 4000-Foot Fault-location Capability
  • Internal Cable Types for Fast, Accurate Testing
Tektronix Test Equipment TV90 Applications
  • Find Location of Damage In Drops
  • Find Impedance Mismatches
  • Locate Bad Passive Devices
  • Determine Length of Cable
