Advanced Amplifiers AA-2100M-500 Solid State Amplifier | 2 - 100MHz, 500W

  Tech Support
(800) 404-2832
ATEC Assurance With Every
The Advanced Amplifiers AA-2100M-500 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 2 - 100MHz and generates 500W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-2100M-500 has a power gain of 57 dB minimum and operates with an input of 100 – 240 VAC 1-phase (2000W).

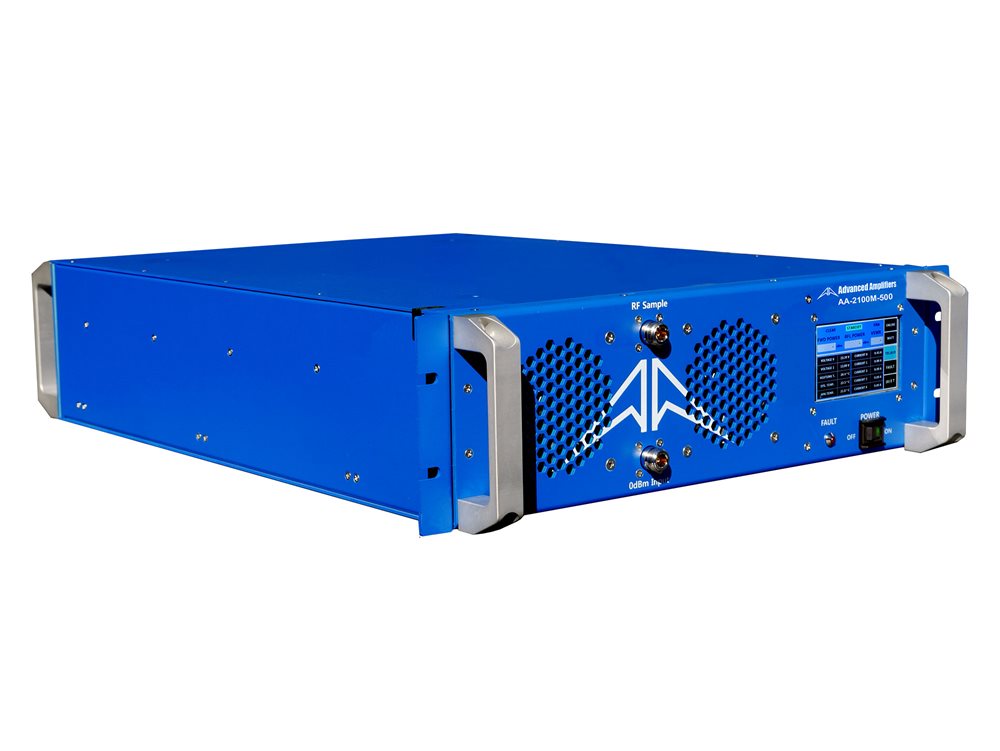

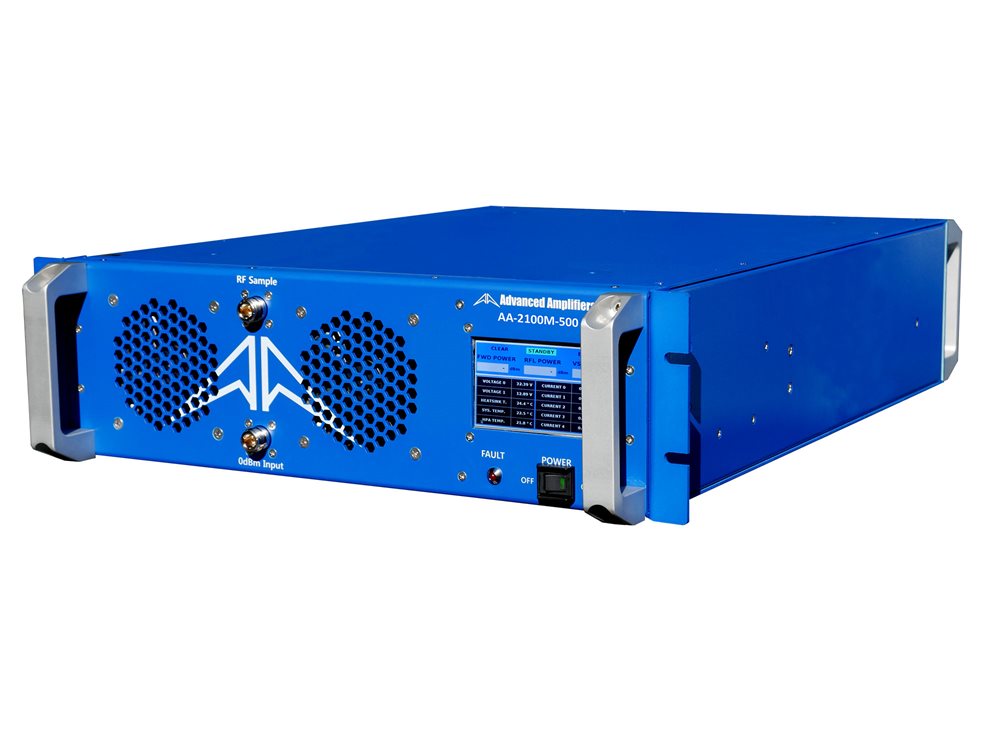

The AA-2100M-500 is lightweight and has a low-profile (3U) build, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifier AA-2100M-500 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.
