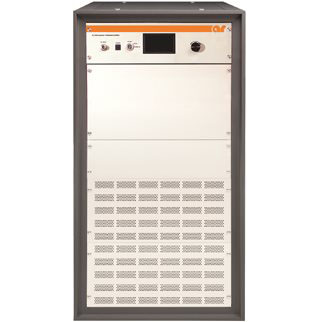

Amplifier Research 1200A225 CW Solid State Amplifier
Enlarge Image
Amplifier Research 1200A225
Request Quote Print Page
1200A225 Datasheet
The Amplifier Research 1200A225 CW Solid State Amplifier amplifies signal strength with 1200 W of continuous wave power over a frequency range of 10 kHz to 225 MHz. Portable, Class A and VSWR tolerant, engineers choose AR 1200A225 amplifiers for use in applications calling for high gain, linearity and instantaneous bandwidth. A front control panel allows operators to manipulate the desired output level and the device can be controlled remotely via the digital control panel. Protection against RF input overdrive is in place; over-temperature shielding is accomplished through removal of DC voltage if dangerously high temperature conditions occur due to fan failure or cooling blockage. Amplifier Research 1200A225 amplification instruments are CE and RoHS compliant and ideal for EMC testing applications.

Amplifier Research 1200A225 Features
  • 10 kHz to 225 MHz
  • 1200 W CW
  • Portable
  • Fully VSWR-tolerant
  • Complies with CE and RoHS requirements
  • Stylish, contemporary enclosure
Amplifier Research 1200A225 Specs
RATED OUTPUT POWER Typical: 1300 watts, min 1200 watts, .01-100MHz
Typical: 1200 watts, min 1100 watts, 100-225MHz
INPUT FOR RATED OUTPUT 1.0 mW Max
POWER OUTPUT @ 3dB COMPRESSION Typical: 1300 watts, min 1200 watts, .01-100MHz
Typical: 1200 watts, min 1100 watts, 100-225MHz
POWER OUTPUT @ 1dB COMPRESSION Typical: 1250 watts, min 1100 watts, .01-100MHz
Typical: 1050 watts, min 800 watts, 100-225MHz
FLATNESS ±2.0 dB typical, ±2.5 dB maximum
FREQUENCY RESPONSE 10kHz-225 MHz instantaneously
GAIN (at maximum setting) 61.8 dB minimum
GAIN ADJUSTMENT (Continuous Range) 20 dB
INPUT IMPEDANCE 50 ohms, VSWR 1.5:1 maximum
OUTPUT IMPEDANCE 50 ohms nominal
