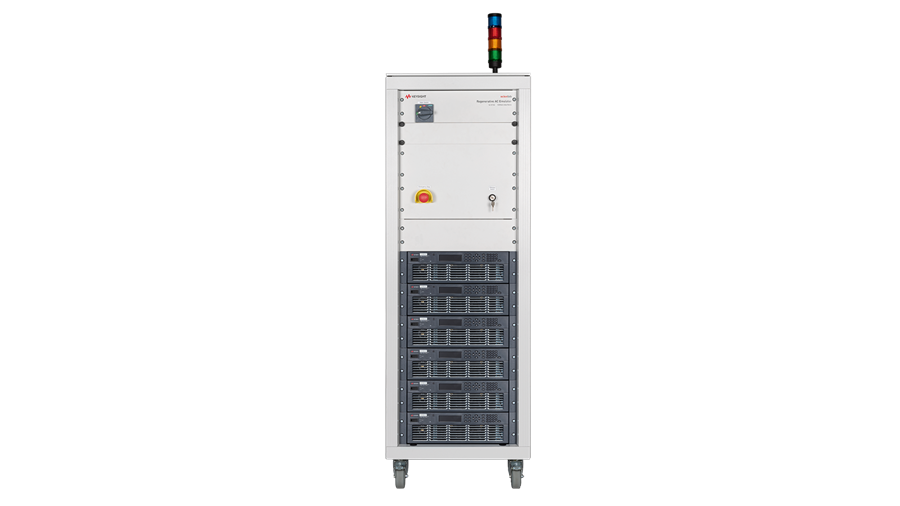

Keysight SL1215A Scienlab Regenerative AC / Grid Simulator | 130 / 65 A, 90 kW / 135 kVA

The Keysight SL1215A Scienlab Regenerative AC / Grid Emulator is a dual-range AC and DC model from the SL1200A Series. This model has a maximum real power of 90 kW and a maximum apparent power of 135 kVA. With a voltage range 600 V / 1200, a robust design, and more, the SL1215A is ideal for a variety of testing requirements including automotive, harmonics and interharmonics (up to the 50th order), and paralleling and de-paralleling.

This equipment is designed to keep up with the changing and growing energy grid of today, as solar, wind, and battery storage become more popular. With the rise of VRE, DERs, and electric vehicles, the grid is more challenging to emulate than ever, necessitating smart inverters with grid support functionality and no transformers required, such as the SL1215A.

We recommend renting this equipment with the SL1040A and the SL1047A.

Product Info Available Add-Ons Related Products

Model	SL1215A
Voltage Range	600 / 1200
Maximum Current	130 / 65 A
Maximum Real Power	90 kW
Maximum Apparent Power	135 kVA
Frequency Range	40 to 75 Hz
Operating Modes	AC, AC + DC offset DC, DC + AC ripple
Output Phase	1, 2, or 3 (3-phase selectable, 1-phase @ max power)
Dimensions (H x W x D)	1665 x 605 x 1020 mm (65.6 x 23.8 x 40.2 in)
Weight	500 kg (1102.3 lb.)
