Fluke ii900 Industrial Acoustic Imager

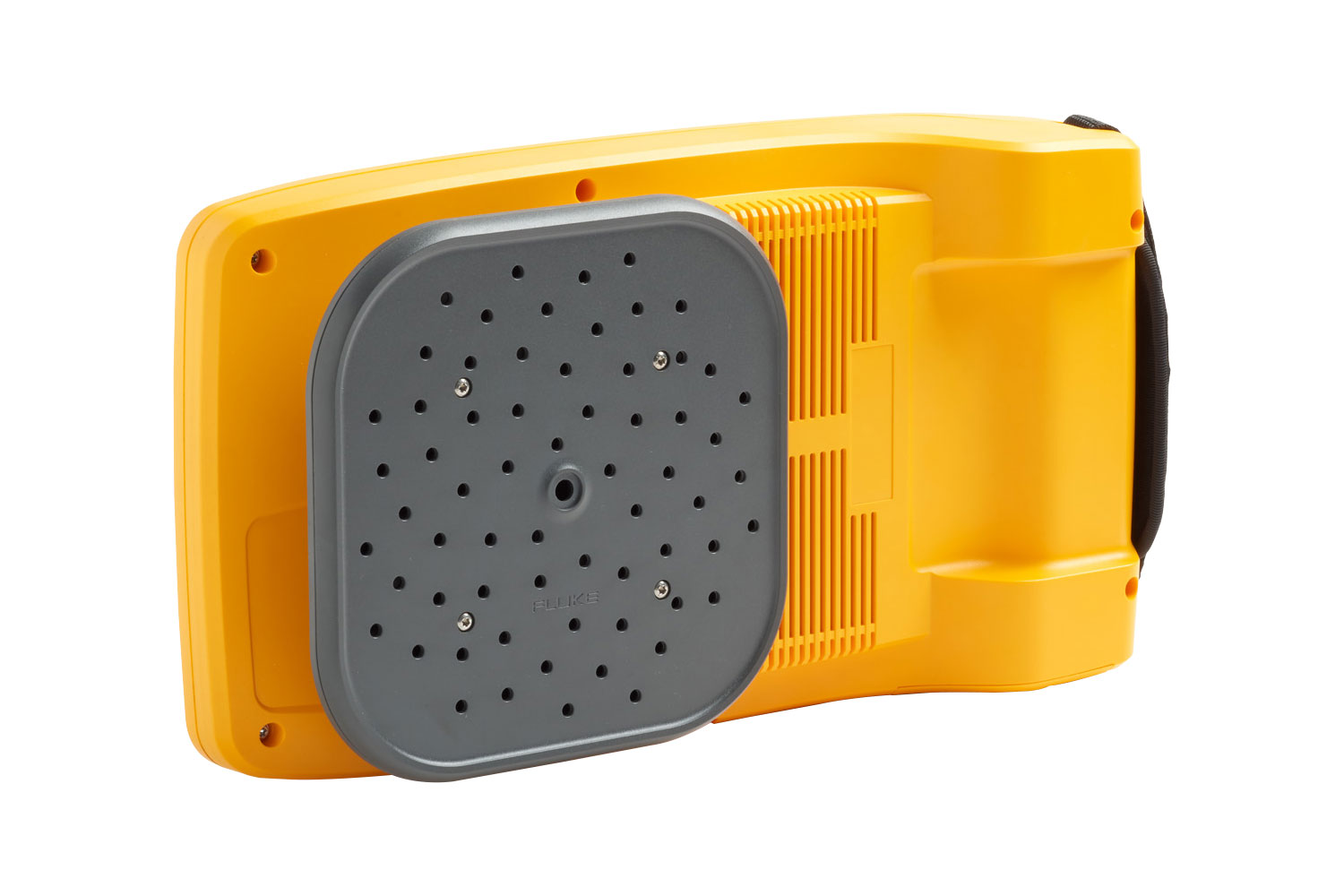

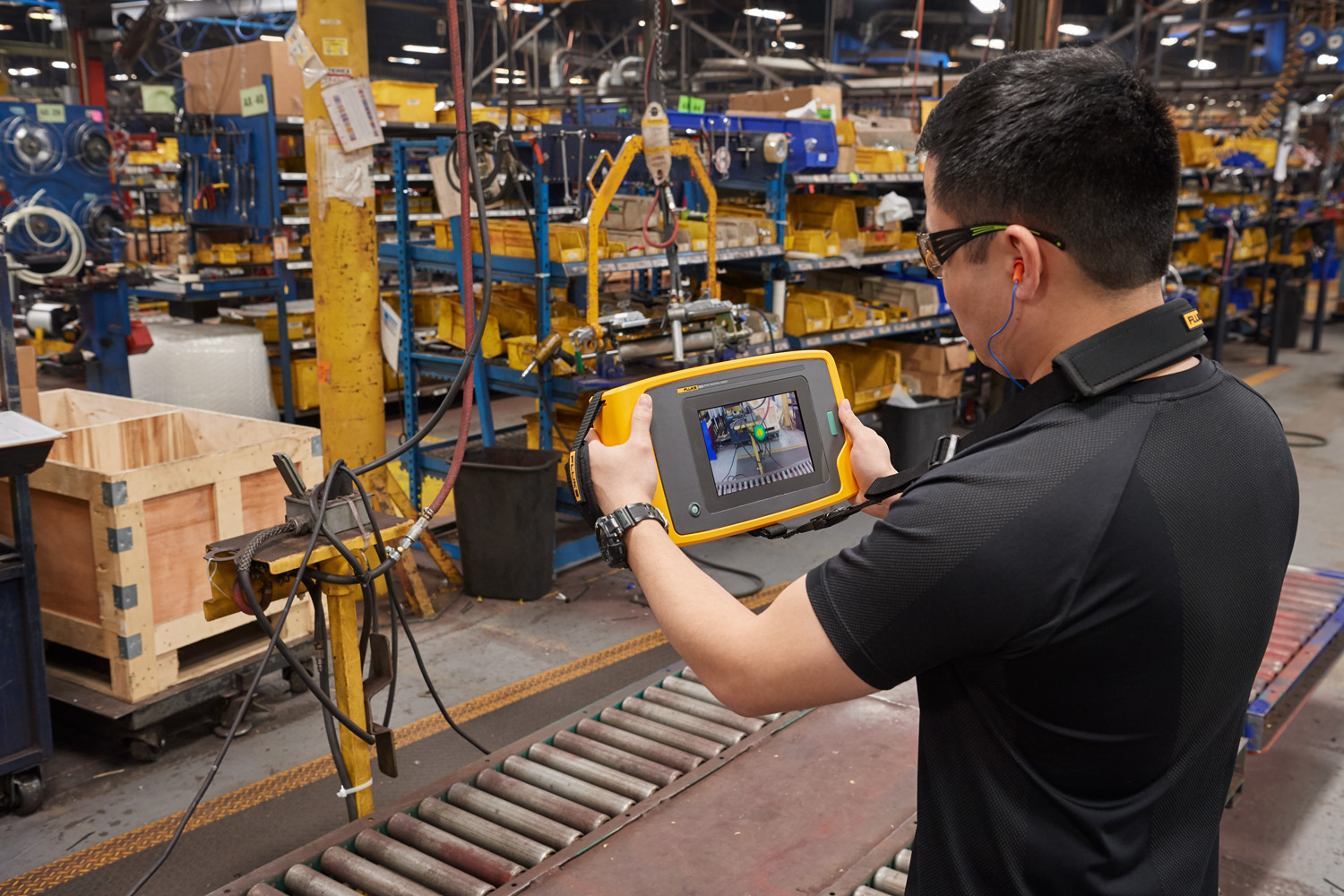

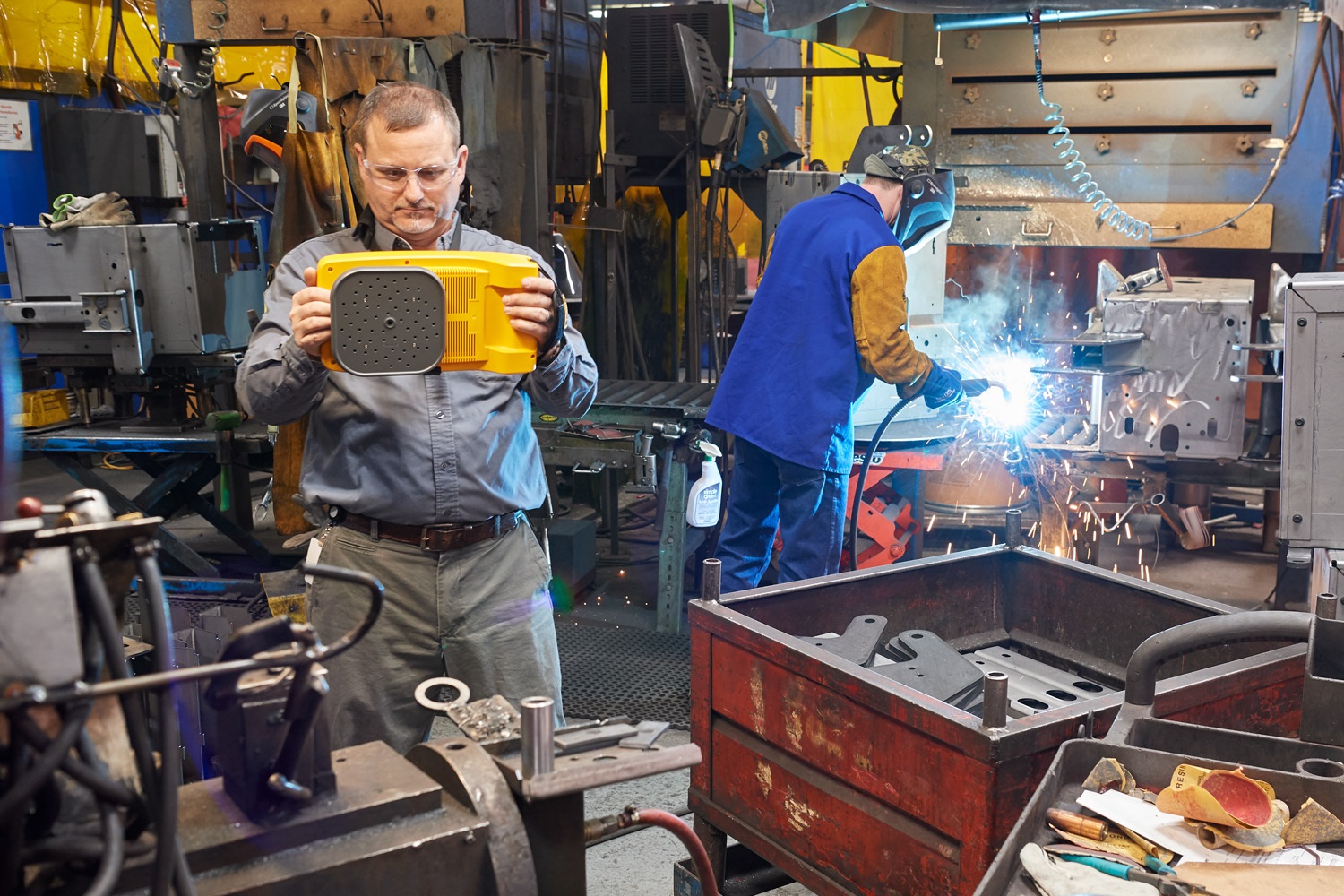

The Fluke ii900 Sonic Industrial Imager empowers maintenance teams to quickly and accurately locate air, gas, and vacuum leaks in compressed air systems, even in noisy environments. Fluke ii900 units are equipped with an array of microphones for an expanded field-of-view to perform these measurements. Specifically designed for noisy production facilities, the ii900's SoundSight technology is simple to learn and easy to implement. The 7” LCD touchscreen overlays a SoundMap on a visual image for quick leak location identification. The straightforward, intuitive interface allows technicians to isolate the sound frequency of the leak to filter out loud background noise. In a matter of hours, the team can inspect the entire plant, even during peak operations. With the Fluke ii900, users can quickly and easily identify the air leak repairs needed to ensure efficient operations and reduce utility bills. Images can be saved and exported for reporting purposes.

Rent the Fluke ii900 Industrial Acoustic Imager from ATEC for affordable rental rates and immediate shipping.

Product Info Related Products

Sensors
# of microphones	64 digital MEMS microphones
Frequency band	2 kHz to 52 kHz
Sound pressure sensitivity	Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet (Detects a 2.5 cm³/sec leak at 7 bar from up to 10 meters)
Operation distance range	0.5 to > 50 meters (1.6 to > 164 feet)
Field of view	63° ± 5°
Minimum frame rate	12.5 FPS
Display
Resolution	1280 x 800 (1,024,000 pixels)
Touchscreen	Capacitive
Acoustic image	Yes, SoundMap image
Acoustic Measurements
Measurement range	29.3 dB to 119.6 dB SPL (±2 dB) at 2 kHz 21.9 dB to 112.2 dB SPL (±2 dB) at 19 kHz 36.6 dB to 126.9 dB SPL (±2 dB) at 52 kHz
Auto max/min dB gain	Auto or manual, user-selectable
Frequency band selection	User-selectable through user-made presets or manual entry

Do more with the same air compressors – delay the capital expense of purchasing an additional compressor
Ensure proper air pressure to your pneumatic equipment
Lower utility costs
Reduce leak detection time
Improve reliability in your production line

General Safety	IEC 61010-1
Electromagnetic Compatibility (EMC) International	IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication)
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
