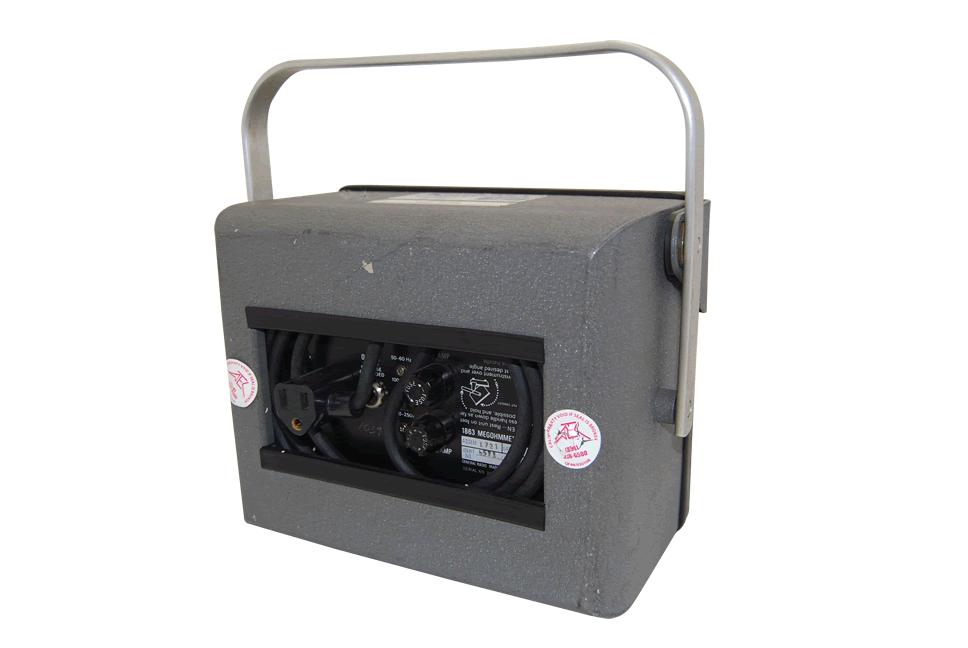

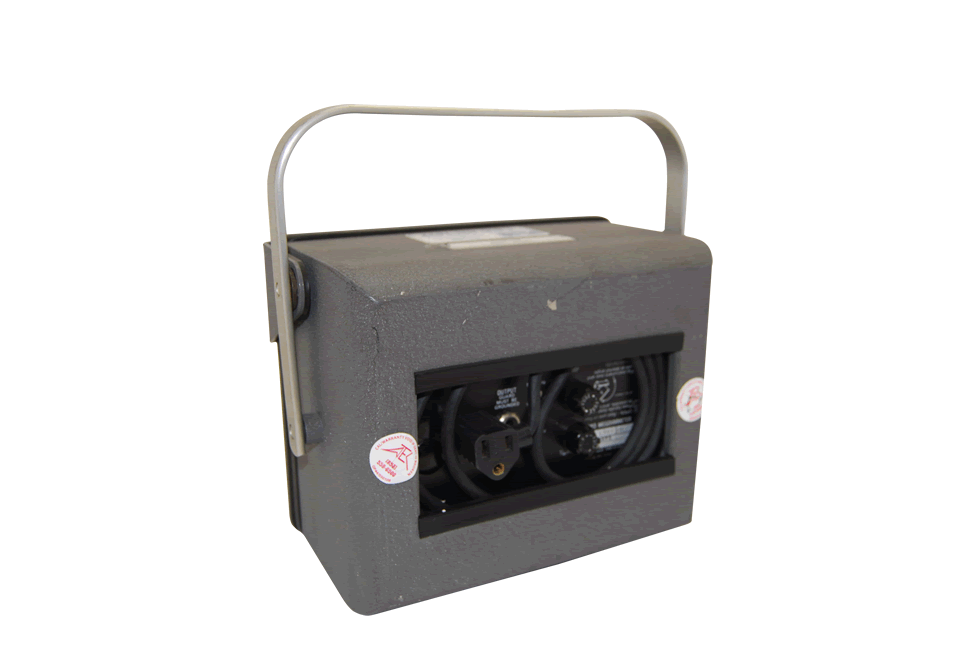

General Radio 1863 Megohmmeter

General Radio 1863 Megohmmeter
Enlarge Image
General Radio 1863 Megohmmeter General Radio 1863 Megohmmeter General Radio 1863 Megohmmeter
Genrad 1863
Request Quote Print Page
Datasheet Other1



Features:

  • 5 test voltages: 50 to 500V
  • 50k ohms to 20T ohms (2 x 1013 ohms)
  • Simple operation
  • Safe, stable, direct-reading meters, lighted range switches, and panel lights that warn when voltage is present
  • Measure grounded or ungrounded two-or three-terminal resistors, using the guard and ground terminals



Specifications:

  • Voltage and Resistance Ranges:
    Voltage Rmin
    Full Scale
    Rmax Useful Ranges
    10% of Scale 2½% of Scale
    50, 100V 50 k ohms 500 G ohms 2 T ohms 7
    200, 250, 500V 500 k ohms 5 T ohms 20 T ohms 7
  • Short-Circuit Current: 5 mA approx.
  • Mechanical: Flip-Tilt case
