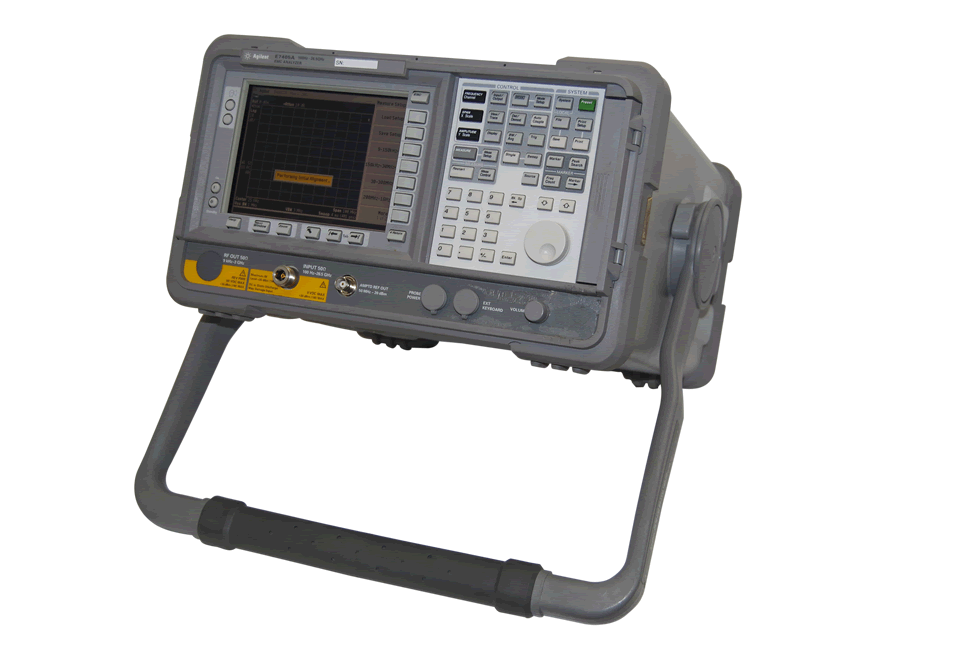

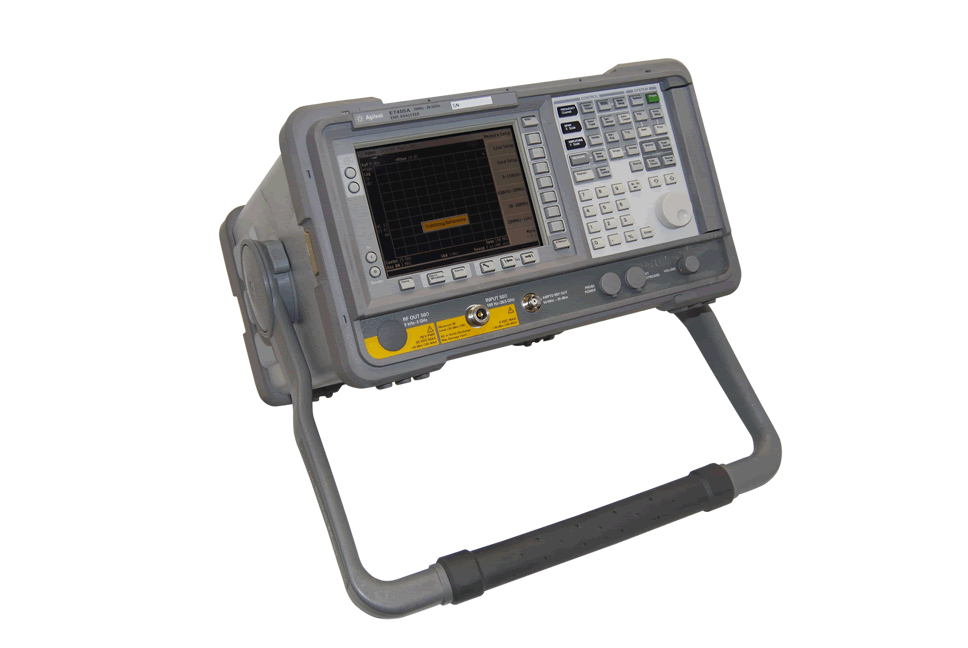

Image of Keysight E7405A Spectrum Analyzer

Keysight E7405A Spectrum Analyzer

9 kHz – 26.5 GHz

The Keysight E7405A is an EMC spectrum analyzer that operates within a frequency range of 9 kHz to 26.5 GHz and can support resolution bandwidth between 10 Hz - 3 MHz. This model comes with a built-in preamplifier from 1 MHz - 3 GHz and offers an option that allows for a lower frequency of 100 Hz. It is ideal for preliminary assessments of EMI properties, diagnostics, and product isolation.

Product Info Related Products

Frequency range	9 kHz - 26.5 GHz
TOI	+12.5 dBm
DANL	≤ 150 dBm
Optional UKB	Lower frequency of 100 Hz
Counter resolution	1 Hz - 100 kHz
Input Attenuator Range	0 - 60 dB, in 5 dB steps
Temperature Range	0 - 55°C
Voltage	12 - 20 Vdc
Weight	17.1 kg (37.7 lb.)
Dmensions (H x W x D)	416 mm x 222 mm x 409 mm

1 Hz to 5 MHz (including 200 Hz, 9 kHz, 120 kHz, 1 MHz EMI BW)
+12.5 dBm TOI
≤150 dBm displayed average noise level (DANL)
Optional (UKB) for lower frequency of 100 Hz
Log sweep
Built-in preamplifier
Optional tracking generator
Options included standard are: A4H, AYQ, B72, 060, 1DR, 1DS
Compatible with E7415A EMI Software
Compatible with BenchLink Web Remote software

009: 9 kHz Low End Frequency
535: Type N(f) Input Connector
1AX: RS-232 and Centronics Interface
1CP: Rackmount and Handle Kit
1D5: High Stability Frequency Reference
1D6: Time-gated Spectrum Analysis
1DN: Tracking Generator
A4H: GPIB and Parallel Printer Interface
AYT: Gray Soft Carrying/Operating Case
AYU: Yellow Soft Carrying/Operating Case
AYX: Add Transit Case
AYZ: External Mixing
B72: Memory extension to 10 MB
BAB: APC 3.5 mm Input Connector
HYZ: External Mixing Capability with 11974 Series Mixers
UK9: Front Panel Cover
UKB: 100 Hz (30 Hz usable) Frequency Range Extension

SKU: AGIL-E7405A
