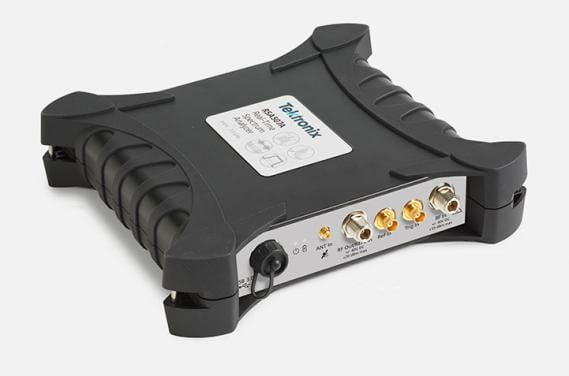

The Tektronix RSA518A Portable Spectrum Analyzer captures 40 MHz real-time bandwidths with great fidelity in harsh environments. Built to bring real-time spectrum analysis to solving the problems of spectrum managers, the Tektronix RSA518A helps interference hunters and network maintenance personnel who need to track down hard to find interferers, maintain RF networks, and keep records of their efforts.

With 70 dB spurious-free dynamic range and frequency coverage to 18 GHz, all signals of interest can be examined with high confidence in your measurement results. The USB form factor moves the weight of the instrument off your hands and replaces it with a lightweight Windows tablet or laptop. Holding a light PC instead of a heavy spectrum analyzer means you can move faster, for longer, and get your work done quicker.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

9 kHz to 3.0/7.5/13.6/18.0 GHz frequency range covers a broad range of analysis needs
40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
High speed full-span sweeps (70 GHz/sec) for fast setup and discovery
Standard GPS/GLONASS/Beidou receiver for mapping
Optional tracking generator for gain/loss, antenna and cable measurements
DataVu-PC software enables multi-unit recording in variable bandwidths

Specifications

Frequency Range	9 kHz to 18.0 GHz
Temperature Drift	±0.9 x 10-6 (-10 to 60 °C)

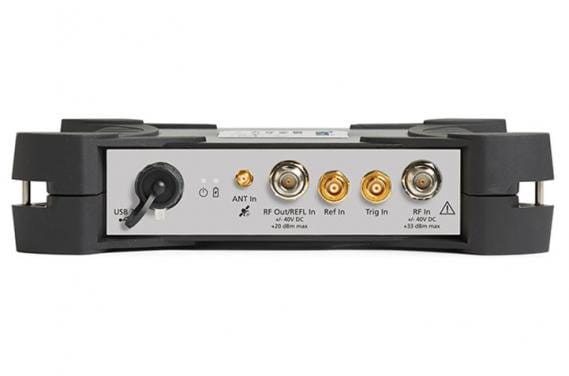

External Reference Input	BNC connector, 50 Ω nominal
RF Input Impedance	50 Ω
Input RF Attenuator	0 dB to 51 dB (1 dB step)
Trigger Voltage Range	TTL, 0.0 V to 5.0 V
IF bandwidth	40 MHz
