Rent Rohde & Schwarz FSH313 100 kHz to 3 GHz, Handheld Spectrum Analyzer with tracking generator
Enlarge Image
Rohde & Schwarz FSH313
Request Quote Print Page
Brochure Accessory Kit
The Rohde & Schwarz FSH313 spectrum analyzer is part of the R&S FSH series of handheld analyzers. The Rohde & Schwarz FSH313 (with tracking generator) is the ideal spectrum analyzer for rapid, high-precision, cost-effective signal investigations. It provides a large number of measurement functions and so can handle anything from the installation or maintenance of a mobile radio base station, through on-site fault location in RF cables to development and service - an extensive range of applications.
Rohde & Schwarz FSH313 Features
Frequency range 100 kHz to 3 GHz
Internal preamplifier with
frequency range from
100 kHz to 3 GHz
Displayed average noise level type -135 dBm (RBW 100 Hz)
high level accuracy 0.5 dB typ
Resolution bandwidths 1 kHz to 1 MHz
Wide range of detectors sample, max/min peak, auto peak, RMS

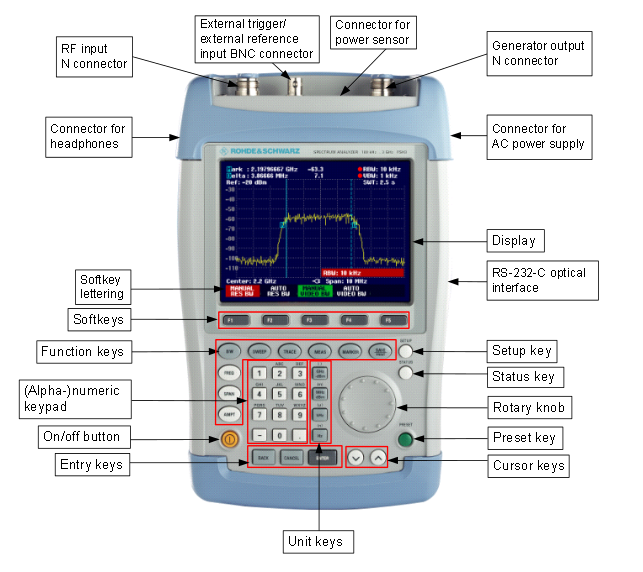

FSH Interface:

Rohde & Schwarz FSH313 Options:
FSH-B1 Distance-to-Fault Measurement (includes 1 m cable, FSH-Z2 required)
FSH-K1 Remote Control via RS-232-C
FSH-K2 Vector Transmission and Reflection Measurements
FSH-K3 Receiver Mode
FSH-K4 3GPP FDD Code Domain Power BTS/Node B Measurement for R&S®FSH3 model .23
FSH-Z2 10MHz to 3GHz VSWR Bridge and Power Divider
