Narda NBM-550 Broadband Field Meter, 2400/101B | 0 - 90 GHz

View the latest version.

The Narda NBM-550 field meter is the flagship model in Narda STS’s NBM series, the most accurate RF survey systems for non-directional measurement of non-ionizing radiation on the market. It can measure electromagnetic field strength with the help of isotropic probes that operate over frequencies ranging from 0 to 90 GHz. NBM-550 units are handheld, easy to operate and display results on a large graphical user interface with a backlit LCD screen.

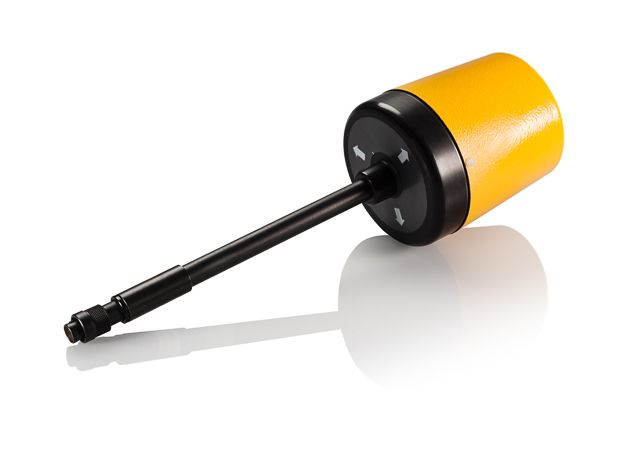

Models in the NBM-500 series pair with an array of E-field and H-field probes that cover specific frequencies. Whether your test calls for measuring at a few Hertz, a long wave frequency or a high frequency, a Narda probe is available for your application. Shaped probes designed to measure the compliance percentage for FCC, IEEE, SC6 and ICNIRP standards are also available. Narda probes are individually calibrated and feature a non-volatile memory consisting of the calibration data and probe parameters; therefore, probes can be paired with any meter in the NBM-500 series and still provide perfect calibration accuracy.

EMF safety personnel across the world rely on Narda NBM-550 broadband field meters to perform tests for general safety, like adhering to EMF Directive 2013/35/EU, as well as more specific applications. The NBM is ideal for conducting RF monitoring on broadcasting and radar systems, as well as determining the safety levels of cell phones and satellite communications systems. Other uses include testing in the industrial, medical and EMC fields.

Product Info Related Compliance Standards Related Products

Probe Model	Field Type	Frequency Range	Ordering #
EF 0391	E-Field	100 kHz - 3 GHz	2402/01
EF 0392	E-Field, HiPow	100 kHz - 3 GHz	2402/12
EF 0691	E-Field	100 kHz - 6 GHz	2402/14
EF 0692	E-Field	600 MHz - 6 GHz	2402/20
EF 1891	E-Field	3 MHz - 18 GHz	2402/02
EF 4091	E-Field	40 MHz - 40 GHz	2402/19
EF 5091	E-Field	300 MHz - 50 GHz, Thermo	2402/16
EF 5092	E-Field, HiPow	300 MHz - 50 GHz, Thermo	2402/11
EF 6092	E-Field	100 MHz - 60 GHz	2402/17
EF 9091	E-Field	100 MHz - 90 GHz	2402/18
HF 3061	H-Field	300 kHz - 30 MHz	2402/05
HF 0191	H-Field	27 MHz - 1 GHz	2402/06
EA 5091	FCC Shaped	300 kHz - 50 GHz, E-Field	2402/07
EB 5091	IEEE Shaped	3 MHz - 50 GHz, E-Field	2402/08
EC 5091	SC6 Shaped	300 kHz - 50 GHz, E-Field	2402/10
ED 5091	ICNIRP Shaped	300 kHz - 50 GHz, E-Field	2402/11
General Specifications
Dimensions	45 x 98 x 280 mm
Weight	550 g (without probe and GPS receiver)
Display size	10 cm (4''), 240 x 320 px
Result memory	12 MB, nonvolatile
Storage capacity	Up to 5,000 results
Operating time from full battery charge	12 hours (backlight permanently on, without GPS)

Non-directional measurement using isotropic probes for applications in the frequency range 0 to 90 GHz
Intelligent probe interface detects probe parameters
Fully automatic zero point adjustment
Large, graphic display for easy-to-read results
Intelligent probe interface with automatic detection of probe parameters for simple operation
Memory for up to 5000 measurement results
Automatic storage of position data with GPS interface and plug-in GPS receiver (accessory)
Voice recording for comments
Conditional logging: Measured value saved when a threshold value is exceeded
Optional:
- Probe for spectral measurements and Weighted Peak from 1 Hz to 400 kHz
- Magnetometer Probe for magnetic fields from 0 Hz (DC) to 1 kHz

Measuring field strengths to comply with general safety regulations, such as the EMF Directive 2013/35/EU
Establishing safe zones
Measuring and monitoring field strengths around broadcasting and radar equipment
Measuring field strengths of cell phone transmitters and satellite communications systems to demonstrate compliance with human safety standard limit values
Measuring field strengths in the industrial environment, such as plastics welding equipment, RF heating, tempering, and drying equipment
Measurements for protecting users of diathermy equipment and other medical devices that generate high-frequency radiation
Measuring field strength in TEM cells and absorber chambers to demonstrate electromagnetic compatibility (EMC)
Spectral measurements on LF fields emanating from industrial equipment or overhead power cables
Measuring static magnetic fields in industry and medicine (eg MRT)
