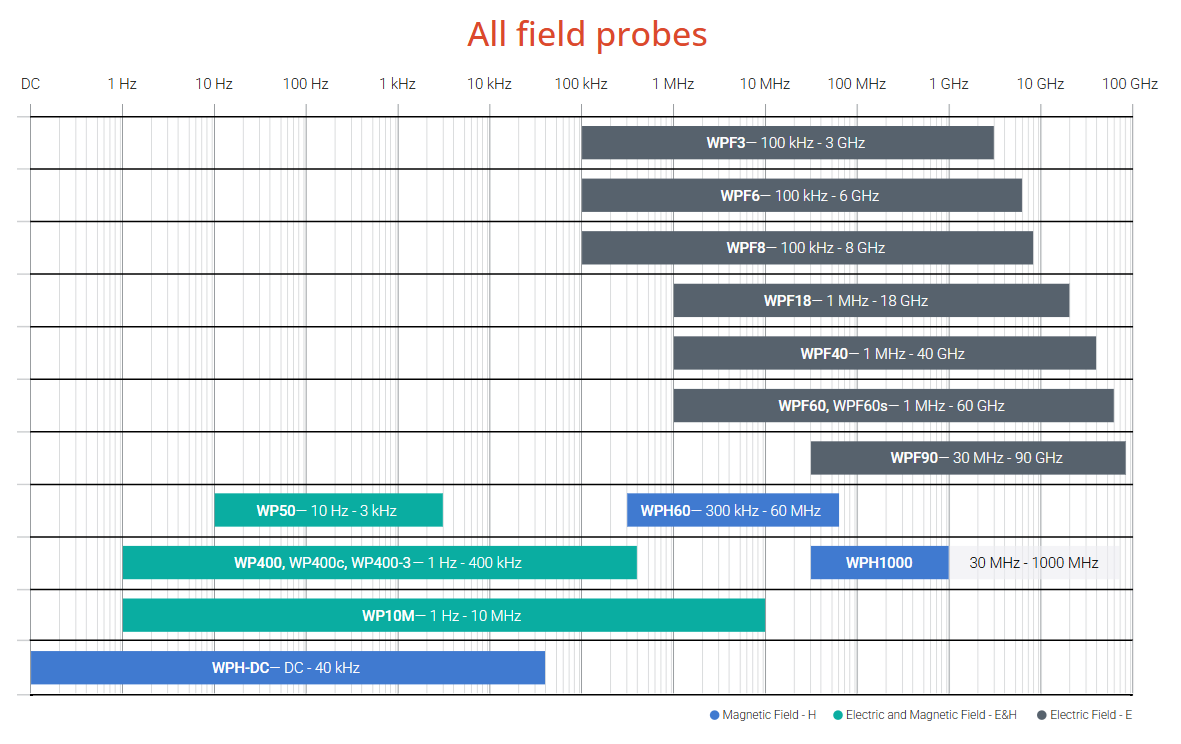

| Probe Model |
Frequency Range |
Measurement Range |
Linearity |
| WPH-DC |
0 - 40 kHz |
H-Field: 10 µT – 10 T |
0.6% (100 uT – 1 T) 1% (100 uT – 2.4 T) |
| WP400 |
1 Hz - 400 kHz |
E-Field: 1 V/m – 100 kV/m H-Field: 50 nT – 30 mT @50 Hz 50 nT – 10 mT (100 Hz – 10 kHz) |
±1% (Typical) ±2% (Maximum) |
| WP400-3 |
1 Hz - 400 kHz |
E-Field: 10 V/m – 400 kV/m H-Field: 200 nT – 50 mT (100 Hz – 10 kHz) |
±1% (Typical) ±2% (Maximum) |
| WP400c |
1 Hz - 400 kHz |
E-Field: 1 V/m – 100 kV/m H-Field: 50 nT – 30 mT @50 Hz 50 nT – 1.5 mT (820 Hz – 40 kHz) |
±1% (Typical) ±2% (Maximum) |
| WP10M |
1 Hz - 10 MHz |
E-Field: 2 V/m - 100 kV/m 2 V/m - 47 kV/m (160 kHz-10 MHz) H Field: 100 nT - 47 mT @50 Hz 400 nT - 4,7 mT (500 Hz - 10 MHz) |
+/- 1% (Typical) +/- 2% (Maximum) |
| WP50 |
10 Hz - 3 kHz |
E-Field: 2.5 V/m – 20,000 V/m H-Field: 0.05 µT – 2,000 µT |
±1% (Typical) ±2% (Maximum) |
| WPH60 |
300 kHz - 60 MHz |
H-Field: 0.018 – 1 A/m (RMS) 0.018 – 20 A/m (CW) |
±1 dB (0.04 – 4 A/m) |
| WPH1000 |
30 MHz - 1000 MHz |
H-Field: 0.018 – 20 A/m |
±1 dB (0.04 – 4 A/m) |
| WPF3 |
100 kHz - 3 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF3-HP |
100 kHz - 3 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF6 |
100 kHz - 6 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF6-HP |
100 kHz - 6 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF8 |
100 kHz - 8 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF8-HP |
100 kHz - 8 GHz |
E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF18 |
300 kHz - 18 GHz |
E-Field: 0.5 – 30 V/m (RMS) 0.5 – 250 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF18-HP |
300 kHz - 18 GHz |
E-Field: 0.5 – 30 V/m (RMS) 0.5 – 1,000 V/m (CW) |
±0.5 dB (0.5 – 100 V/m) |
| WPF40 |
1 MHz - 40 GHz |
E-Field: 1 – 55 V/m (RMS) 1 – 1,000 V/m (CW) |
±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m) |
| WPF60 |
1 MHz - 60 GHz |
E-Field: 1 – 55 V/m (RMS) 1 – 1,000 V/m (CW) |
±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m) |
| WPF60S |
1 MHz - 60 GHz |
E-Field: 0.1% – 35% (RMS) 0.1 – 800% (CW) |
±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m) |
| WPT |
Selective: 700 - 900, 1800 - 1900, 2100, 2600Hz |
E-Field: 0.04 – 65 V/m (RMS) |
<±0.4 dB (0.2 – 50 V/m) |
| WP-WIFI |
WiFi 2.45 GHz |
E-Field: 0.04 – 65 V/m (RMS) |
<±0.5 dB (0.2 – 50 V/m) |
| Technical Specifications |
| Model |
SMP3-Dual |
| Versions |
Broadband: for broadband measurements using the following probes: WPFx, WPT, WP50, WPH60, and WPH1000
Selective: for frequency selective measurements from 0 to 10 MHz using WP400, WP400c, WP400-3, WP10M, and WPH-DC
Dual: for both kinds of measurements using all field probes |
| Broadband |
0 Hz - 60 GHz (depending on field probe) |
| Spectrum analysis |
Up to 10 MHz |
| Weighted Peak Method |
1 Hz - 10 MHz (Real time WPM for direct comparison with limits) |
| Memory Capacity |
More than 1 million samples |
| Temperature Range |
-10ºC to +50ºC (+14ºF to +122ºF) |
| Alarm |
2400 Hz audible signal (adjustable threshold) |
| Battery |
Internal rechargeable Li-ion |
| Display |
Color transmissive TFT (480 x 272 pixels) |
| Dimensions |
100 x 215 x 40 mm (3.9 x 8.4 x 1.5 in) |
| Weight |
635 g (22.4 oz) |
