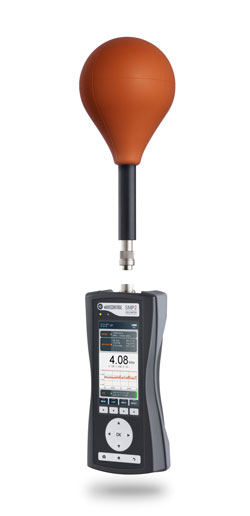

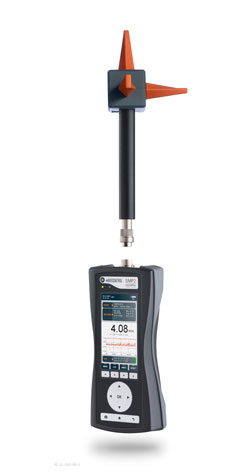

Wavecontrol SMP2 Electromagnetic Field Meter

Larger

SKU: WAVE-SMP2

Categories

RF Survey Meters

Documents

Datasheet

The Wavecontrol SMP2 Electromagnetic Field Meter is a 3-in-1 spectrum analysis instrument and broadband field meter. The device features spectrum analysis of 1 Hz to 400 kHz (FFT) and a field probe range from 1 Hz to 60 GHz. The instrument can measure broadband with WPFx, WPT, WP50, WPH60, and WPH1000 probes with a broadband range of up to 60 GHz. Wavecontrol provides a full range of E-Field, H-Field, and E&H Field probes with a total field value (X, Y, Z). All sensors of the meter are isotropic, RMS, and highly accurate.

The Wavecontrol SMP2 Electromagnetic Field Meter provides one of the most advanced functions and technology on the market, designed for high-quality measurement. The device can achieve automatic detection and recognition. The SMP2 model operates with a temperature range of -10 ºC to +50 ºC and has an internal rechargeable Li-ion battery. The Wavecontrol SMP2 Electromagnetic Field Meter is commonly used in industries, including energy, railway, telecommunications, medical, aeronautical, and defense.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Specifications

Probe Model	Frequency Range	Measurement Range	Linearity
WPH-DC	0 - 40 kHz	H-Field: 10 µT – 10 T	0.6% (100 uT – 1 T) 1% (100 uT – 2.4 T)
WP400	1 Hz - 400 kHz	E-Field: 1 V/m – 100 kV/m H-Field: 50 nT – 30 mT @50 Hz 50 nT – 10 mT (100 Hz – 10 kHz)	±1% (Typical) ±2% (Maximum)
WP400-3	1 Hz - 400 kHz	E-Field: 10 V/m – 400 kV/m H-Field: 200 nT – 50 mT (100 Hz – 10 kHz)	±1% (Typical) ±2% (Maximum)
WP400c	1 Hz - 400 kHz	E-Field: 1 V/m – 100 kV/m H-Field: 50 nT – 30 mT @50 Hz 50 nT – 1.5 mT (820 Hz – 40 kHz)	±1% (Typical) ±2% (Maximum)
WP50	10 Hz - 3 kHz	E-Field: 2.5 V/m – 20,000 V/m H-Field: 0.05 µT – 2,000 µT	±1% (Typical) ±2% (Maximum)
WPH60	300 kHz - 60 MHz	H-Field: 0.018 – 1 A/m (RMS) 0.018 – 20 A/m (CW)	±1 dB (0.04 – 4 A/m)
WPH1000	30 MHz - 1000 MHz	H-Field: 0.018 – 20 A/m	±1 dB (0.04 – 4 A/m)
WPF3	100 kHz - 3 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF3-HP	100 kHz - 3 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF6	100 kHz - 6 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF6-HP	100 kHz - 6 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF8	100 kHz - 8 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 130 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF8-HP	100 kHz - 8 GHz	E-Field: 0.2 – 20 V/m (RMS) 0.2 – 1,000 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF18	300 kHz - 18 GHz	E-Field: 0.5 – 30 V/m (RMS) 0.5 – 250 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF18-HP	300 kHz - 18 GHz	E-Field: 0.5 – 30 V/m (RMS) 0.5 – 1,000 V/m (CW)	±0.5 dB (0.5 – 100 V/m)
WPF40	1 MHz - 40 GHz	E-Field: 1 – 55 V/m (RMS) 1 – 1,000 V/m (CW)	±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m)
WPF60	1 MHz - 60 GHz	E-Field: 1 – 55 V/m (RMS) 1 – 1,000 V/m (CW)	±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m)
WPF60S	1 MHz - 60 GHz	E-Field: 0.1% – 35% (RMS) 0.1 – 800% (CW)	±2 dB (1 – 2 V/m) ±1 dB (2 – 250 V/m)
WPT	Selective: 700 - 900, 1800 - 1900, 2100, 2600Hz	E-Field: 0.04 – 65 V/m (RMS)	<±0.4 dB (0.2 – 50 V/m)
WP-WIFI	WiFi 2.45 GHz	E-Field: 0.04 – 65 V/m (RMS)	<±0.5 dB (0.2 – 50 V/m)
Technical Specifications
Field probe range	0 Hz - 60 GHz
Broadband	0 Hz - 60 GHz
Spectrum analysis	1 Hz - 400 kHz (FFT)
Field values	X, Y, Z, and total
E field units	V/m, kV/m, μW/cm2 , mW/cm2 , W/m2 , %
H field units	nT, μT, mT, T, A/m, %, mG
Log time	Configurable (from 0.5 s to 6 min)
Display type	Color transmissive TFT (480 x 272 pixels)
Autonomy	>14 hours (with broadband probes)
Operating temperature	-10ºC to +50ºC
Dimensions (W x H x D)	100 x 215 x 40 mm (3.9 x 8.4 x 1.57 in)
Weight	575 g (1.267 lb.)
