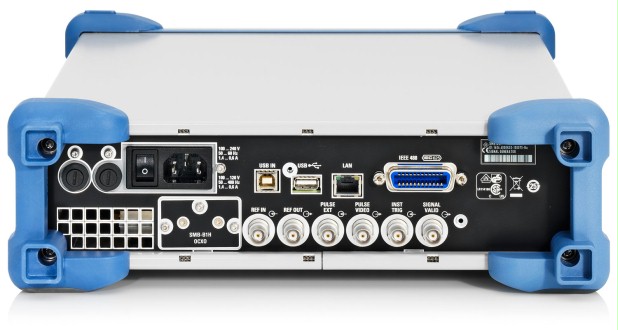

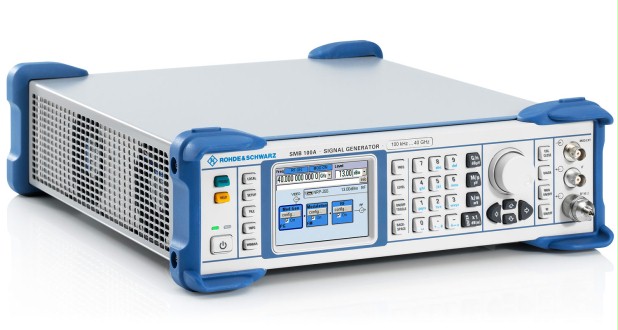

The compact, versatile Rohde & Schwarz SMB100A RF and microwave signal generator with a frequency range up to 40 GHz provides outstanding spectral purity and high output power. In addition, it features easy operation, comprehensive functionality and low cost of ownership.
For even higher frequencies, the frequency range of the Rohde & Schwarz SMB100A can be easily extended with the Rohde & Schwarz SMZ frequency multiplier. The Rohde & Schwarz SMB100A plus Rohde & Schwarz SMZ solution combines easy handling with precise, adjustable output levels in the frequency range from 50 GHz to 110 GHz (adjustable output levels are not possible with Rohde & Schwarz SMZ170).
Features
- Wide frequency range from 9 kHz to 6 GHz or from 100 kHz to 40 GHz
- Excellent signal characteristics with low SSB phase noise of typ. –128 dBc (at 1 GHz, 20 kHz offset)
- High output power of typ. up to +27 dBm
- All important analog modulations with AM, FM/φM and pulse modulation supported
- Compact size with only two height units and low weight
