| Frequency Range |
8 kHz to 20 GHz |
| Phase Noise (@ 1 GHz, 10 kHz offset) |
-140 dBc typical |
| Harmonics |
100 kHz ≤ f ≤ 10 MHz: < –30 dBc
f > 10 MHz: < –55 dBc |
| Nonharmonics (@ 1 GHz, 10 kHz offset) |
< –92 dBc |

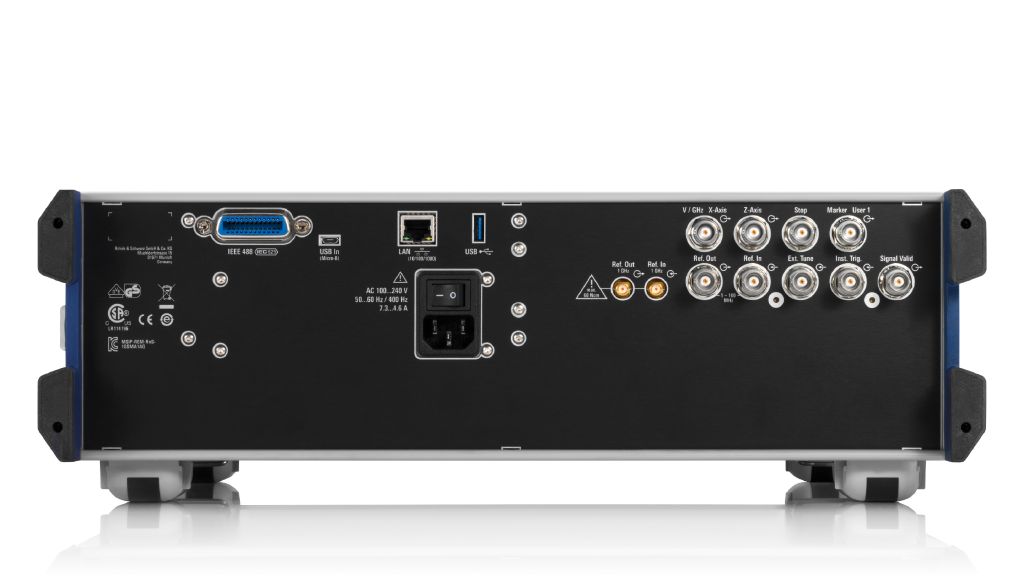

| Connectors |
RF Output: test port adapter, PC 2.92 mm female (interchangeable port connector system)
LF Generator Output: BNC female
Ext 1, Ext 2: BNC female
Pulse Ext: BNC female/digital signal
Pulse Video: BNC female/digital signal
Pulse Sync: BNC female/digital signal
Sensor: 6-pin ODU mini-snap series B, mechanically compatible with 8-pin ODU mini-snap series B |
| Typical Rise/Fall Time |
5 ns |
| Supported Modulation Modes |
AM, FM, φM |
| Minimum Pulse Width |
<20 ns |
| On/Off Ratio |
>80 dB |
| Maximum Output Power |
Exceeds 30 dBm across wide frequency ranges |

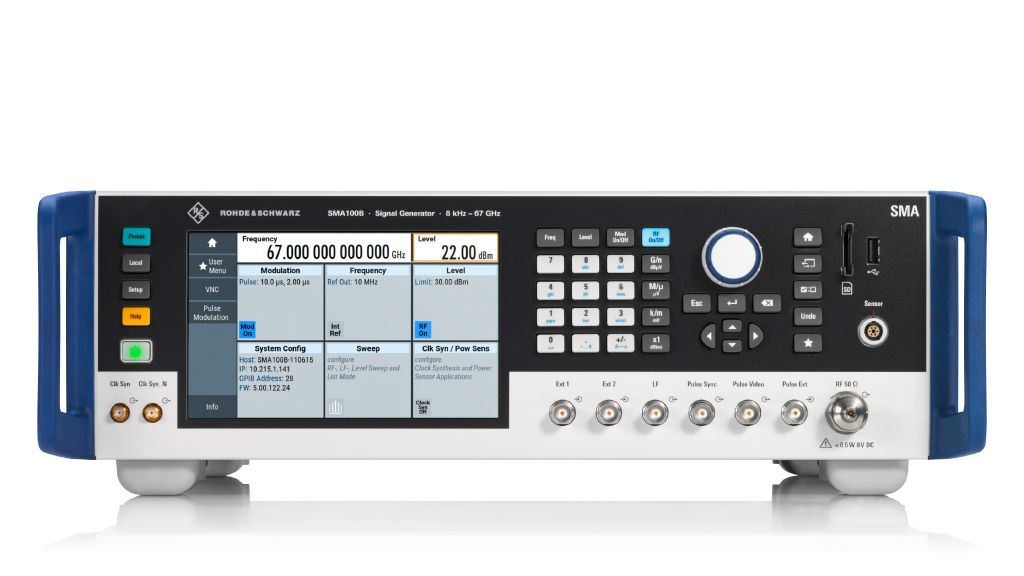

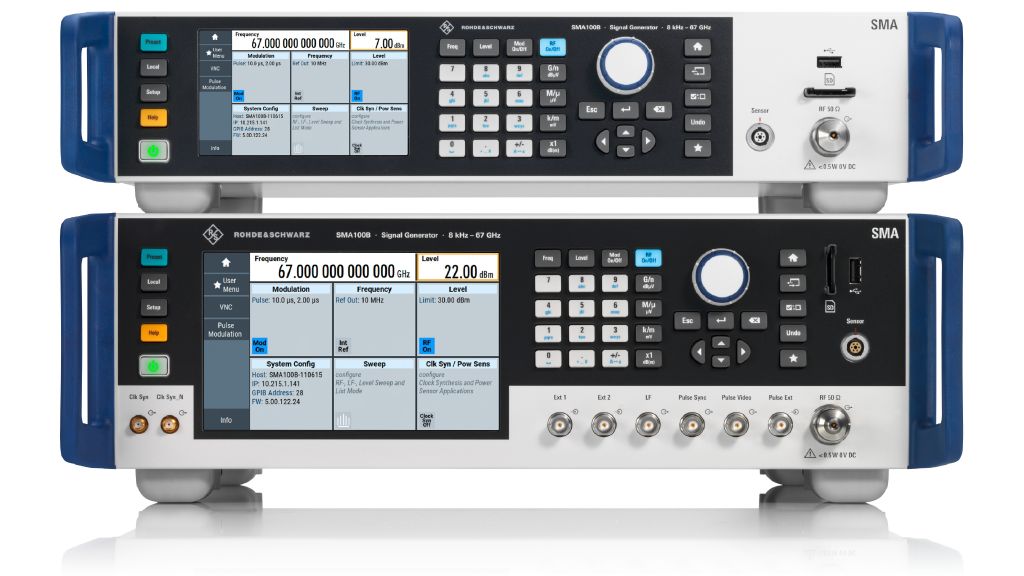

| Interface |
3 HU with larger 7" display
Multiple front panel connectors |
