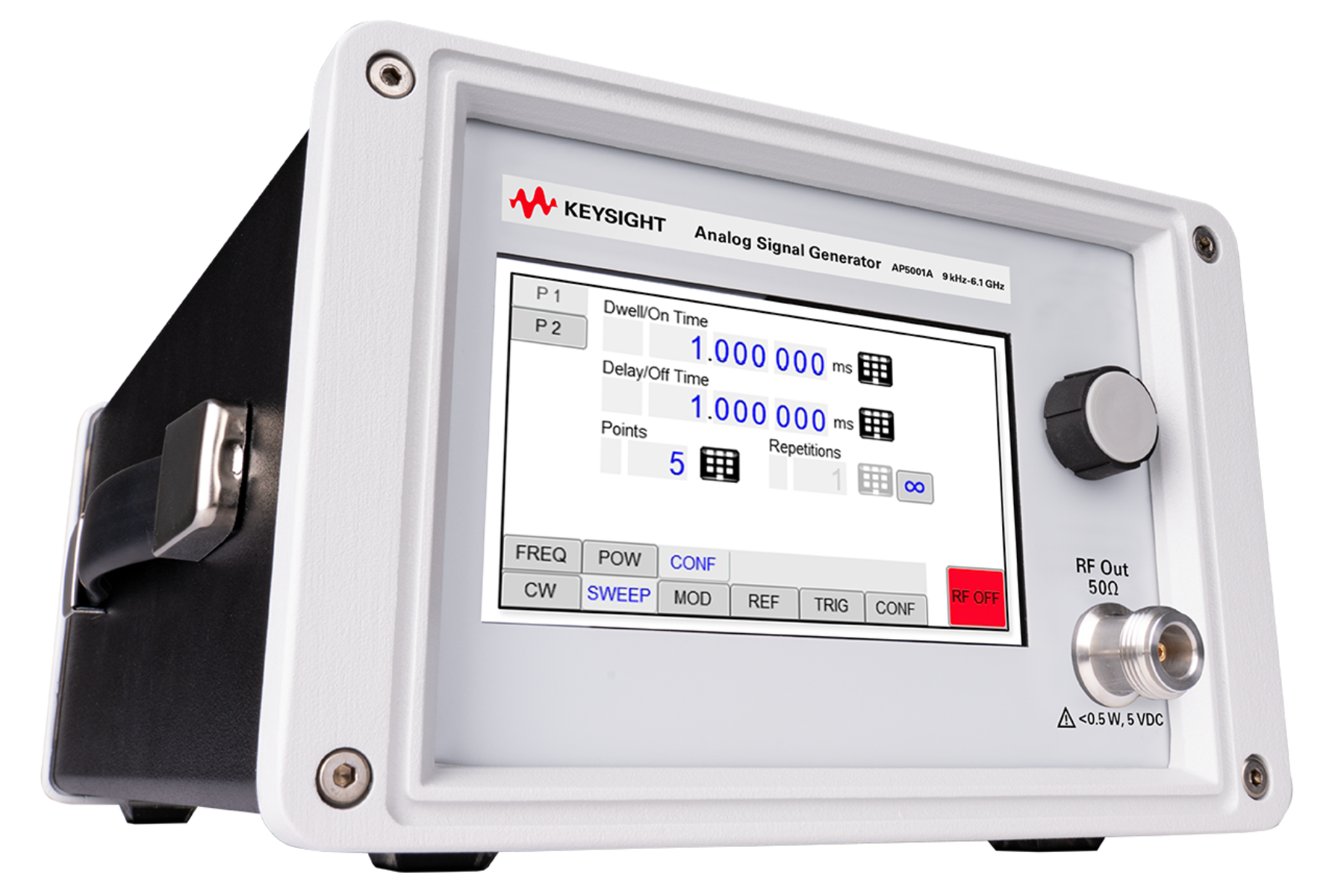

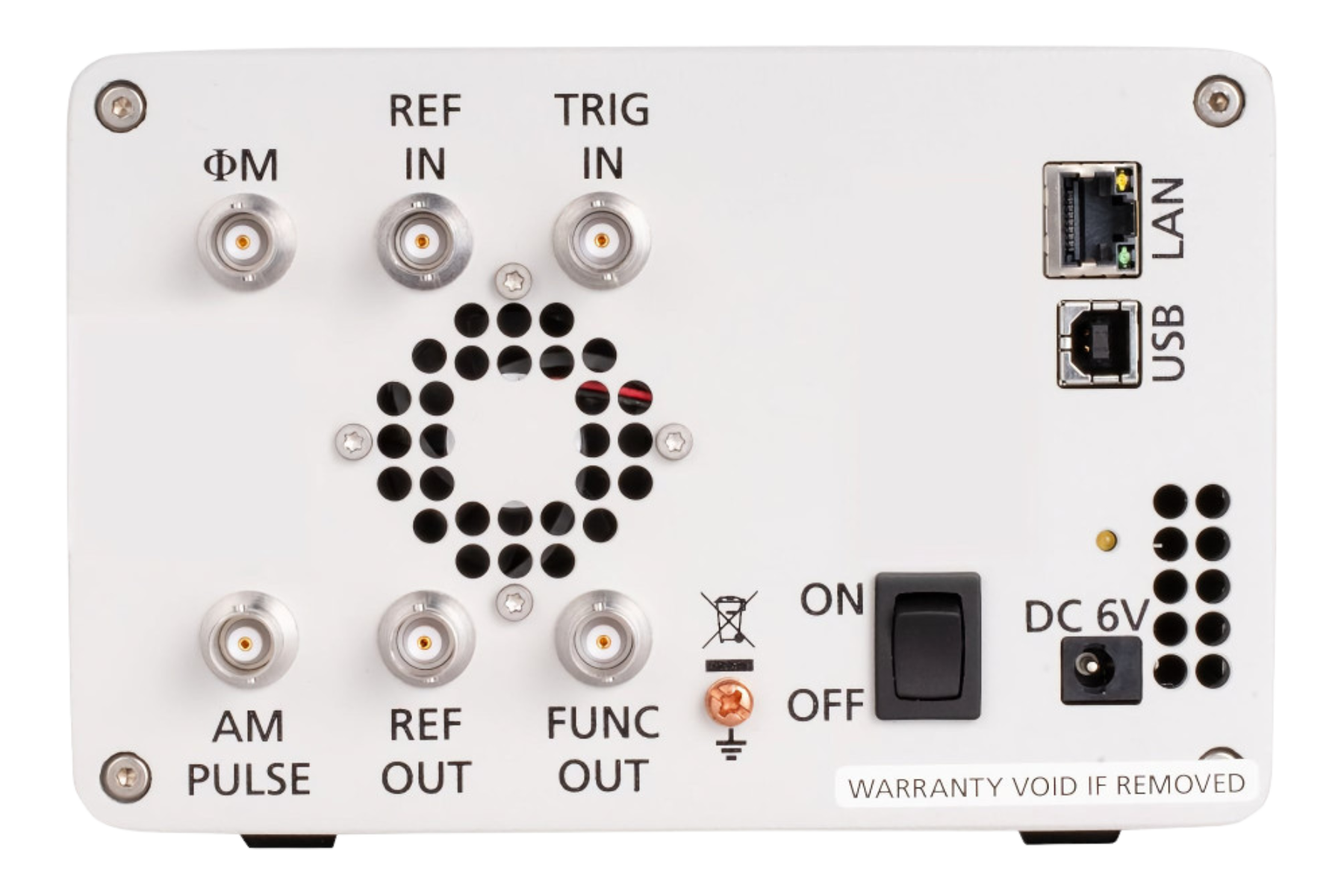

Keysight AP5001A Analog Signal Generator

9 kHz - 6.1 GHz

The Keysight AP5001A RF Analog Signal Generator covers frequency ranges of 9 kHz to 2, 4, or 6.1 GHz depending on the model. It features 0.001 Hz frequency resolution, –130 dBc/Hz typical phase noise at 20 kHz offset (500 MHz–1 GHz), and up to +17 dBm output power. Modulation capabilities include AM, FM, PM, and pulse, with support for simultaneous operation except FM and PM. The generator also supports sweep modes, list mode, pulse pattern modulation, and external/internal referencing, and is SCPI-controllable via USB, LAN, and optional GPIB.

Product Info Related Products

Model Frequency Ranges	AP5001A-502: 9 kHz - 2 GHz AP5001A-504: 9 kHz - 4 GHz AP5001A-506: 9 kHz - 6.1 GHz
Frequency Resolution	0.001 Hz
Output Power Range (Standard)	–30 dBm - +15 dBm +17 dBm (>2.5 GHz - 6.1 GHz) +10 dBm (≤50 MHz)
Output Power Range (Option 1E1)	–120 dBm - +15 dBm
Phase Noise	–130 dBc/Hz typical at 20 kHz offset (500 MHz–1 GHz)
Level Accuracy	±0.3 dB (–20 - +10 dBm) ±0.5 dB (–80 - –20 dBm) ±0.8 dB (< –80 dBm)
Modulation Types	AM, FM, PM, Pulse, Pulse Pattern (all simultaneously except FM + PM)
Modulation Rates	AM: 10 Hz - 50 kHz FM/PM: 1 Hz - 800 kHz Pulse: DC - 33 MHz
Spectral Purity	Harmonics: < –30 dBc Sub-harmonics: < –70 dBc Non-harmonic spurious: < –60 dBc
Digital Sweep Capability	Linear, logarithmic, random; 10 μs dwell time; up to 10,000 points
Internal Reference Output	10 MHz, ±40 ppb initial accuracy
Reference Input	8 MHz - 200 MHz, –5 - +13 dBm, 50 Ω
Remote Interfaces	USB 2.0, LAN, Optional GPIB
Form Factor Options	3U standard or 1U rack-mount (Option S1E)
Power Supply	6.3 VDC @ 20 W (typical); 100–240 VAC adapter included
Dimensions (W x L x H)	3U: 174 x 273 x 117 mm 1U (S1E): 426 x 460 x 42 mm
Weight	≤ 2.8 kg (3U); ≤ 6 kg (1U S1E)

Frequency range: 9 kHz to 2, 4, or 6.1 GHz (model-dependent)
Output power: –120 dBm to +17 dBm (with Option 1E1)
Phase noise: –130 dBc/Hz typical at 20 kHz offset
Modulation: AM, FM, PM, pulse, and pulse pattern
0.001 Hz frequency resolution
Digital sweep with up to 10,000 points
USB, LAN, and optional GPIB control
Internal 10 MHz reference with ±40 ppb accuracy
