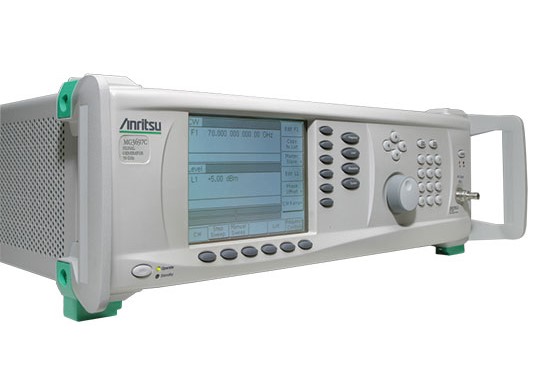

Anritsu MG3697C RF/Microwave Signal Generator
The Anritsu MG3697C RF/Microwave Signal Generator is part of the Anritsu MG3690C Series. With a frequency range of 2 GHz to 67 GHz, a 1.85 mm V(f) output connector, and stored setups, the Anritsu MG3697C offers the technology needed for excellent modulation performance. With an attenuator, the MG3697C model has a minimum leveled output power of -105 dBm. The Anritsu MG3697C RF/Microwave Signal Generator is easy-to-use and has a convenient 30 minute warm-up time.
| Model | MG3697C |
| Frequency Range | 2 GHz to 67 GHz |
| Output Connector | 1.85 mm V(f) |
| Stored Setups | Stores front panel settings Nine additional front-panel setups in a non-volatile RAM A system menu allows saving and recalling of instrument setups |
| Warm-Up Time | From Standby: 30 minutes From Cold Start (0°C): 120 hours to achieve specified frequency stability with aging Instruments disconnected from AC line power for more than 72 hours require 30 days to return to specified frequency stability with aging. |
| Power | 85 VAC to 264 VAC, 48 Hz to 440 Hz, 250 VA maximum |
| Dimensions (W x H x D) |
429 mm x 133 mm x 450 mm (17 in x 5.2 in x 18 in) |
| Weight | 18 kg (40 lb.) maximum |
- Part of the Anritsu MG3690C Series
- Frequency range of 2 GHz to 67 GHz
- 1.85 mm V(f) output connector
- Excellent modulation performance
- 30 minute warm-up time
SKU: ANRI-MG3697C
