Rohde & Schwarz SMF100A Signal Generator
Enlarge Image

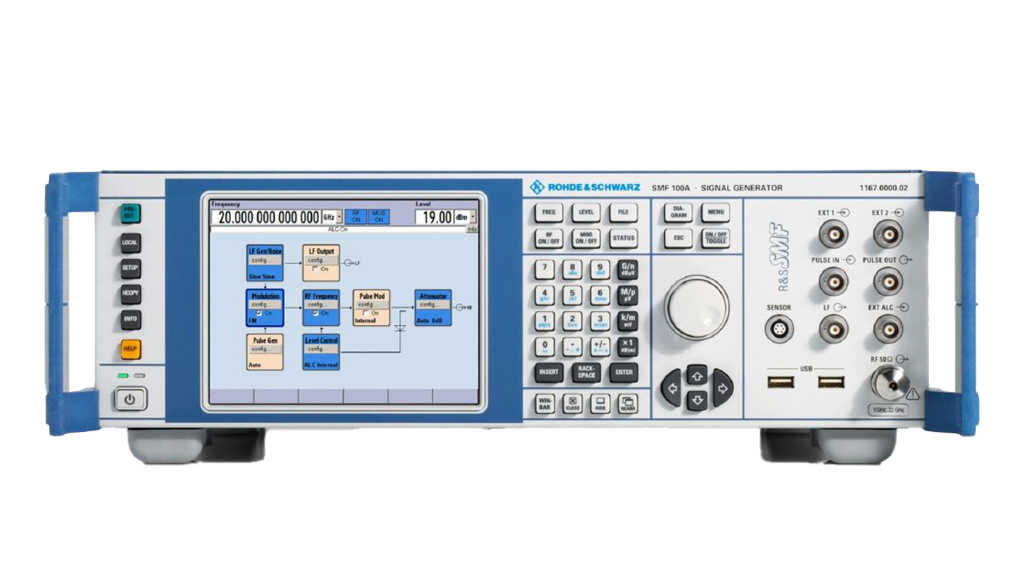

Rohde & Schwarz SMF100A
Request Quote Print Page
SMF100A Datasheet Specifications Supplemental Document

Signal quality, speed, and flexibility - these are decisive properties for a signal generator in the microwave range.

To meet even the highest of requirements, the R&S®SMF100A microwave signal generator was completely redesigned and newly developed. The result is a first-rate, state-of-the-art microwave signal generator that sets new standards. It thus covers the numerous fields of application encountered in R & D, production, service, maintenance, and repair.
Rohde & Schwarz SMF100A Features
  • Max. frequency range from 100 kHz to 43.5 GHz
  • Excellent SSB phase noise of typ. –120 dBc (at 10 GHz; 10 kHz carrier offset)
  • Very high output power of typ. +25 dBm
  • Unique pulse train generation
  • Versatile power analysis with additional R&S®NRP-Zxx power sensor
  • Ideal in all areas
    • R & D
    • Production
    • Service as well as maintenance and repair
  • Remote control via GPIB, Ethernet or USB
  • Innovative block diagram operations
Rohde & Schwarz SMF100A Applications

All-Purpose Applications:

  • Frequency range 100 kHz to 43.5 GHz
  • Frequency, level, and LF sweeps
  • AM, broadband FM, φM, pulse modulation
  • Two multifunction generators up to 10 MHz
  • Usable for scalar network analysis with R&S®NRP-Zx power sensor connected

Aerospace & Defense Applications

  • Optional pulse modulator with excellent data:
    • >80 dB on/off ratio
    • <10 ns rise/fall time
    • <20 ns pulse width
  • Optional pulse generator
  • Optional removable compact flash disk to meet high security requirements
  • The pulse generator can generate pulse trains for radar testing (R&S®SMF-K27 option), i.e. a combination of pulses with different widths and spacings between the pulses
