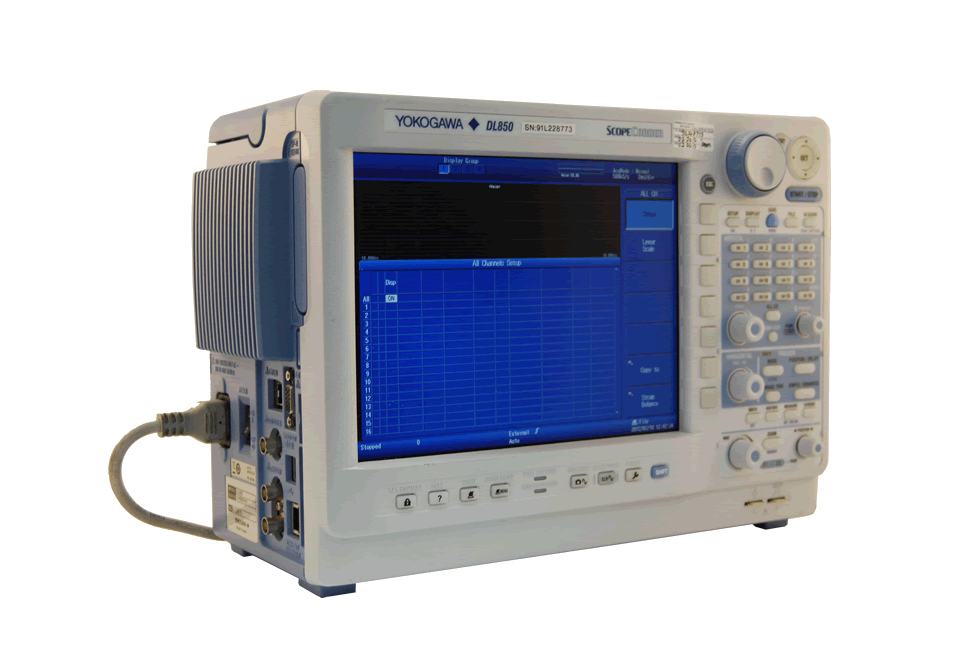

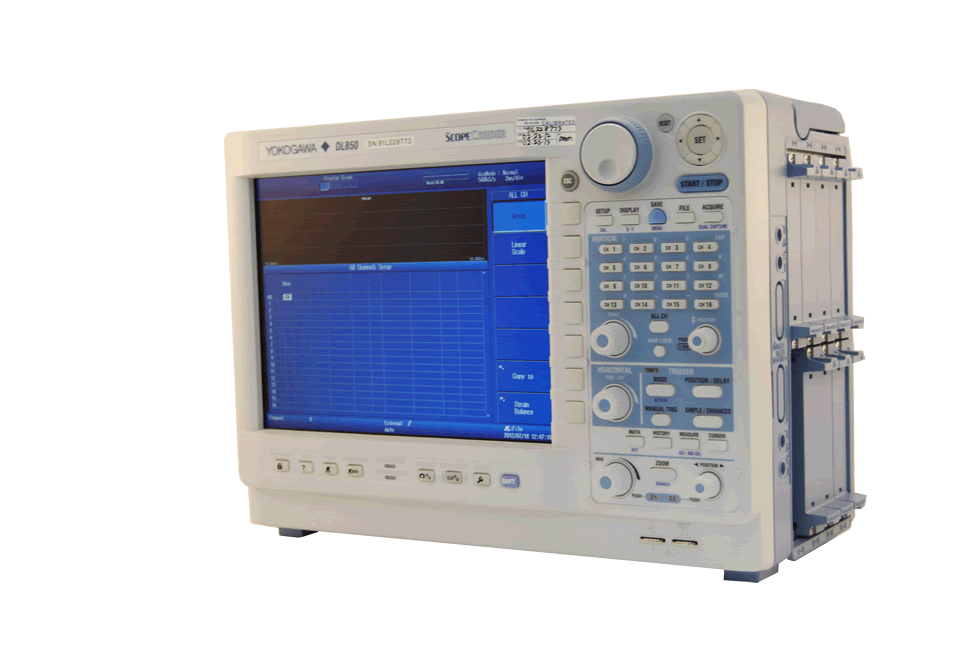

The Yokogawa DL850 ScopeCorder 100 MS/s, 8 slots is a modular, waveform recording instrument that can measure voltage, current, strain, acceleration, and other phenomena-- simultaneously. With high speed sampling, high isolation withstand voltage, and multichannel measurements, the DL850 offers powerful support in the development, evaluation, and quality control of energy efficient devices.
The DL850 ScopeCorder is an ideal tool for measuring physical and electrical parameters in application sectors such as the automotive industry, mechatronics, transport, power electronics and alternative energy. A dedicated version for the automotive industry - the DL850V Vehicle Edition - includes a module for monitoring the CAN in-vehicle serial bus.
||High-speed 10 MS/s 12-Bit Isolation Module (2 ch)
||High-speed 1 MS/s 16-Bit Isolation Module (2 ch)
||High-voltage 100 kS/s 16-Bit Isolation Module (with RMS, 2 ch)
||Universal Module (2 ch)
||Temperature/high-precision voltage Module (2 ch)
||High-speed 100 MS/s 12-Bit Isolation Module (2 ch)
Yokogawa DL850 Features
- High-speed (up to 100 MS/s), High Resolution (up to 16-bit), Isolated (up to 1kV*1)
- Multi-channel, up to 128 voltage or 128 logic bits
- Continuous hard disk recording at 100 kS/s simultaneously on 16 channels*2
- CAN bus monitoring and trend waveform display (DL850V only)
- 15 plug-in modules
Yokogawa DL850 Accessories
||10:1 Probe (for Isolated BNC Input)
