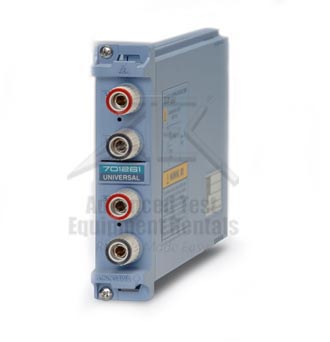

Yokogawa 701261 Universal Voltage & Tempurature Input Module

Yokogawa 701261 Universal Voltage & Tempurature Input Module
Enlarge Image
Request Quote Print Page

The Yokogawa 701261 Universal Voltage and Temperature Module (2 ch) is used with the DL750, DL750P, SL1400 & SL1000 mainframes. Thermocouples (K, E, J, T, L, U, N, R, S, B, W, iron-doped gold/chromel).


Specifications:

  • Input channels: 2
  • Input signals: Voltage or temperature (thermocouple)
  • AAF (anti-aliasing filter): none
  • Input couplings: TC (thermocouple), DC, AC, GND
  • Input types: Isolated unbalanced
  • Maximum sample rate Voltage: 100 kS/s
  • Data updating rateTemperature: 500 Hz
  • A/D conversion resolution: Voltage, 16 bits (24,000 LSB/range), temperature, 0.1°C resolution
  • Frequency range (-3 dB): Voltage DC, up to 40 kHz
  • Frequency range (-3 dB): Temperature DC, up to 100 Hz
  • Input range Voltage (1:1): 50 mV to 200 V range (10 div display, steps of 1, 2, or 5)
  • Input range Temperature K, E, J, T, L, U, N, R, S, B, W, iron doped gold/chromel
  • Effective measurement range (voltage): 2 times the setting range
  • DC offset (voltage): 1/2 the setting range
  • DC accuracy: (voltage) ± (0.25% of range)
  • Input connector: Binding post
  • Input impedance: Approximately 1 M-ohm
  • Input filters Voltage: OFF, AUTO (AAF), 4 kHz, 400 Hz, 40 Hz (-12 dB, oct, except AUTO)
  • Input filters Temperature: OFF, 30 Hz, 8 Hz, 2 Hz
