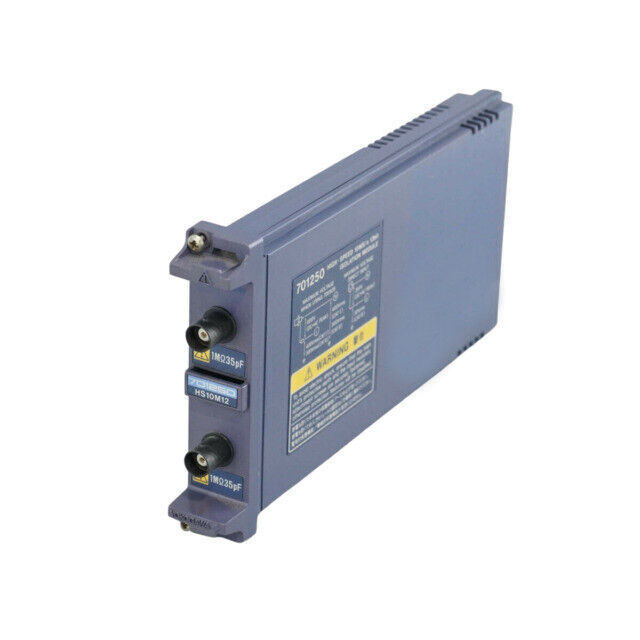

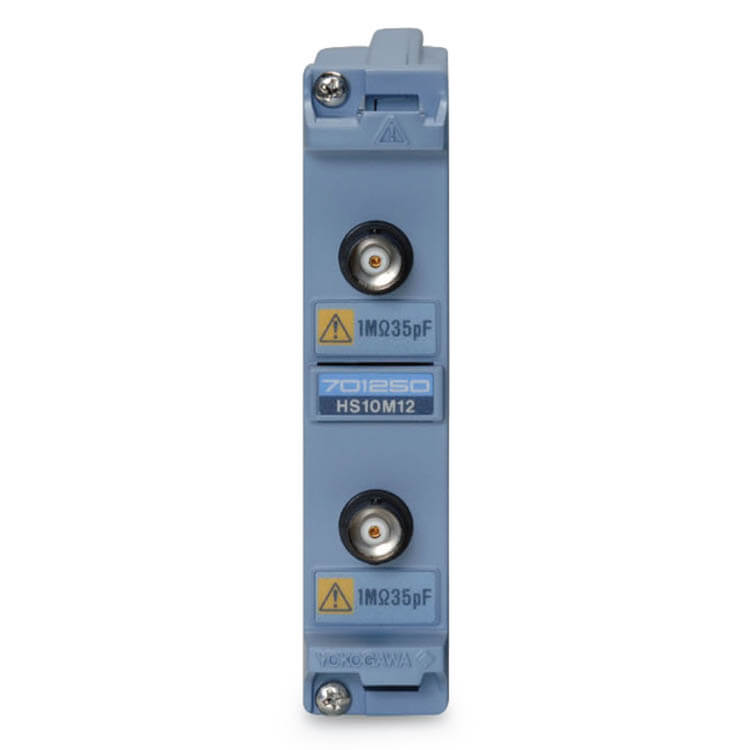

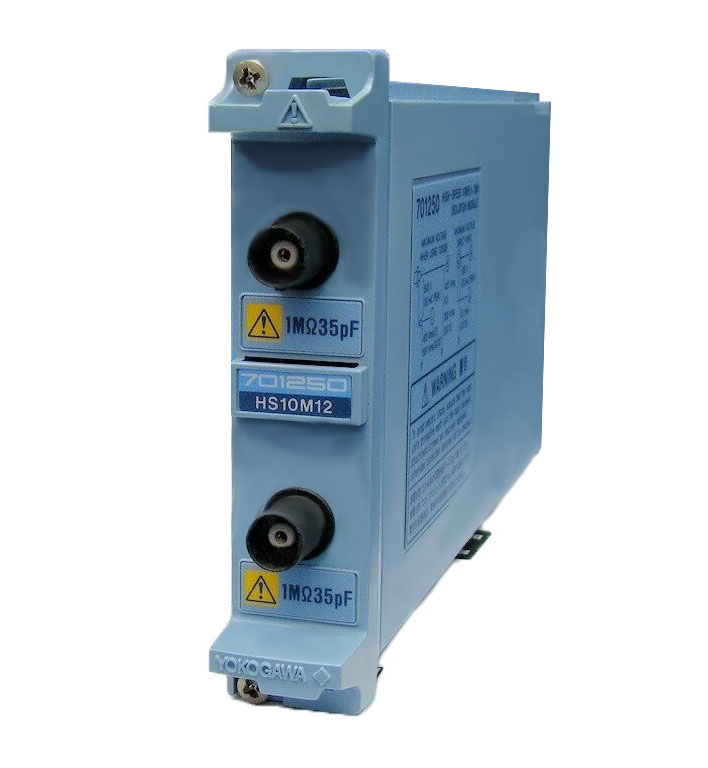

The Yokogawa 701250 High-Speed 10 Ms/s 12-Bit Isolation Module (2 ch) is used with the DL750, DL750P, SL1400 & SL1000 mainframes. Features high Noise Immunity.


Specifications:

  • Input channels: 2
  • Input couplings: AC, DC, GND
  • Maximum sample rate: 10 MS/s
  • A/D conversion resolution: 12 bits (1,500 LSB/range)
  • Input type: Isolated unbalanced
  • Frequency range (-3 dB): DC, up to 3 MHz
  • Input range (10:1): 500 mV to 2 kV (in steps of 1, 2, or 5)
  • Input range (1:1): 500 mV to 200 V (in steps of 1, 2, or 5)
  • Effective measurement range: 2 times the setting range
  • DC offset: 1/2 the setting range
  • Maximum input voltage: (1 kHz or less)
  • DC accuracy: ±(0.5% of range)
  • Input impedance: 1 M-ohm ±1%, approximately 35 pF
  • Connector type: Isolated type BNC connector
  • Input filter: OFF, 500 Hz, 5 kHz, 50 kHz, 500 kHz
