Yokogawa 701251 High Speed Isolation Input Module

Larger

Categories

Documents

Specifications

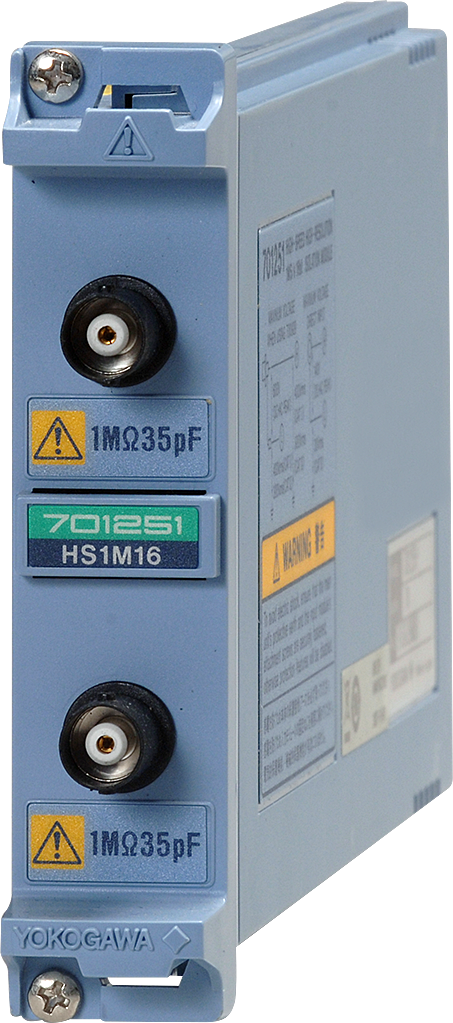

High-Speed 1 MS/s 16-Bit Isolation Module (701251) High resolution inputs combined with high-sensitivity (1 mV/ div). 2 Channel Input Module for the Yokogawa DL750

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Specifications

Input channels 2
Input couplings AC, DC, GND
Maximum sampling rate 1 MS/s
A/D conversion resolution 16 bits (2400 LSB/div)
Input type Isolated unbalanced
Frequency range (3 dB)1 DC, up to 300 kHz (20 V/div to 5 mV/div)
Input range (10:1) 10 mV/div to 200 V/div (in steps of 1, 2, or 5) (1:1) 1 mV/div to 20 V/div (in steps of 1, 2, or 5)
Maximum input voltage (1 kHz or less) In combination with 700929 (10:1) 600 V (DC + AC peak)
Direct input (1:1) 6, 10 140 V (DC + AC peak)
Maximum allowable in-phase voltage In combination with 700929 (10:1) 400 Vrms (CAT I), 300 Vrms (CAT II)
In combination with 701901+701954 (1:1) 400 Vrms (CAT I), 300 Vrms (CAT II)
Main unit only (1:1) 42 V (DC + AC peak) (CAT I and CAT II, 30 Vrms)
DC accuracy 5 mV/div to 20 V/div ±(0.25% of 10 div) 2 mV/div ±(0.3% of 10 div) 1 mV/div ±(0.5% of 10 div)
Input impedance 1 MW ± 1%, approx. 35 pF
Connector type Isolated type BNC connector
Input filter OFF, 400 Hz, 4 kHz, 40 kHz
Temperature coefficient
Zero point 5 mV/div to 20 V/div: ±(0.02% of 10 div)/°C (typical value) 2 mV/div: ±(0.05% of 10 div)/°C (typical value) 1 mV/div: ±(0.10% of 10 div)/°C (typical value)
Gain 1 mV/div to 20 V/div: ±(0.02% of 10 div)/°C (typical value)
