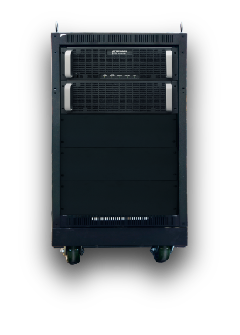

Image of AE Techron 8508 Amplifier

AE Techron 8508 Amplifier

DC - 50 kHz, 4 - 20 kW

The AE Techron 8508 Amplifier offers a frequency range of DC - 50kHz and a power of 4 - 20kW. This device has a maximum continuous output current of 120Arms, and a surge rating of 2x power at up to 400Vp or 300A. Additionally, it has a slew rate of 60V/μs and a voltage of 0 - 250Vrms and 0 - 350VDC.

Product Info Available Add-Ons Related Products

Maximum Continuous Output Current	120A RMS
Surge Rating	2X power at up to 400 VP or 300A
Apparent Power Rating	Up to 5X continuous power rating at up to 400 VP or 300A
Supply Voltage	Three-phase, 208V ±10%, 30A, 50/60 Hz; 400V ±10%, 15A version available
Dimensions (HxWxD)	36.5 x 21.0 x 30.75 inches (92.7 x 53.3 x 78.1 cm)

Bandwidth: DC - 50 kHz
Voltage: 0 - 250 VRMS; 0 - 350 VDC
Current: 60 - 300 ARMS
Distortion: 0.1%
Power: 4 kW - 20 kW*
Power levels up to 5X rated power when driving reactive loads
High power efficiency and density

Generic Standards:

Manufacturer-Specific Standards:

Audi I EE-32 (2006-06)
BMW GS 95003-2 (2010-01)
BMW GS 95003-3 (2010-01)
BMW GS 95024-2-1 (2010-01)
BMW GS 95024-2-2 (2011-01)
Case New Holland ENS0310 (12-2-2010)
Chrysler CS-11809 (2009-05-29)
Chrysler CS-11979 (2010-04-13)
Claas CN 05 0215 (2004-12)
Cummins 14269 (06201-028)
Cummins 14387 (102020-119)
DAF BSL-003 (1998-12)
DAF BSL-006 (2009-04)
Daimler Chrysler DC-10842 (2003-12)
Daimler Chrysler PF-9326 Change D
Fiat 9-90110 Issue 13 (2007-03)
Ford CS-2009.1 (2-11-2010)
Ford FMC 1278
General Motors GMW3172_H (July 2010)
Honda 7794Z-SAAA-000 (28.12.2004)
Hyundai ES 39110-00 (2005-08)
Hyundai ES 95400-10 (2007-11-14)
Hyundai ES 96100-02 (2006-11-16)
Mazda MES PW67600 (1995-07)
Mitsubishi ES-X82010 Rev Q (2007-01)
Mitsubishi ES X82115 Rev C (2009-03)
Nissan 28400NDS02 Rev 3 (1999-07)
Nissan 28400NDS03 Rev 3 (2005-08)
Nissan 28401NDS02 Rev 4 (2008-08)
Toyota TSC70212G (2007-06)
Volkswagen VW 80101 (2009-03)
Volkswagen VW 80000 (2009-10)

SKU: AETE-8508
