EM Test EFT 500N5.5 Electrical Fast Trasient/Burst Immunity Test Generator, 4,8kV, 1MHz

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent EM Test EFT 500N5.5 Electrical Fast Trasient/Burst Immunity Test Generator, 4,8kV, 1MHz for IEC 61000-4-4
Enlarge Image

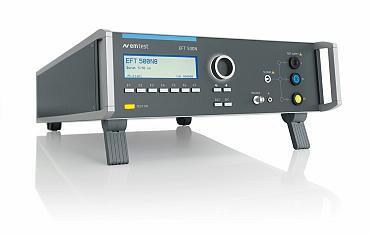

EM Test EFT 500N5.5
Request Quote Print Page
EFT 500N5.5 Datasheet
The EM Test EFT 500N5.5 Electrical Fast Transient/Burst Immunity Test Generator, 4,8kV, 1MHz is a state-of-the-art EFT/Burst tester with a built-in coupling/decoupling network for single phase mains supply lines and a HV terminal to connect a capacitive coupling clamp. The spike frequency can be varied from as low as 100Hz up to 1,000kHz. The EFT 500N5.5 is capable to generate 10,000 spikes per second or up to 1,000 spikes per burst.

Its performance fully complies with IEC 61000-4-4 Ed.2:2004. Pre-programmed Standard Test routines and a number of selected User Test routines make the EFT 500N5.5 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.
  • HFK: Coupling Clamp as per IEC 61000-4-4
  • KW 50: 50ohm matching resistor for verification
  • KW 1000: 1,000ohm matching resistor for verification
  • CA EFT kit: Kit for burst pulse verification consisting of KW50, KW1000 and adapter for DUT port with plastic case for storage
  • A6dB: 6dB attenuator
  • CNI 503: Coupling/decoupling networks, 3x440V/32-63-100A
  • iec.control: Software to control the test, including standard library, test report facility and data conversion generator
EM Test EFT 500N5.5 Features
  • 10,000 pulses/sec.
  • 4.8kV Burst voltage
  • Spike frequency up to 1MHz
  • Built-in 1ph or 3ph coupler up to 50A
  • Pulse verification acc. to Ed.2 on each coupling path
EM Test EFT 500N5.5 Specs
  • 1-phase coupler, 250V/32A
  • Test Level
    • Voltage range: 200V - 4,800V
    • Into 50ohm: 100V - 2,400V
    • Pulse shape: Into 50ohm load
    • Rise time tr: 5ns ± 30%
    • Pulse width td: 50ns ± 30%
    • Pulse shape: Into 1,000ohm load
    • Rise time tr: 5ns ± 30%
    • Pulse width td: 35ns to 150ns
    • Source impedance: 50 Ohm ± 20%
    • Polarity: Positive/negative
  • Trigger
    • Release of Burst: Automatic, manual, external
    • Burst duration: Td = 0.1ms - 999.9ms
    • Burst repetition rate: Tr = 10ms - 9,999ms
    • Spike frequency: f = 0.1kHz - 1,000kHz
    • Test duration:
      • T = 0:01 min - 99:59 min
      • T > 99:59 min - endless
  • Output
    • Direct: Via HV coax connector
    • Coupler: L, N and PE, all combinations
    • DUT supply AC:
      • single phase: 250V/32A, 50/60Hz
      • three-phase: 3x440V/32A or 50A,
      • 50/60Hz
    • DUT supply DC: 250V/10A
    • DUT supply: Other DUT supply voltages on request
    • CRO Trigger: 15V trigger signal for oscilloscope; burst duration and pulse frequency can be checked
