Keysight AGIL-3200B VHF Oscillator, 10 - 500MHz

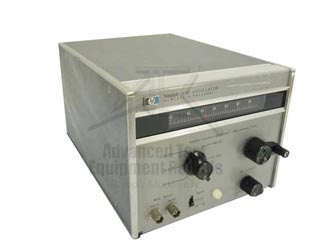

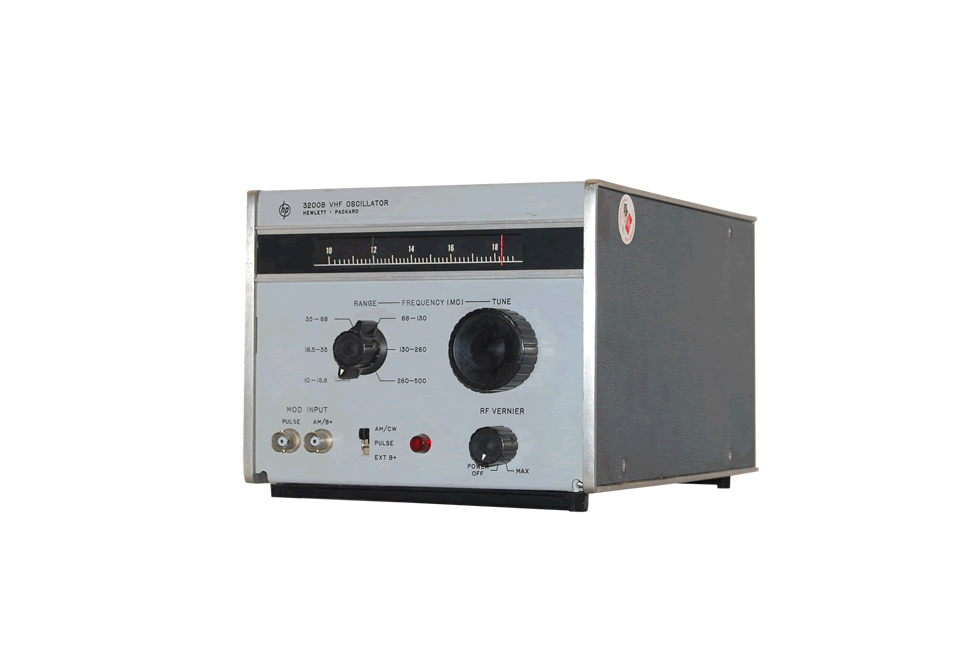

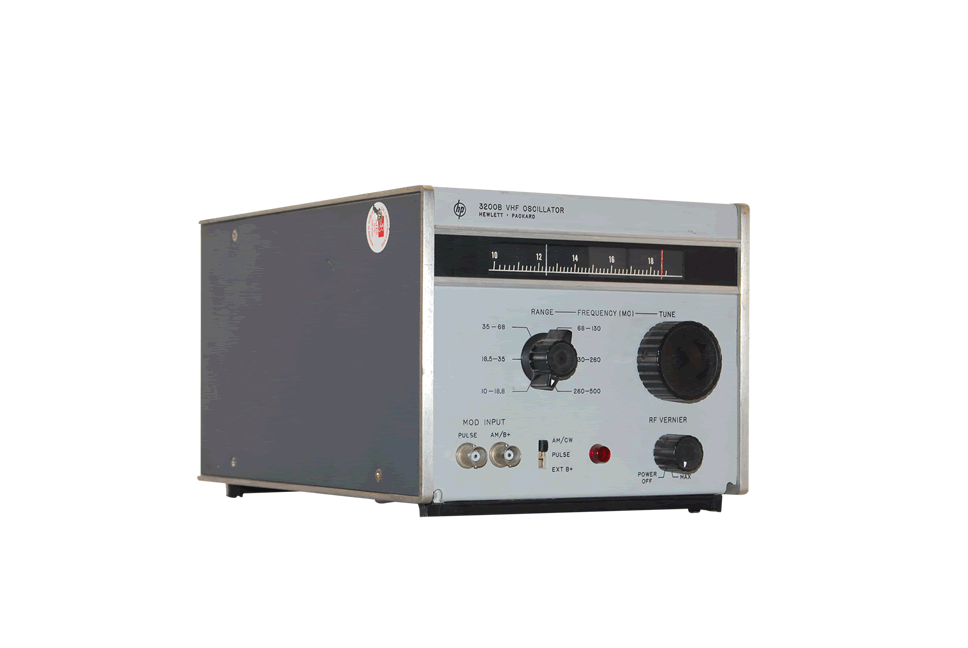

HP/Agilent 3200B VHF Oscillator, 10Hz to 500MHz
Enlarge Image
HP/Agilent 3200B VHF Oscillator, 10Hz to 500MHz HP/Agilent 3200B VHF Oscillator, 10Hz to 500MHz
Keysight 3200B
Request Quote Print Page
Manual

The 3200B VHF Oscillator is designed for general purpose laboratory use in the frequency range of 10 to 500 MHZ. Typical applications include: receiver and amplifier testing,; driving bridges, slotted lines, antenna and filter networks; and use as a local oscillator for heterodyne detector systems. It is completely self-contained and housed in a modular cabinet which can be adapted for standard rack mounting.


A push-pull oscillator is housed in a rugged aluminum casting for maximum stability and extremely low leakage. Six frequency ranges are provided for adequate bandspread on the slide-rule dial. Amplitude and pulse modulation may be obtained by the use of suitable external sources. The RF output os coupled through a wave guide below cutoff variable attenuator.
