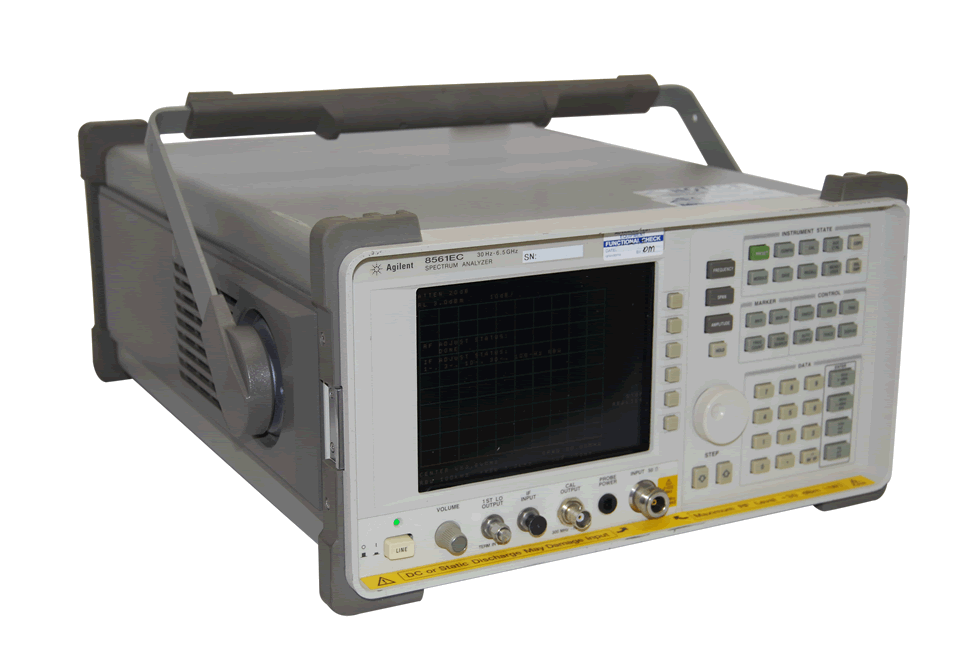

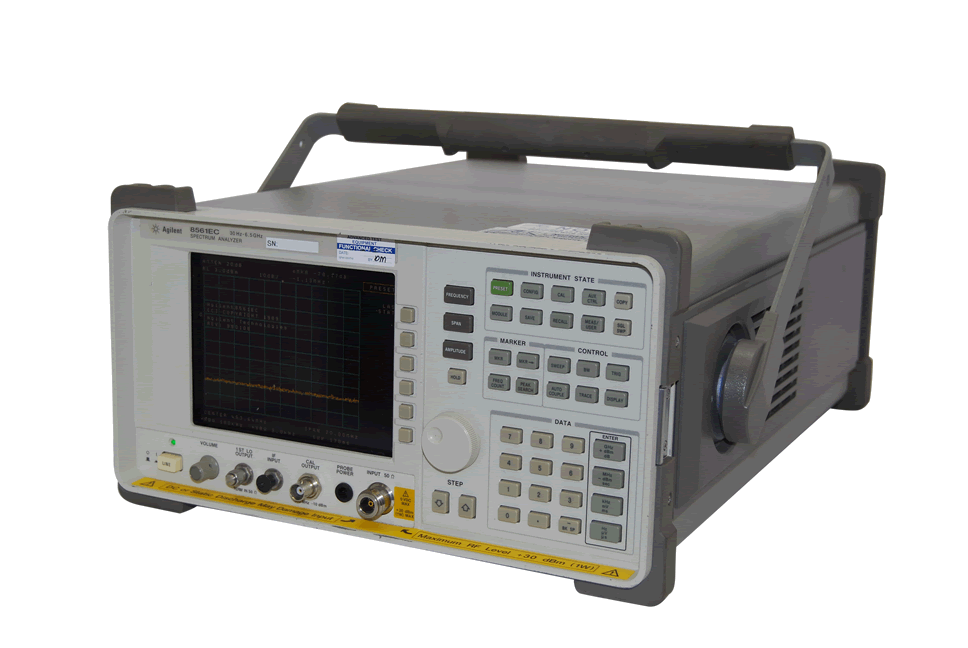

HP Agilent 8561EC Spectrum Analyzer, 30 Hz-6.5 GHz

Rent HP/Agilent 8561EC Portable Spectrum Analyzer, 9 kHz - 26.5 GHz
Enlarge Image
Rent HP/Agilent 8561EC Portable Spectrum Analyzer, 9 kHz - 26.5 GHz Rent HP/Agilent 8561EC Portable Spectrum Analyzer, 9 kHz - 26.5 GHz Rent HP/Agilent 8561EC Portable Spectrum Analyzer, 9 kHz - 26.5 GHz
Request Quote Print Page
Manual Datasheet

Agilent moves beyond the over-sized, more expensive benchtop spectrum analyzers of yesterday and developed a notable replacement- the Agilent 8561EC RF Spectrum Analyzer. Down-sized to a portable workhorse, the 8561EC maintains robust measurement capability and performance standards and even brings additional funtionality to radio frequency spectrum analysis. With its color GUI display, the 8561EC provides high resolution graphic data of an equally impressive bandwidth resolution of 1 Hz.


Agilents 8561EC is designed with phase noise, sensitivity, synthesized tuning, and a broad dynamic range. Adjacent-channel-power (ACP) testing is built-in as a packaged solution. Bandwidth occupancy % and digital modulation are used in measuring burst carrier signals to accomplish ACP testing with accuracy and ease. Additionally, pulsed RF, interleaved, time-division multiple access, and burst-modulated time-varying signals can be measured painlessly through the time-gated signal analysis function of the 8561EC.



HP/ Agilent 8561EC Features:

  • Continuous 30 Hz to 6.5 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements
  • Precision timebase and 1 Hz counter resolution
  • MIL-T-28800 rugged MIL design
  • Intermodulation from 103-107dB
  • 9.6 X 13 cm color display
  • Time-gates response in Edge and Level Modes
