Keysight 8566B 100 Hz - 22 GHz Laboratory Spectrum Analyzer

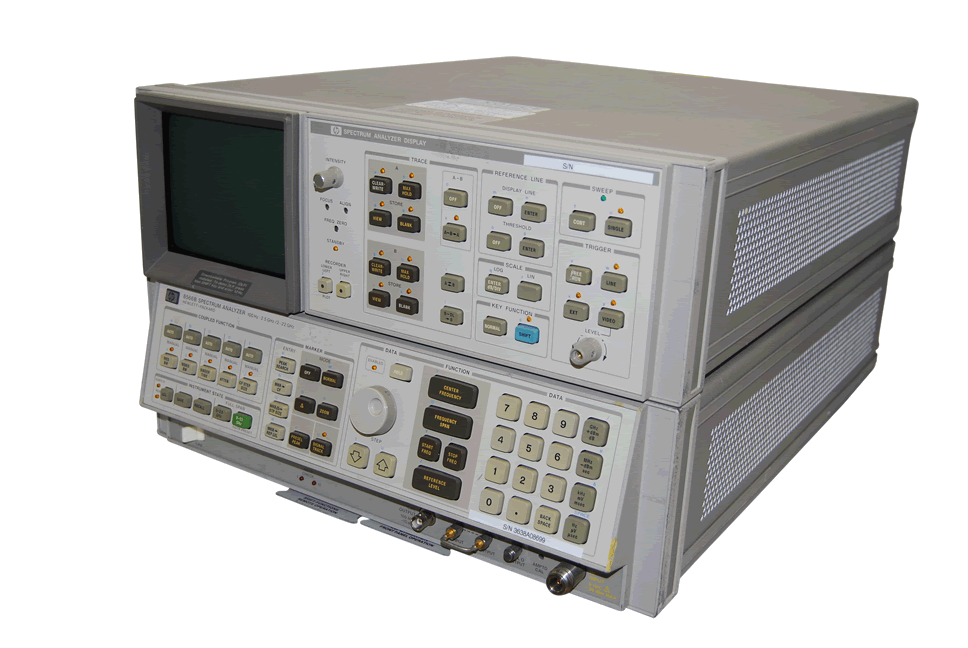

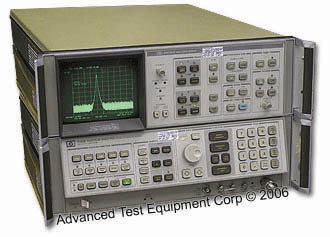

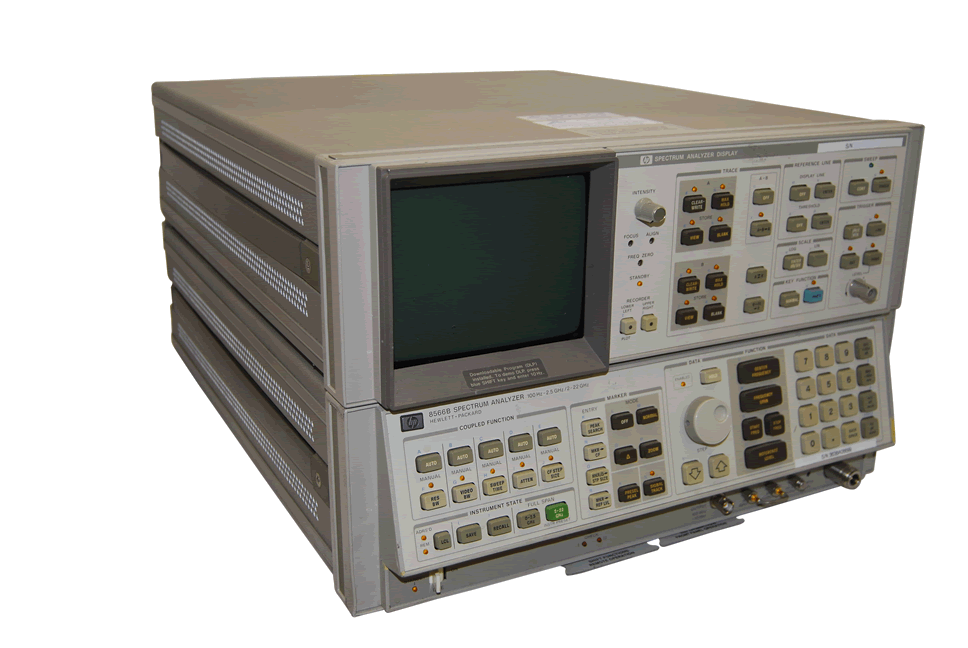

HP/Agilent 8566B Laboratory Spectrum Analyzer
Enlarge Image
HP/Agilent 8566B Laboratory Spectrum Analyzer HP/Agilent 8566B Laboratory Spectrum Analyzer HP/Agilent 8566B Laboratory Spectrum Analyzer
Keysight 8566B
Request Quote Print Page
Manual Datasheet

The Keysight 8566B Laboratory Spectrum Analyzer is a high-performance instrument, ideal for bench or ATE applications. The frequency ranges up to 22 GHz, using internal mixing, can be extended up to 325 GHz. A synthesized local oscillator produces counter-like accuracy at microwave and millimeter-wave frequencies. A 10-Hz resolution bandwidth and excellent frequency stability allow difficult measurements such as line-related sideband characterization at 22 GHz.


Option 002: Turbo Option for faster measurements



Specifications:

Frequency Range 100 Hz-22 GHz
18.6-110 GHz w/ HP 11970 mixers
110-325 GHz w/ other mixers
Frequency Response 2 - 12.5 GHz ±1.7 dB
12.5 - 20 GHz ±2.2 dB
Amplitude Range -134 to +30 dBm
Frequency Accuracy ±267 Hz
Resolution Bandwidth 10 Hz to 3 MHz
