Keysight 8568B Spectrum Analyzer

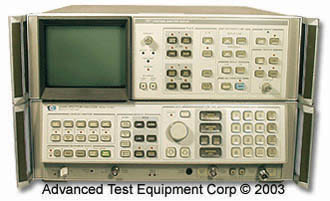

HP/Agilent 8568B Spectrum Analyzer
Enlarge Image
Keysight 8568B
Request Quote Print Page
Manual Datasheet Brochure
20 Hz - 18 GHz, Spectrum Analyzer

Keysight 8568B Specs
  • Frequency Range:
    • 100Hz-1500MHz DC coupled
    • 100kHz-1500MHz AC coupled
    • 20Hz to 2GHz with RF Preselector (to 18 GHz with RFP bypass)
  • Frequency Span: 100Hz to 1500MHz + zero span
  • Resolution Bandwidth(-3dB) 10Hz-3MHz in 1,3,10 sequence
  • Video Bandwidth: 1 Hz-3MHz in 1,3,10 sequence
  • Phase Noise: -107dBc
  • Amplitude Range: -135 to +30 dBm
  • Calibrator Uncertainty: ±0.3dB
  • Residual Response: <-105dBm
  • Gain Compression: <0.5dB
  •
  • Sweep Time:
    • Zero Span: 1 ms to 1500 s
    • Swept: 20 ms to 1500 s
  • Residual FM (pk to pk, <100kHz span): <3Hz
