Keysight 86130A BitAlyzer® Error Performance Analyzer

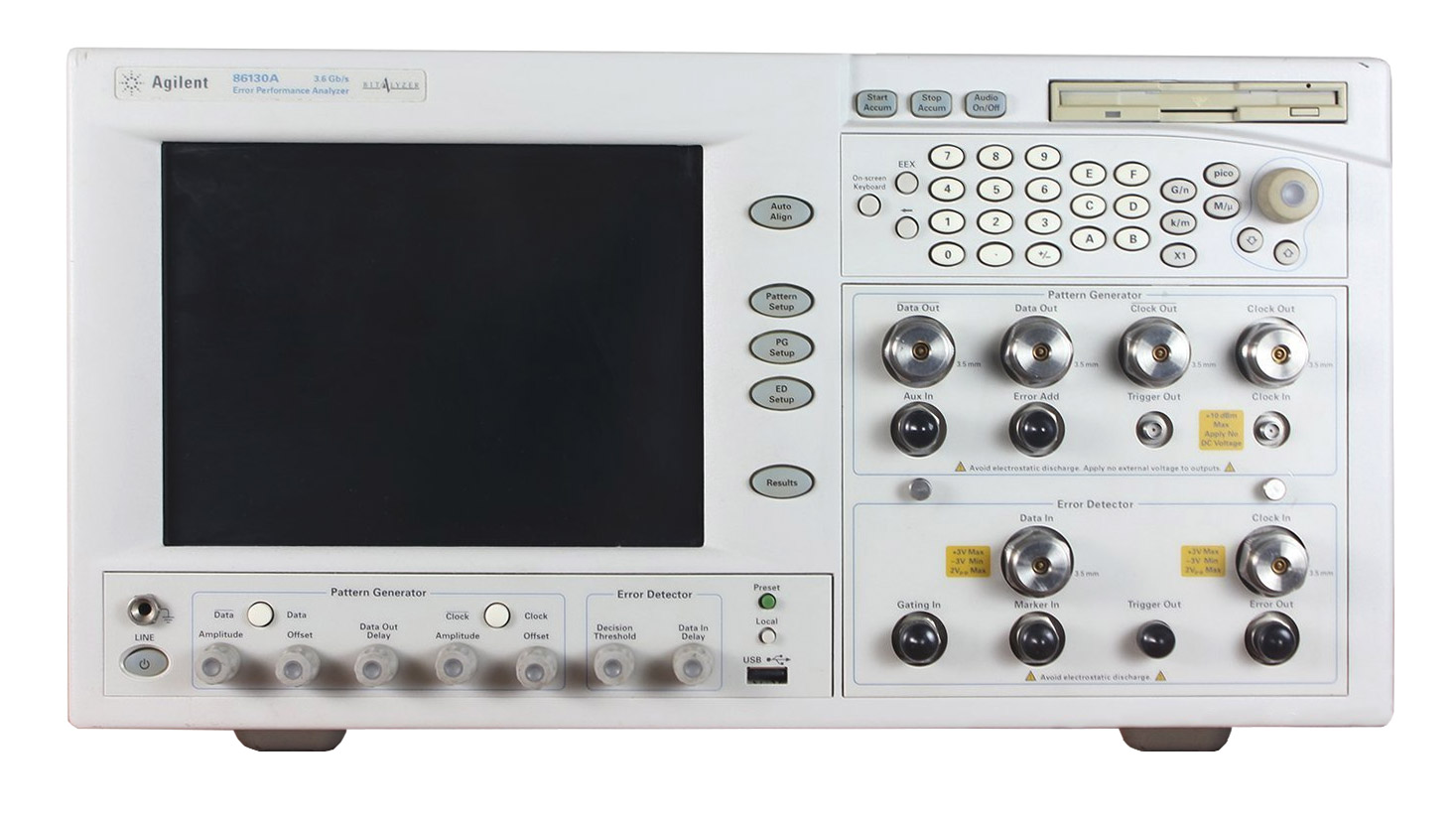

HP/Agilent 86130A BitAlyzer Error Analyzer
Enlarge Image
Keysight 86130A
Request Quote Print Page
Manual

Features:

  • Integrated pattern generator
    • Test high-speed digital components
    • Test system hardware
    • Customize your own patterns
  • Error Detector
    • Reveal and isolate the periodic error behavior such as;
      • EMI
      • FEC interleave selection
      • Manufacturing troubleshooting
      • Electro-mechanical interference
    • Track down defects using error correlation analysis
      • Mux/demux testing
      • Magnetic/optical recording
      • Hardware fault isolation


Specifications:

  • Bit Rate: 50 Mbit/s to 3.6 Gbit/s
    • 3.0 Gbit/s with internal clock
  • Data Output Rise Time: Less than 30 ps typical
  • Jitter: 12 ps typical
  • Clock/Data Delay: Up to 10 ns; resolution 1 ps
