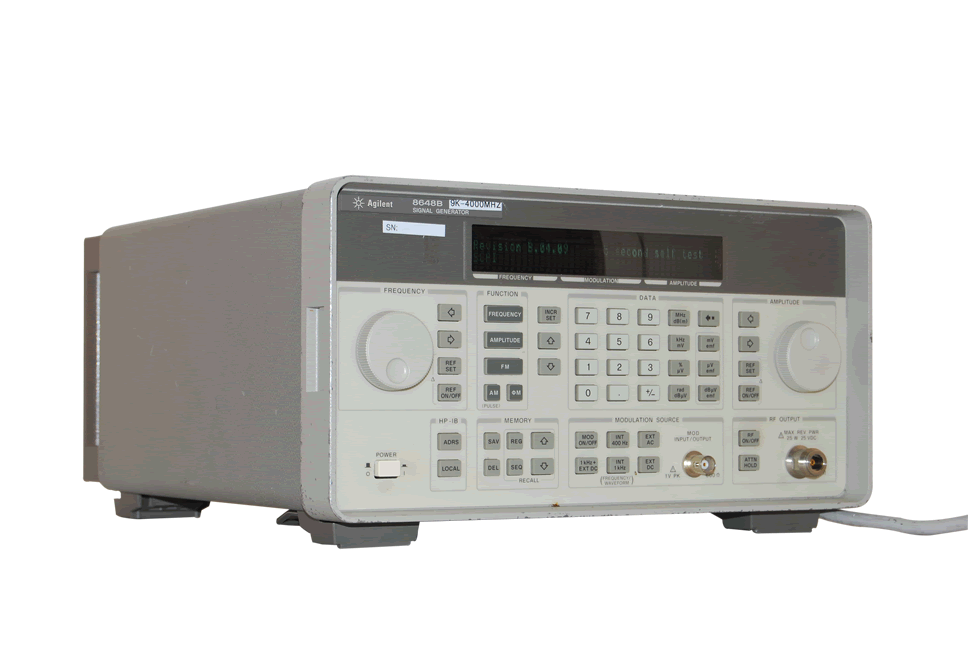

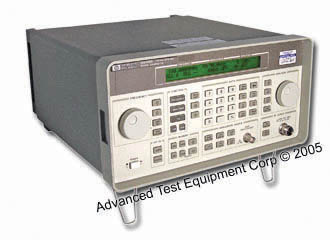

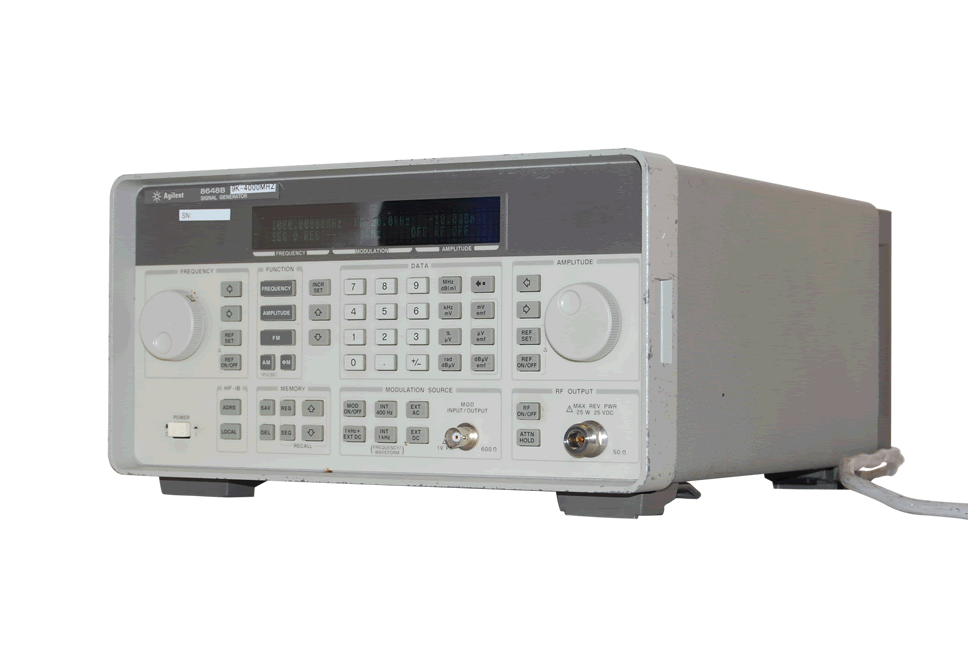

Keysight 8648B-1EA Synthesized RF High Power Signal Generator

HP/Agilent 8648B-1EA 9kHz-100kHz-2GHz Synthesized RF Signal Generator w/High Power
Enlarge Image
HP/Agilent 8648B-1EA 9kHz-100kHz-2GHz Synthesized RF Signal Generator w/High Power HP/Agilent 8648B-1EA 9kHz-100kHz-2GHz Synthesized RF Signal Generator w/High Power HP/Agilent 8648B-1EA 9kHz-100kHz-2GHz Synthesized RF Signal Generator w/High Power
Keysight 8648B
Request Quote Print Page
Manual Datasheet Specifications

The Keysight 8648B 9k-2GHz Synthesized RF Signal Generator is ideal for manufacturing high-volume products such as cordless telephones, pagers and two-way radios. Designed for semi-automated receiver test, and a variety of general purpose applications, the Agilent 8648B starts with the basic capabilities of the 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 2 GHz. While economical, the Agilent 8648B is built to stringent quality standards, promoting reliability and measurement repeatability.


Option 1EA: High Power



Features:

  • Economical 2.0 GHz synthesized signal generator
  • Superior level accuracy
  • Wide frequency and output power coverage
  • Optional pulse modulation and high power
  • Remote and memory interfaces for semi-automated testing
  • Simple, dependable operation



Specifications:

Frequency 100 kHz to 2000 MHz
Resolution 0.001 Hz with a 10 Hz Display
Switching Speed (Typical) <1001 MHz; <75 ms; ≥1001 MHz; <100 ms
Accuracy (after one hour warm-up) Typically ±3 x 106 x carrier frequency in Hz, ±0.15 x 106 x carrier frequency in Hz for option 1E5 (typically ±0.072 x 106 x fc)
Aging Standard Timebase: < ±2 ppm/yr
Option 1E5: < ±0.1 ppm/yr, < ±0.005ppm/day
Temperature Standard Timebase: < +1 ppm
Option 1E5: <±0.001ppm
Output 10 MHz, typically >0.5Vrms into 50 ohms
