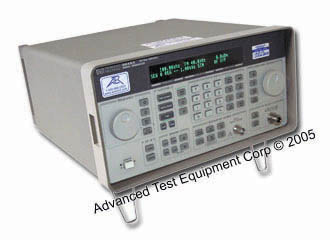

HP Agilent 8648C RF Signal Generator, 9 kHz - 3.2 GHz

HP Agilent 8648C RF Signal Generator, 9 kHz - 3.2 GHz
Enlarge Image
Request Quote Print Page
Manual

The HP / Agilent 8648C Synthesized RF Signal Generator, with a 9 kHz to 3.2 GHz bandwidth that is ideal for manufacturing high-volume products such as cordless telephones, pagers and two-way radios.The Agilent / HP 8648C is designed for semi-automated receiver test, and a variety of general purpose applications


The HP / Agilent 8648C 9 kHz to 3.2 GHz Synthesized RF Signal Generator starts with the basic capabilities of the Agilent 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 3.2 GHz. to any test procedure.



Specifications:

Frequency 100 kHz to 3200 MHz
Resolution 0.001 Hz with a 10 Hz Display
Switching Speed (Typical) <1001MHz; <75ms; ≥1001MHz; <100ms
Accuracy (after one hour warm-up) Typically +3 x 106 x carrier frequency in Hz, +0.15 x 106 x carrier frequency in Hz for option 1E5 (typically +0.072 x 106 x fc)
Aging Standard Timebase
< +2 ppm/yr
Option 1E5
< +0.1 ppm/yr
< +0.005ppm/day
Temperature Standard Timebase
< +1 ppm
Option 1E5
<+0.001ppm
Output 10 MHz, typically >0.5Vrms into 50 ohms
