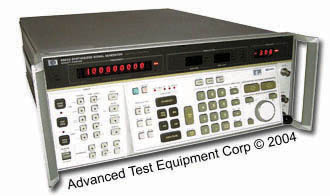

HP Agilent 8663A Signal Generator, 2.5 GHz

HP/Agilent 8663A High-Performance Signal Generator, 2.5 GHz
Enlarge Image
Request Quote Print Page
Manual

The HP 8663A signal generator is an extremely low phase noise signal source, incorporation signal generator modulation capabilities and output characteristics. The 8663A also offers increased frequency range to 2560 MHz, increased output level to +16 dBm, and the addition of phase and pulse modulation while maintaining spectral purity.




Features:


Frequency Range: 100 kHz to 2560 MHz
Resolution:
     0.1 Hz (f < 640 MHz)
     0.2 Hz (640 MHz to 12780 MHz)
     0.4 Hz (f ≥ 1280 MHz)


Output: Level Range: +16 dBm to -129.9 dBm
Resolution: 0.1 dB
SWR: <1.5
