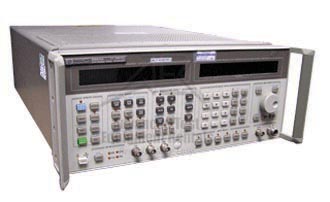

Keysight 8664A High Performance Signal Generator

Discontinued

The Keysight 8664A signal generator is suited for basic receiver testing up to 3.0 GHz.Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications.

With Option 004 (low-noise enhancement), the 8664A can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important.
Radar testing can be done by adding Option 008 (pulse modulation).

Product Info Related Products

100kHz - 3GHz
Low SSB phase noise (Option 004)
AM and wideband FM
High performance pulse modulation (Option 008)
Ultra low leakage (Option 010)

3 GHz:

RF communications
Out-of-channel receiver testing:	Ideal for receivers with ≥90 dB selectivity with Option 004, and/or spurious immunity of <85 dB to 3 GHz
General purpose	Wideband FM with rates to 6 MHz for simulation of many new digital systems
Component Test
Ideal clock source with low phase jitter for high speed digital components
Radar/EW testing
Optional pulse modulation with internal delay and width adjust
Avionics
Coverage of most weather and avionics radars, Option 008 provides pulse modulation capable of generating appropriate pulse width and delay internally

SKU: AGIL-8664A-PKG01
