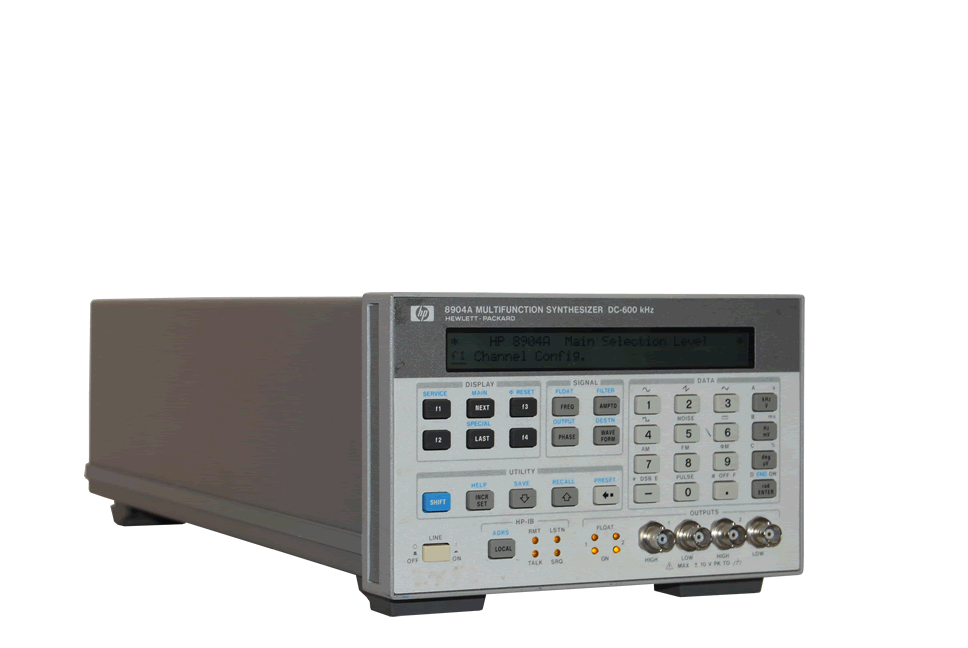

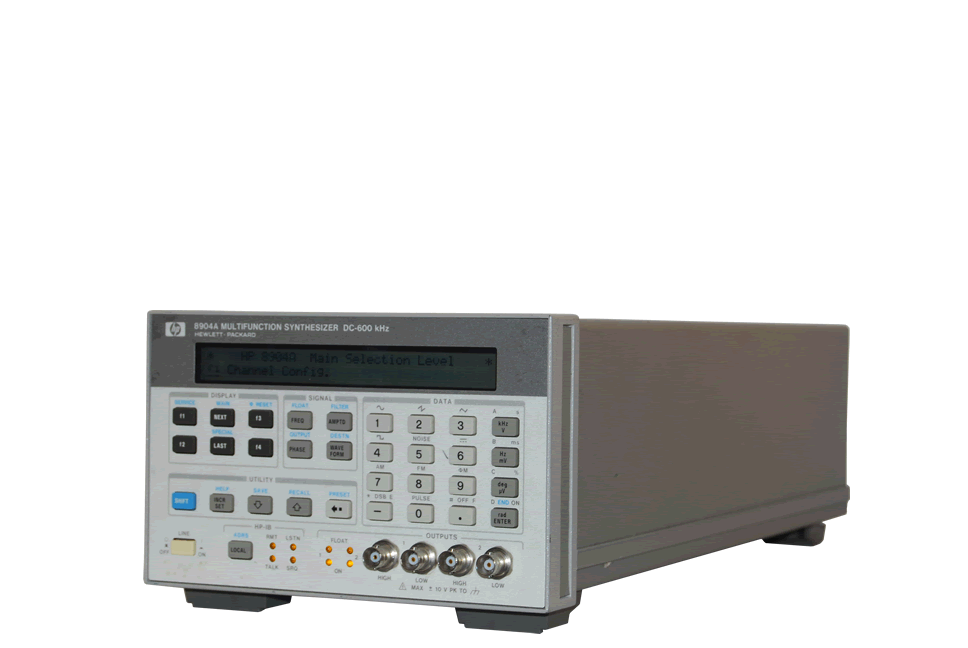

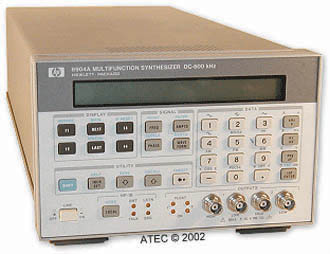

HP/Agilent 8904A Multifunction Synthesizer
Enlarge Image
HP/Agilent 8904A Multifunction Synthesizer HP/Agilent 8904A Multifunction Synthesizer
Keysight 8904A
Request Quote Print Page
8904A Datasheet Specifications
The Keysight 8904A multifunction synthesizer generates accurate sinewaves from 0 Hz to 600 kHz with 0.1 Hz resolution. The 8904A also has five other standard functions: square, triangle, ramp, from 0 Hz to 50 kHz plus dc, and Gaussian white noise. All waveform values in the 8904A are digitally calculated in real time by Keysight Technologies Digital Waveform Synthesis IC yielding 12-bit digital accuracy. Full GPIB programmability is also included standard on the 8904A.
  • 001: Adds 3 internal channels, channel A modulation, channel summation, and channel A sequence capability
  • 002: Adds second internal synthesizer and 50 ohm output
  • 003: Adds fast hop and digital modulation
  • 004: Moves outputs to rear panel (not available with 005 or 006)
  • 005: Adds unit to unit phase synchronization
  • 006: Changes output 1 from a 50-ohm output to a transformer coupled, 600 ohm balanced output
Keysight 8904A Features
  • Sine wave to 600 kHz, square, ramp, triangle to 50 kHz
  • 12 bit direct digital synthesis
  • Tone, DTMF, digital, Hop Ram sequence modes
  • One or two outputs
  • One to four internal channels
  • AM, FM, Phi-M, DSBSC, and pulse modulation
  • Unit to unit phase synchronization
