Picotest G5100AGC Arbitrary Function/Waveform Generator

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

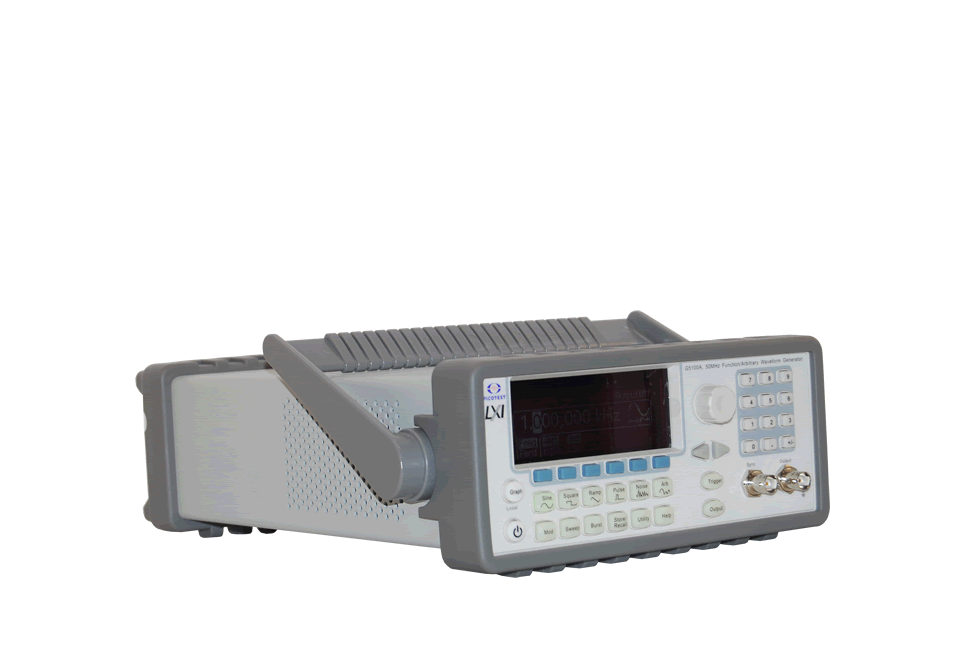

Picotest G5100AGC Arbitrary Function/Waveform Generator Larger

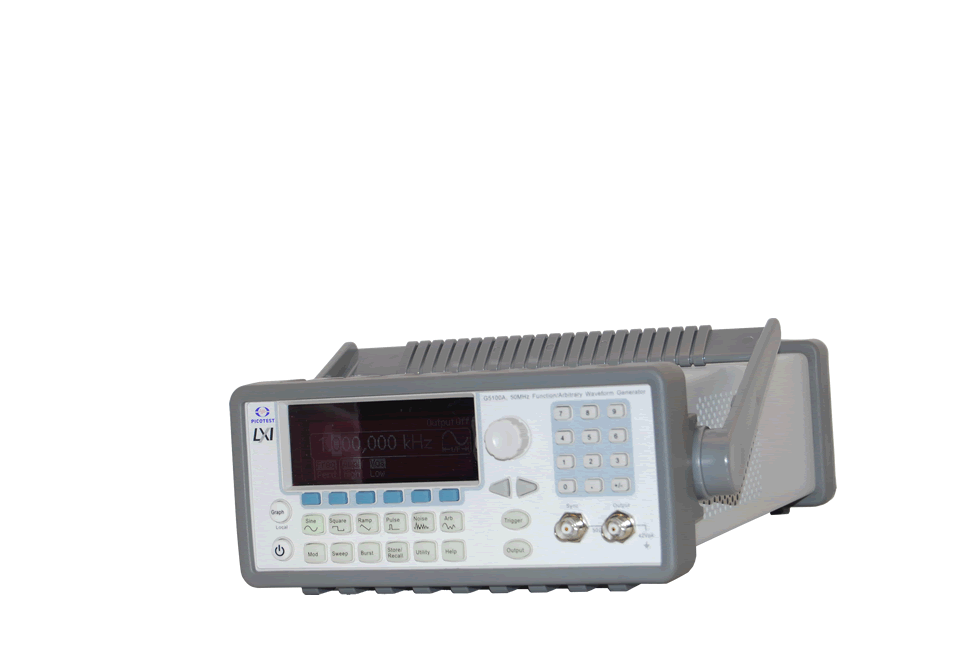

Picotest G5100AGC Arbitrary Function/Waveform Generator
Picotest G5100AGC Arbitrary Function/Waveform Generator
Categories
  • Function Generators
    Function Generators
Documents
  • Datasheet
  • Manual
  • Print
  • Email

The Picotest LXI Class C compatible 50MHz Function / Arbitrary Waveform Generator offers an exceptional frequency range, speed of rise and fall, and memory capacity (16 bit digital pattern generator). With 10MHz synchronization, linear & log sweep modes, burst mode, AM, FM, PM (PSK), FSK and PWM modulation, Picotest's G5100A is a versatile rental. It also includes remote control using LAN, USB, and GPIB. This unit generates 10 MHz arbitrary, 25 MHz square, and 50 MHz sine waveforms as well as pulse, ramp, triangle, noise, and DC waveforms.


This waveform generator uses digital synthesis techniques, producing clean waveforms with minimal distortion and a stable and accurate output. The interface panel provides quick and simple menu structure. Up to four waveforms can be stored.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Controls use optically coupled knobs
  • Standard Waveforms: Sine, Square, Ramp, Pulse, Noise, DC
  • Built-in Arbitrary: exponential rise/fall, Negative Ramp, Sin (x)/x, Cardiac
  • Sine Frequency: up to 50 MHz
  • Ramp Triangle Frequency: up to 20kHz
  • Square Frequency: up to 25MHz
  • Pulse Frequency: up to 10 MHz
  • Pulse Width (period <10s): 20ns minimum, 10ns resolution
  • Noise Bandwidth: 20 MHz typical
  • Arbitrary Frequency: up to 10 MHz
  • Waveform length: 256K points max.
  • Vertical Resolution: 14 bits (including sign)
  • Sample Rate: 125 MS/s
  • Interface: USB, LAN, GPIB

Easy-To-Use Functions:
  • Internal modulations of AM, FM, PM (PSK), FSK & PWM for waveform adjustment
  • Built-in linear and logarithmic sweeps from 1ms to 500s
  • The burst mode has a selectable number of cycles per period of time
  • Uses remote control via USB, LAN and GPIB interface
  • Programmability by SCPI commands under the remote control connection
  • Precise phase adjustments and calibrations can be done from the front panel or via a PC
  • Automatically set input voltages or manually input values in Vpp, Vrms, dBm or high & low levels
  • Timing parameters can be entered in Hertz (Hz) or second
Specifications
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

Keysight 81110A Pulse Pattern Generator, 165/330 MHz
Keysight 81110A Pulse Pattern Generator, 165/330 MHz
Keysight 3326A Function Generator, DC to 13 MHz
Keysight 3326A Function Generator, DC to 13 MHz
Wavetek 680 Multifunction System
Wavetek 680 Multifunction System
Stanford Research Systems DG535 Digital Delay/Pulse Generator 4 Ch
Stanford Research Systems DG535 Digital Delay/Pulse Generator 4 Ch
AE Techron 3110 Standards Waveform Generator
AE Techron 3110 Standards Waveform Generator
EM Test Autowave Arbitrary Generator
EM Test Autowave Arbitrary Generator
Keysight 33120A Function/Arbitrary Waveform Generator, 15MHz
Keysight 33120A Function/Arbitrary Waveform Generator, 15MHz
33220A Function Waveform Generator, 20 MHz
Keysight 33220A Function / Arbitrary Waveform Generator, 20 MHz
33250A Function / Arbitrary Waveform Generator, 80 MHz
Keysight 33250A Function / Arbitrary Waveform Generator
33600A Series Trueform Waveform Generators
Keysight 33600A Series Trueform Waveform Generators
33622A Waveform Generator, 120 MHz, 2-Channel
Keysight 33622A Waveform Generator, 120 MHz, 2-Channel
Keysight 81180A Arbitrary Waveform Generator 4.2 GSa/s
Keysight 81180A Arbitrary Waveform Generator 4.2 GSa/s
Keysight M8190A 12 GSa/s Arbitrary Waveform Generator
Keysight M8190A 12 GSa/s Arbitrary Waveform Generator
LeCroy WaveStation 3082 Waveform Generator
LeCroy WaveStation 3082 Waveform Generator
Rohde & Schwarz Stanford DS360 Function Generator
Rohde & Schwarz Stanford DS360 Function Generator
Tektronix AFG1022 Arbitrary Function Generator
Tektronix AFG1022 Arbitrary Function Generator
Tektronix AFG2020 Arbitrary Function Generator
Tektronix AFG2020 Arbitrary Function Generator
Tektronix AFG3102 Arbitrary Function Generator, 100 MHz, 2 Ch
Tektronix AFG3102 Arbitrary Function Generator, 100 MHz, 2 Ch
Tektronix AFG3152C
Tektronix AFG3152C Arbitrary Function Generator
Tektronix AFG3252C Arbitrary/Function Generator
Tektronix AFG3252C Arbitrary/Function Generator
Tektronix AWG2021 Arbitrary Waveform Generator 250 MS/s
Tektronix AWG2021 Arbitrary Waveform Generator 250 MS/s
Tektronix AWG2041 Arbitrary Waveform Generator, 1 kHz - 500 MHz
Tektronix AWG2041 Arbitrary Waveform Generator, 1 kHz - 500 MHz
Tektronix AWG5004 Arbitrary Waveform Generator
Tektronix AWG5004 Arbitrary Waveform Generator
Tektronix AWG5012 Arbitrary Waveform Generator
Tektronix AWG5012 Arbitrary Waveform Generator
Tektronix AWG5200 Series
Tektronix AWG5200 Series Arbitrary Waveform Generators
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
