Keysight 33120A Function/Arbitrary Waveform Generator, 15MHz

Rent HP Agilent 33120A Function/Arbitrary Waveform Generator, 15MHz
Enlarge Image
Rent HP Agilent 33120A Function/Arbitrary Waveform Generator, 15MHz Rent HP Agilent 33120A Function/Arbitrary Waveform Generator, 15MHz Rent HP Agilent 33120A Function/Arbitrary Waveform Generator, 15MHz
Keysight 33120A
Request Quote Print Page
Manual Datasheet Accessory Kit Other1

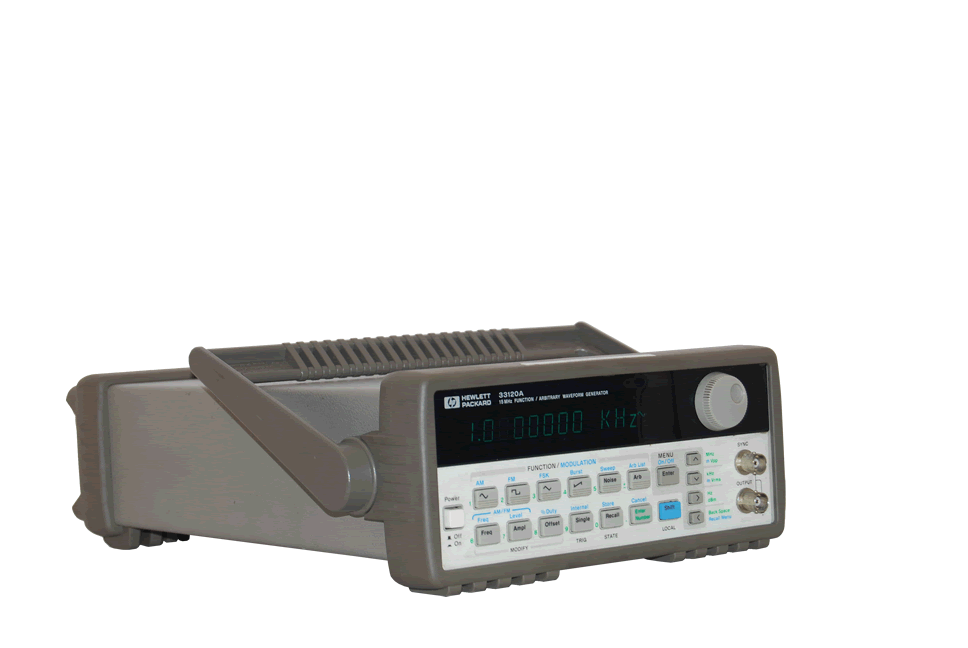

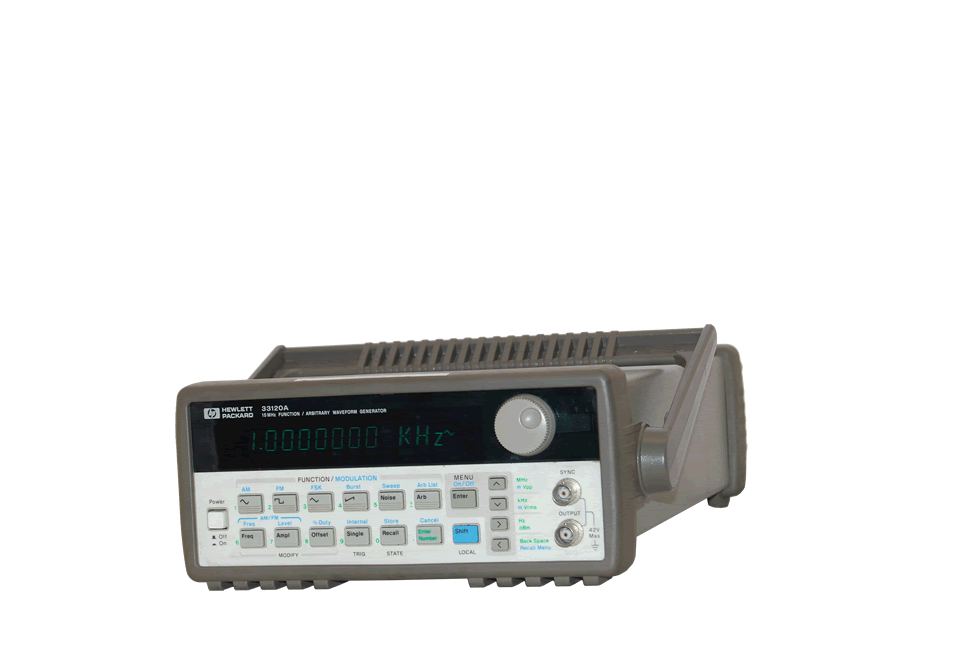

The Keysight 33120A Function/Arbitrary Waveform Generator, 15MHz uses direct digital-synthesis techniques to create a stable, accurate output signal for clean, low-distortion sine waves. It also gives you fast rise and fall-time square wave, and linear ramp waveforms down to 100 μHz.



Features:

  • 15 MHz sine and square wave outputs
  • Sine, triangle, square, ramp, noise and more
  • 12-bit, 40MSa/s, 16,000-point deep arbitrary waveforms
  • Direct digital synthesis for excellent stability
  • Waveforms: Sine, square, triangle, ramp, noise, sin(x)/x, exponential rise exponential fall, cardiac, dc volts
  • Arbitrary Waveform Length: 8 to 16,000 points
  • Amplitude Resolution: 12 bits (including sign)
  • Sample Rate: 40 MSa/a
  • Non-volatile Memory: Four 16,000 waveforms
  • Frequency Characteristics:
    • Sine: 100 µHz - 15 MHz
    • Square: 100 µHz - 15 MHz
    • Triangle: 100 µHz - 15 MHz
    • Ramp: 100 µHz - 15 MHz
    • White Noise: 100 µHz - 15 MHz
    • Resolution: 100 µHz - 15 MHz
  • Harmonic Distortion:
    • Dc to 20 kHz: -70 dBc
    • 20 kHz to 100 kHz: -60 dBc
    • 100 kHz to 1 MHz: -45 dBc
    • 1 MHz to 15 MHz: -35 dBc
  • Squarewave:
    • Rise/Fall Time: <20 ns
    • Duty Cycle: 20% to 80% (to 5 MHz), 40% to 60% (to 15 MHz)
  • Triangle, Ramp, Arbitrary Rise/Fall Time: <40 ns (typical)
  • Amplitude (into 50 ohm): 50 mVpp - 10 Vpp
  • Output Impedance: 50 ohm (fixed)
  • Offset (into 50 ohms): +5 Vpk ac + dc
  • Units: Vpp, Vrms, dBm
  • AM Modulation: Any internal waveform including Arbitrary
  • AM Frequency: 10 mHz - 20 kHz
  • FM Modulation: Any internal waveform including Arbitrary
  • FM Frequency: 10 mHz - 10 kHz
  • FSK Internal Rate: 10 mHz - 50 kHz
  • Burst:
    • Carrier Frequency: 5 MHz maximum
    • Count: 1 to 50,000 cycles or infinite
  • Sweep Type: Linear or Logarithmic
  • State Storage Memory: Power Off state automatically saved, 3 User Configurable Stored States
  • Interface: IEEE-488 and RS-232 standard
  • Language: SCPI - 1993, IEEE - 488.2
