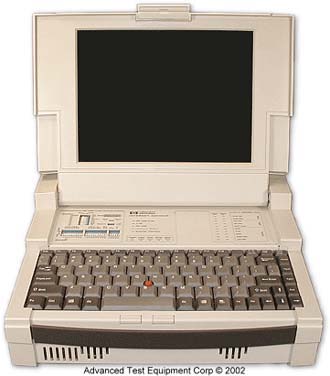

HP Agilent J2300D WAN Internet Advisor
Enlarge Image
Keysight J2300D
Request Quote Print Page
Manual Specifications Brochure
WAN Protocol Analyzer, 50b/s-622Mb/s, Built in Tests for LAN or WAN, Frame Relay and more
Keysight J2300D Features
  • Complete protocol analysis for WAN testing with a powerfull and rugged personal computer.
  • Monitor all major WAN communication protocols from 50 bps to 622 Mbps
  • Protocols: frame relay, ATM, ISDN, X.25, HDLC, SDLC, SNA, async PPP and encapsulated LAN protocols running over the wide area network
  • All major WAN interfaces built in: RS-232C / V.24, RS-449 / 422 / 423, V.10/V.11 and V.35 (some optional)
  • Full RS-232C/V.24 Breakout Box
  • Data Rates for All Monitoring Simulation and BERT: any speed from 50 b/s to 2.048 Mb/s
  • Data Analysis Memory: 768 KB capture buffer, 128 KB nonvolatile RAM and 1.44 MB floppy. In addition, circular store data to hard disk
  • Extensive Data Filtering Capability
  • Full Function Bit Error Rate Tests
  • Bit Error Rate Testing (BERT): simultaneously measure bit errors; block errors, errored seconds, and G.821 results; available time, errored seconds, degraded minutes, severely errored seconds, and unavailable time
  • Prewritten tests for major protocols including LAN traffic over WAN
  • Full Pentium Personal Computer with Window 98
    • 300 MHz processor
    • 3 GByte hard drive
    • 1.44 Mb floppy disk, pointing device, serial & parallel ports
    • Two PC card (Type I/II) slots for modem or NIC (network interface card)
    • 640 x 480 VGA 10.4" color active matrix display, ext. monitor monitor support


Side Plug-Ins
  • ISDN BRI and PRI, T1, DS-1 / E1, DS-3 / E3 and OC-3c / STM1.


  • LAN, Ethernet, switched Ethernet, Fast Ethernet, Gigabit Ethernet, FDDI and token-ring
