Keysight N6705C DC Power Analyzer
The Keysight N6705C DC Power Analyzer has a total power range of 400 to 1200 W and up to 4 outputs. The N6705C model features USB, LAN, and GPIB modern connections, providing flexible programming. This unit has <350 µVrms ripple and noise while offering a 0.025% +1.8 mV accuracy. The Keysight N6705C DC Power Analyzer can be used for R&D sourcing to measure DC voltage and current in the device under test.
| Ammeter accuracy | Up to 0.025% + 8 nA; up to 18 bits |
| Arbitrary waveform generator function | Bandwidth up to 100 kHz, output power up to 500 W |
| Data logger function | Measurement interval from 20 µs to 60 seconds, with a maximum of 500 M readings per second |
| Scope function | Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits |
| Voltmeter accuracy | Up to 0.025% + 50 µV; up to 18 bits |
| Number of outputs | Up to 4 |
| Total power | 400 to 1200 W |
| Ripple and noise | <350 µVrms |
| Accuracy | 0.025% +1.8 mV |

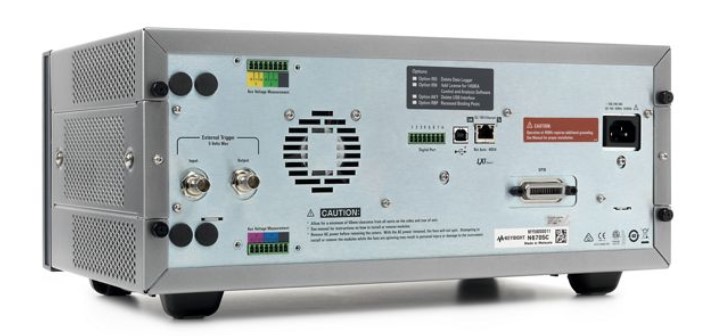

| Modern connectivity | USB, LAN, and GPIB |
- 4-slot mainframe holds up to 600 W of total power and up to 4 modules
- More than 30 DC power modules to choose from
- Productivity gains for sourcing and measuring DC voltage and current into the device under test (DUT)
- Eliminates the need to develop and debug programs to control a collection of instruments
- View complex data with a large color graphics display
- Get flexible programming using GPIB, LAN, USB; LXI compliant
- Offers custom configurations to meet your power sourcing and analysis requirements
SKU: KEYS-N6705C
