Model |

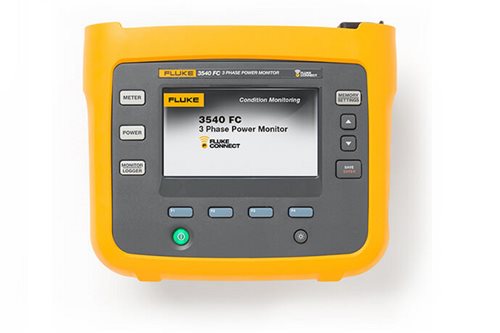

3540 FC |
Voltage inputs |
Number of inputs: 4 (3 phases and neutral)
Maximum input voltage: 1,000 Vrms (1,700 Vpk) phase to neutral
Bandwidth: 42.5 Hz to 3.5 kHz
Scaling: 1:1, variable |
Current inputs |
Number of inputs: 3, mode selected automatically for attached sensor
Bandwidth (-3 dB): 42.5 Hz to 3.5 kHz |
Resolution |
16-bit synchronous sampling |
Sampling frequency |
10.24 kHz at 50/60 Hz, synchronized to mains frequency |
Power consumption |
Maximum 50 VA (max. 15 VA when powered using IEC 60320 input) |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Storage temperature |
<20°C to +60°C (-4°C to +140°F)
With battery: -20°C to +50°C (-4°F to +122°F) |
IP rating |
IEC 60529: IP50, in connected condition with protection caps in place |
Display |
Color LCD
4.3-inch active matrix color TFT
480 pixels x 272 pixels, resistive touch panel |
Main unit dimensions |
19.8 cm x 16.7 cm x 5.5 cm (7.8 in x 6.6 in x 2.2 in) |
Main unit weight |
1.1kg (2.5 lb.) |
