Keysight N9322C Basic Spectrum Analyzer (BSA), 9 kHz to 7 GHz

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Keysight N9322C Basic Spectrum Analyzer (BSA), 9 kHz to 7 GHz
Enlarge Image

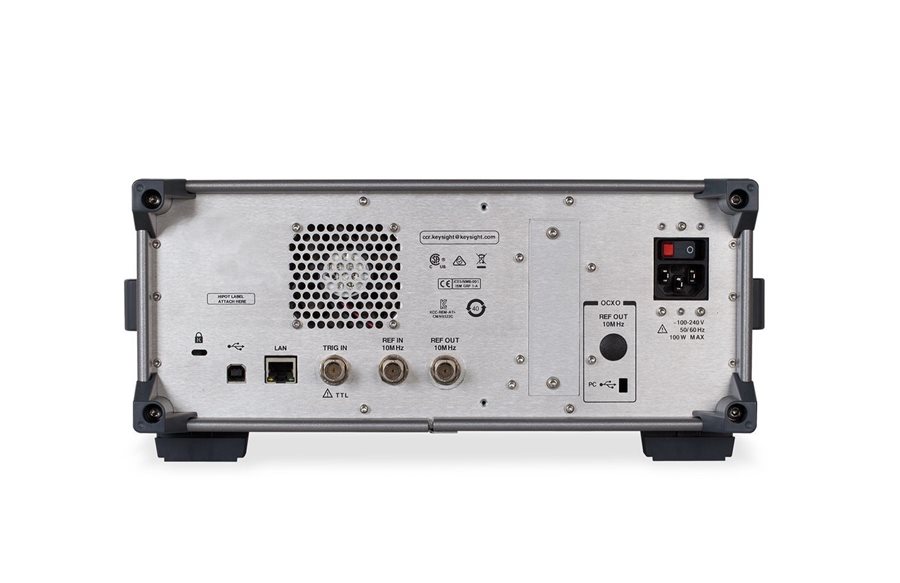

Keysight N9322C
Request Quote Print Page
N9322C Datasheet
9 kHz to 7 GHz Basic Spectrum Analyzer (BSA)
Keysight N9322C Features
  • See the real performance of your design with wider (to 1 GHz), deeper views of the most challenging signals
  • Measure the spectral purity of your design with industry-leading phase noise and 78 dBc spurious-free dynamic range across 510 MHz bandwidth
  • Extend RF input frequency up to 110 GHz with Keysight smart mixers; to THz with 3rd party solutions
  • Capture intermittent signals with gap-free real-time spectrum analysis
  • Capture lower-level spurious signals with an improved DANL low noise path
Keysight N9322C Specs
Frequency: n/a
Frequency Options: n/a
Maximum Analysis Bandwidth: 1 MHz
Bandwidth Options: 1 MHz
DANL @1 GHz: -152 dBm
Phase Noise @1 GHz (10 kHz offset): -90 dBc/Hz
Phase Noise @1 GHz (30 kHz offset): n/a
Phase Noise @1 GHz (1 MHz offset): -115 dBc/Hz
Overall Amplitude Accuracy: ±0.6 dB
TOI @1 GHz (3rd Order Intercept): +15 dBm
Maximum Dynamic Range 3rd Order @1 GHz: 83 dB
Applications-General Purpose:
  • AM/FM Tune and Listen
  • Analog Demodulation
  • Cable Fault Location
  • Cable and Antenna Analysis
  • Field Strength Measurement
  • SCPI Code Compatibility
  • Spectral Emissions Mask
  • Spectrogram
  • Stimulus Response
  • ASK/FSK demodulation
  • EMI interference analysis
Applications-Cellular: n/a
Applications-Wireless Connectivity: n/a
Applications-Digital Video: n/a
Performance Level: ◆◇◇◇◇◇
Standard Attenuator Range: 50 dB
Standard Attenuator Step: 1 dB
  • RF Burst
  • External
  • Video
Applications Available: Yes
Real-Time: No
Benchtop: Yes
