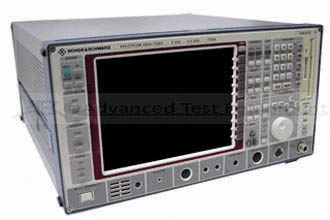

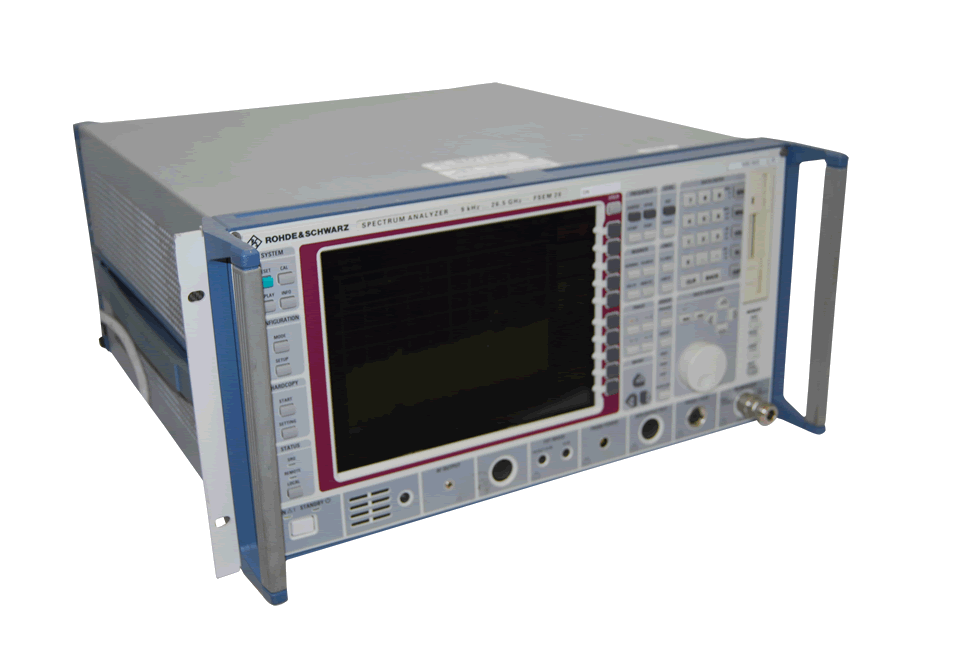

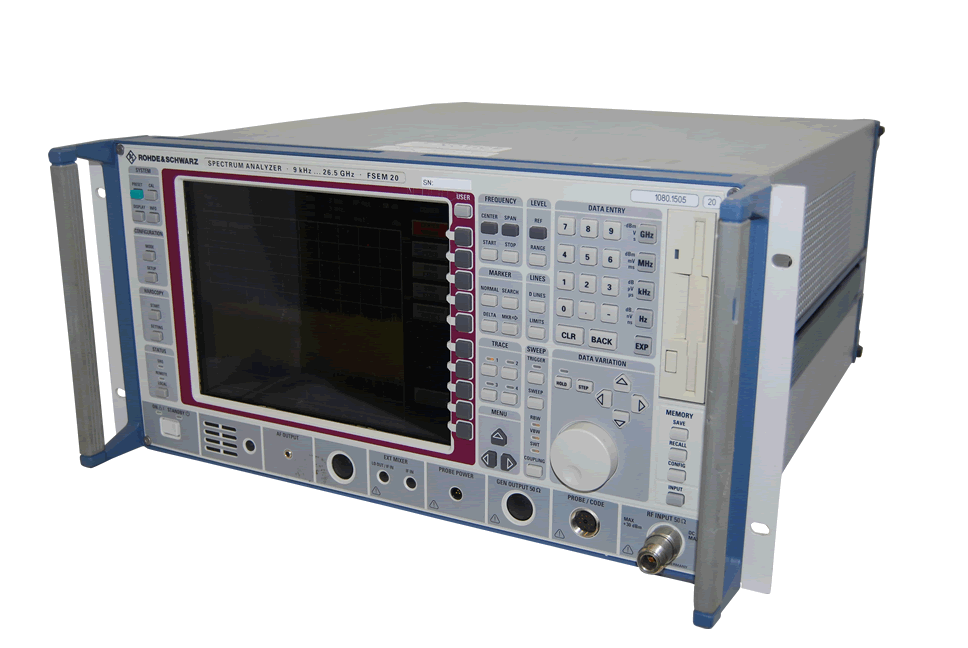

Rohde & Schwarz FSEM20 9 kHz to 26.5 GHz Spectrum Analyzer

Rohde & Schwarz FSEM20-B7 Spectrum Analyzer, 9 kHz - 26.5 GHz
Enlarge Image
Rohde & Schwarz FSEM20-B7 Spectrum Analyzer, 9 kHz - 26.5 GHz Rohde & Schwarz FSEM20-B7 Spectrum Analyzer, 9 kHz - 26.5 GHz
Rohde & Schwarz FSEM20
Request Quote Print Page
Datasheet

The Rohde & Schwarz FSEM20 9 kHz to 26.5 GHz, is an advanced, high-speed and high-performance analyzer tailored to the requirements of modern digital communication systems. It can also be used as a general-purpose analyzer for many applications. High measurement speed, modular design and excellent technical features make for an excellent price/performance ratio. In addition to measurement functions for digital communication systems, such as 2 ms sweep time in ZERO SPAN mode, pretrigger and trigger delay, gated sweep and adjacent channel power measurement, this spectrum analyzer features a wide dynamic range, a very low measurement uncertainty of 1 dB and a low noise synthesizer.


Options:
7 GHz Frequency Extension for FSEA FSE-B2
TV Demodulator FSE-B3
Low Phase Noise and OCXO (for models 20) FSE-B4
FFT Filter 1 Hz to 1 kHz (for models .20) FSE-B5
Vector Signal Analyzer FSE-B7
Tracking Generator 3.5 GHz FSE-B8
Tracking Generator 3.5 GHz with I/Q Modulator FSE-B9
Tracking Generator 7 GHz FSE-B10
Tracking Generator 7 GHz with I/Q Modulator FSE-B11
Switchable Attenuator for Tracking Generator FSE-B12
Controller for FSE (mouse and keyboard included) FSE-B15
Ethernet Interface 15-contact AUI connector FSE-B161
Ethernet Interface Thin-wire BNC connector FSE-B161
2nd IEC/IEEE-Bus Interface for FSE FSE-B171
Removable Hard Disk FSE-B182
Second Hard Disk for FSE-B18 (firmware included) FSE-B19
External Mixer FSE-B212
Increased Level Accuracy up to 2 GHz FSE-B222
Broadband Output 741.4 MHz FSE-B232

1) Options FSE-B16 and FSE-B17 require option FSE-B15.
2) Cannot be retrofitted, factory-fitted only.


Rohde & Schwarz FSEM20 Features
  • Spectrum Analysis with Ultra-wide Dynamic Range, 9 kHz to 26.5 GHz
  • Universal Analysis of Digital and Analog Modulated Signals (option)
  • BPSK, QPSK, pi/4-DQPSK, QAM, MSK, GMSK, AM, FM, PM
  • One Button Demodulation for Communication Standard NADC, GSM, EDQE, Others
  • High-speed Synthesizer
  • 5 ms for Full Span (FSEA, FSEB)
  • Refresh Rate, Quasi-analog
  • 25 Sweeps/s
  • Large LC TFT Display - 24 cm/9.5 in., Active
  • Future-proof Modular Design
  • Customized Solutions Through Wide Variety of Options
