Tektronix ST112 SONET Test Set

Used Sales Price: $3500

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery

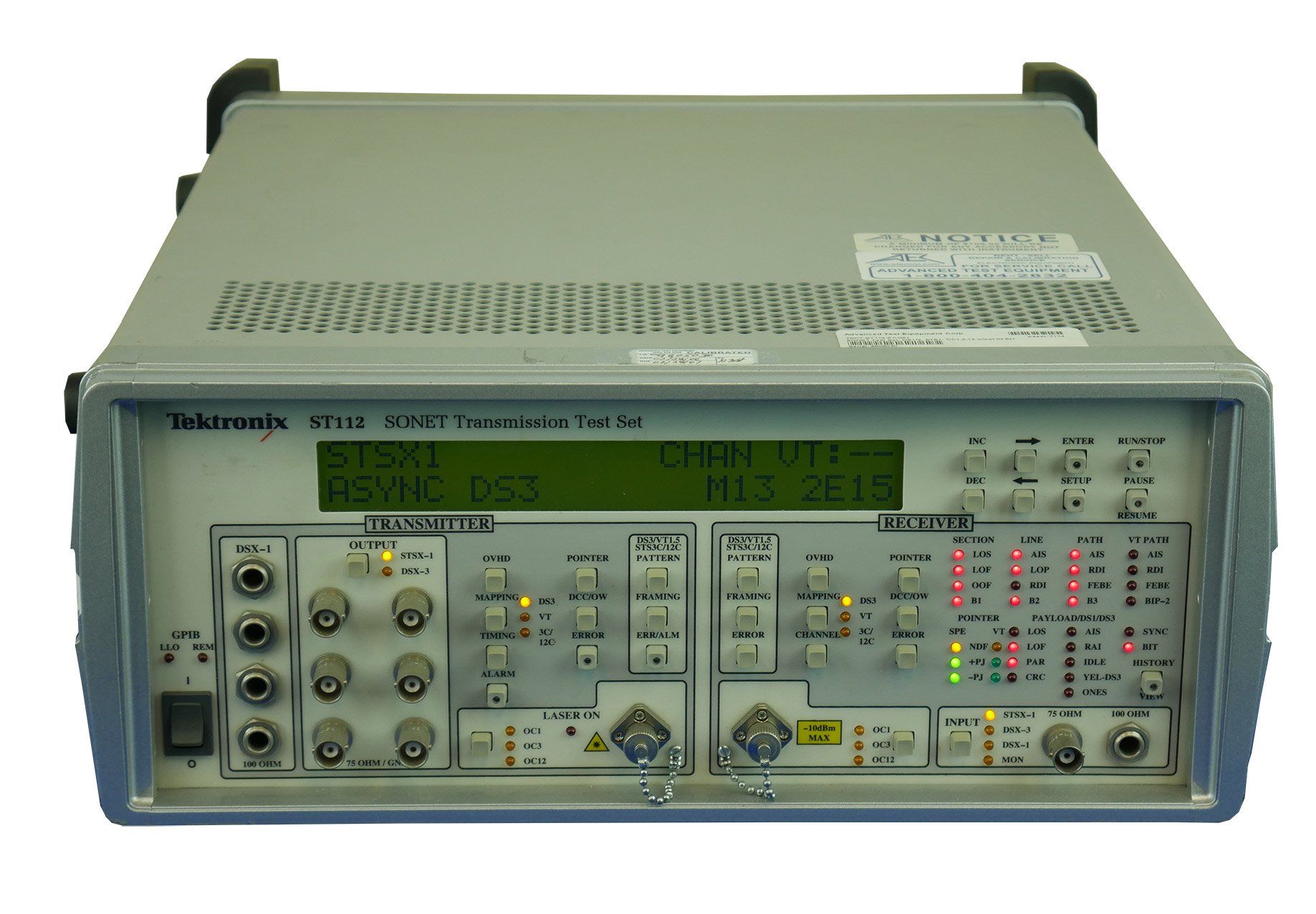

Tektronix ST112 SONET Test Set
Enlarge Image
Tektronix Test Equipment ST112
Request Quote Print Page
ST112 Datasheet
The ST112's SONET capabilities include not only optical carrier generation, but also STS-3c/12c, DS3 and VT1.5 payload generation. Additional features include:

  • VT Channel Scan for testing VT mappings
  • Event sync (Opt. 07) provides output signals for deriving switch timing or propagation delay from alarm conditions
  • Byte synchronous payload mapping for next generation DLC testing
  • Full error and alarm generation

The ST112 Receiver analyzes the incoming optical signal and displays performance-monitoring information for the optical signal and payloads.

Tektronix Test Equipment ST112 Features
  • OC-1/3/3c/12/12c Framing and Payload per Bellcore and ANSI Specifications
  • Complete Overhead and Bit Error Rate Testing (BERT)
  • Extended Control and Measurement Display via VT100 and RS-232 Support
  • STS-3c/12c, DS3 and VT1.5 Payload Mappings
  • User-upgradeable Software
  • Unique VT1.5 Channel Scan and SONET Trouble Scan
  • Standalone DS1/3 Test Capability
  • Six DSX-3 or Six STSX-1 and Four DSX-1 Outputs
  • Quick Setup for Automatic Configuration of Standard Test Modes
  • AutoSeek (Automatic Detection of Receive Signal) and AutoLink (Receiver Follows Transmitter)
  • Full SPE and VT Pointer Control
  • Multiple Electrical Outputs for Four DS1, Six DS3/STSX-1
  • Access to All SONET Overhead Bytes
  • Data Communications Channel (DCC) Add/Drop
  • Multiple Simultaneous Timed Alarms and Errors (for Software Regression Testing and Other Applications)
Tektronix Test Equipment ST112 Applications
  • SONET Network Element Testing
  • Loopback Testing
  • End-to-End Testing and Monitoring
  • Path Provisioning and Performance Monitoring
  • Software Regression Testing
